Sourcemaker Hybrid LED Blanket Package

User Manual for Sourcemaker Hybrid LED Blanket Package

• Product category: LED Lights Sourcemaker
• Brand: Sourcemaker
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sourcemaker LED Lights

Product description

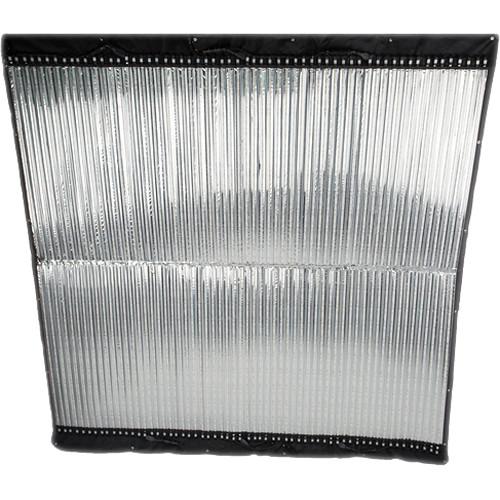

• Hybrid LED Blanket (8 x 8') Featuring a flexible, lightweight, roll-up design, the 8 x 8' Hybrid LED Blanket from Sourcemaker is a unique light source that uses multiple LED ribbons to generate its output. The fixture is capable of variable color temperature from 2675 to 6010K to meet any ambient light challenge, match other light sources, or maximize creative expression. It's also fully dimmable with separate purchase of a dimmer and power supply. The blanket has a modular design and can be attached to other units and controlled via an optional DMX decoder. Additionally, with the included harness, each strip can be used separately from the blanket as an individual light source.
  Benefits
  • Cinema quality LEDs (95+ CRI)
  • Fast all-in-one-setup
  • Can combine multiple blankets
  • Sealed and secured individual ribbon strips
  • Swap colors in the same blanket fixture
  • Lightweight, roll-up design
  • Grommets and touch-fastener system to mount anywhere
  • Easy to ship and store; can fit in most carry-on luggage
  • Optimized for optional Sourcemaker dimming products
  UPC: 746477845927
• Dimcase Dimming LED Controller Built into a hard rolling case with a telescoping handle, the Dimcase Dimming LED Controller from Sourcemaker is designed to power and control all RGB and Hybrid LED ribbon and blanket products. The Dimcase is ready for worldwide use via its integrated 100 to 240 VAC power supply, and can make light intensity adjustments from 0 to 100% locally on the unit or remotely from a console with onboard DMX. The 100A capacity, 16-channel unit can control one 8 x 8', two 4 x 8', four 4 x 4', or eight 2 x 4' LED blankets independently. UPC: 746477845958

• Harness

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Hybrid LED Blanket (8 x 8')

  Color Temperature	2675 to 6010K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes
  Display	None
  Photometrics	1188.1 fc / 12,789 lux at 3' / 0.91 m
  Number of LEDs	14400
  Fixture Dimensions	92.0 x 91.0 x 1.0" / 233.7 x 231.1 x 2.5 cm
  Fixture Weight	18 lb / 8.16 kg

  Battery Plate	None

  Fixture Mount	None
  Accessory Mount	None

  Power Source	AC Adapter
  Max Power Consumption	1840 W
  Power Pass-Thru	None

• Dimcase Dimming LED Controller

  Capacity	100 A, 16 channels x 6.25 A @ 24 V
  Compatibility	All RGB and Hybrid blankets
  DMX	Yes
  Voltage	100 - 240 VAC, 60/60 Hz
  Control Support	One 8 x 8', two 4 x 8', four 4 x 4', eight 2 x 4' LED blankets
