Product description

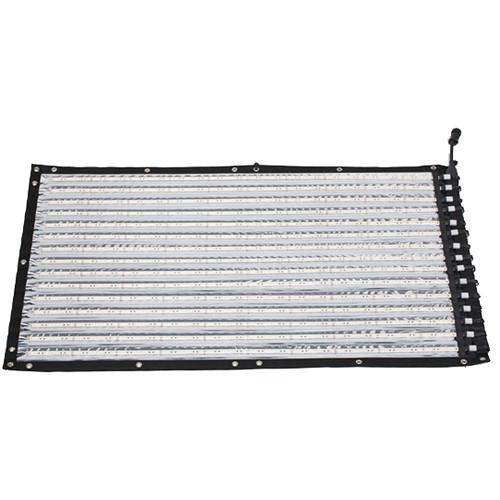

• RGBH LED Blanket (2 x 4') Featuring a flexible, lightweight, roll-up design, the 2 x 4' RGBH LED Blanket from Sourcemaker is a unique light source that uses multiple LED ribbons to generate its output. The fixture is capable of variable color temperature from 2675 to 6010K to meet any ambient light challenge, match other light sources, or maximize creative expression. It's also fully dimmable with the separate purchase of a dimmer and power supply. The blanket uses RGBH LEDs that provide a much wider color gamut than white LEDs, allowing the fixture to render literally millions of colors, permitting real-time changing of the color scheme in theaters, for instance. The RGBH LED Blanket has a modular design and can be attached to other units and controlled via an optional DMX decoder. Additionally, with the included harness, each strip can be used separately from the blanket as an individual light source.
  Benefits
  • Cinema quality LEDs (95+ CRI)
  • Fast all-in-one-setup
  • Can combine multiple blankets
  • Sealed and secured individual ribbon strips
  • Swap colors in the same blanket fixture
  • Lightweight, roll-up design
  • Battery system compatible
  • Grommets and touch-fastener system to mount anywhere
  • Easy to ship and store; can fit in most carry-on luggage
  • Optimized for optional Sourcemaker dimming products
  UPC: 746477846382
• 25A, 24V Modified Power Supply The 90 to 305 VAC 25A, 24V Modified Power Supply from Sourcemaker is designed to provide current for 4 x 4' or smaller LED Blankets, as well as up to 24' of 24V LED tape. It has been modified to be compatible with the Sourcemaker 30A 12/24V dimmer.
• 5 x 8 Decoder Designed for filmmaking, the 5 x 8 Decoder from Sourcemaker offers an adjustable dimming curve to match curves of other lights on set. The dimmer allows control of the PWM permitting high-speed shooting up to 30 kHz. Well-suited for single color, hybrid, RGB, or RGB+X LED ribbon, DMX channels or channel inputs are displayed on the unit.
  Benefits
  • Flicker-free with smooth low-end dimming
  • RDM function allows you to set DMX address using a console
  • Selectable PWM output resolution ratio of 8-bit or 16-bit
  • Set the PWM dimming frequency from 500 Hz - 30 kHz
  • Adjust the dimming curve gamma values from 0.1 - 9.9
  • DMX512/1990 using RJ45, XLR, or screw terminals
  • Set DMX address remotely or using LCD screen display
  UPC: 746477847167

• Harness

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RGBH LED Blanket (2 x 4')

  Color Temperature	2675 to 6010K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes
  Display	None
  Photometrics	369.9 fc / 3982 lux at 3' / 0.91 m
  Number of LEDs	1800
  Fixture Dimensions	24.8 x 43.0 x 1.0" / 62.9 x 109.2 x 2.5 cm
  Fixture Weight	2 lb / 0.91 kg

  Battery Plate	None

  Fixture Mount	None
  Accessory Mount	None

  Power Source	AC Adapter
  Max Power Consumption	230 W
  Power Pass-Thru	None

• 25A, 24V Modified Power Supply

  AC Input Power	90 to 305 VAC, 50 / 60 Hz
  Output Voltage	24 VDC
  Power Draw	600.00 W

  Output Connector	Anderson Connector
  IP Rating	IP65
  Certifications	RoHS, as per Manufacturer

• 5 x 8 Decoder

  Electrical	Input: 12 -24 VDC Max. Power: 480 W @ 12 V, 960 W @ 24 V Output: 40 A
  Control	5
  Frequency	500 Hz - 30 kHz
  DMX	DMX-512/1990 digital signal
  Connection	RJ45 and XLR interface
  Dimensions	6.5 x 2.9 x 1.5" / 16.5 x 7.4 x 3.8 cm
