Sourcemaker Tungsten 2X High Output LED

User Manual for Sourcemaker Tungsten 2X High Output LED Blanket Package

• Product category: LED Lights Sourcemaker
• Brand: Sourcemaker
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sourcemaker LED Lights

Product description

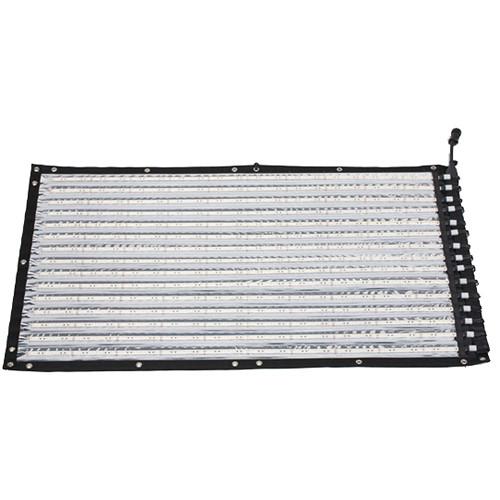

• Tungsten 2X High Output LED Blanket (2 x 4'') Featuring a flexible, lightweight, roll-up design, the 2 x 4' Tungsten 2X High Output LED Blanket from Sourcemaker is a unique light source that uses multiple LED ribbons to generate its output. The High Output designation indicates that this fixture has double the amount of LED ribbons that generate double the amount of power than the standard version. With a color temperature of 2675K, the fixture is a good choice for shooting indoors in warm ambient conditions or for matching other tungsten-balanced light sources. It's also fully dimmable with the separate purchase of a dimmer and power supply. The blanket has a modular design and can be attached to other units and controlled via an optional DMX decoder. Additionally, with the included harness, each strip can be used separately from the blanket as an individual light source.
  Benefits
  • Cinema quality LEDs (95+ CRI)
  • Twice as many LED strips as standard Tungsten LED blankets
  • Fast all-in-one-setup
  • Can combine multiple blankets
  • Sealed and secured individual ribbon strips
  • Swap colors in the same blanket fixture
  • Lightweight, roll-up design
  • Grommets and touch-fastener system to mount anywhere
  • Easy to ship and store; can fit in most carry-on luggage
  • Optimized for optional Sourcemaker dimming products
  UPC: 746477846412
• 25A, 24V Modified Power Supply The 90 to 305 VAC 25A, 24V Modified Power Supply from Sourcemaker is designed to provide current for 4 x 4' or smaller LED Blankets, as well as up to 24' of 24V LED tape. It has been modified to be compatible with the Sourcemaker 30A 12/24V dimmer.
• 30A Dimmer The flicker-free 30A Dimmer connects quickly to a Sourcemaker 24V power supply and provides 0 to 100% light intensity adjustments locally on the fixture or remotely via onboard DMX. The dimmer features an OLED digital display, independent daylight and tungsten adjustment, and silent operation. Several dimmers can be daisy-chained to control larger light sources. UPC: 746477847150

• Harness

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tungsten 2X High Output LED Blanket (2 x 4'')

  Color Temperature	2675K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes
  Display	None
  Photometrics	550.1 fc / 5922 lux at 3' / 0.91 m
  Number of LEDs	3600
  Fixture Dimensions	24.8 x 43.0 x 1.0" / 62.9 x 109.2 x 2.5 cm
  Fixture Weight	3.5 lb / 1.59 kg

  Battery Plate	None

  Fixture Mount	None
  Accessory Mount	None

  Power Source	AC Adapter
  Max Power Consumption	460 W
  Power Pass-Thru	None

• 25A, 24V Modified Power Supply

  AC Input Power	90 to 305 VAC, 50 / 60 Hz
  Output Voltage	24 VDC
  Power Draw	600.00 W

  Output Connector	Anderson Connector
  IP Rating	IP65
  Certifications	RoHS, as per Manufacturer

• 30A Dimmer

  Dimming	0 - 100%
  DMX	Yes
