Product description - The Soyuz SU 019 FET Microphone

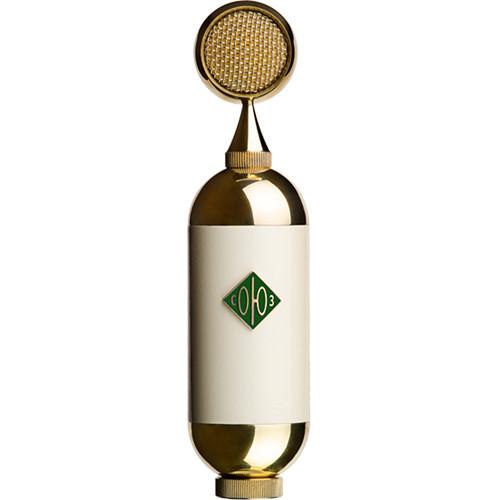

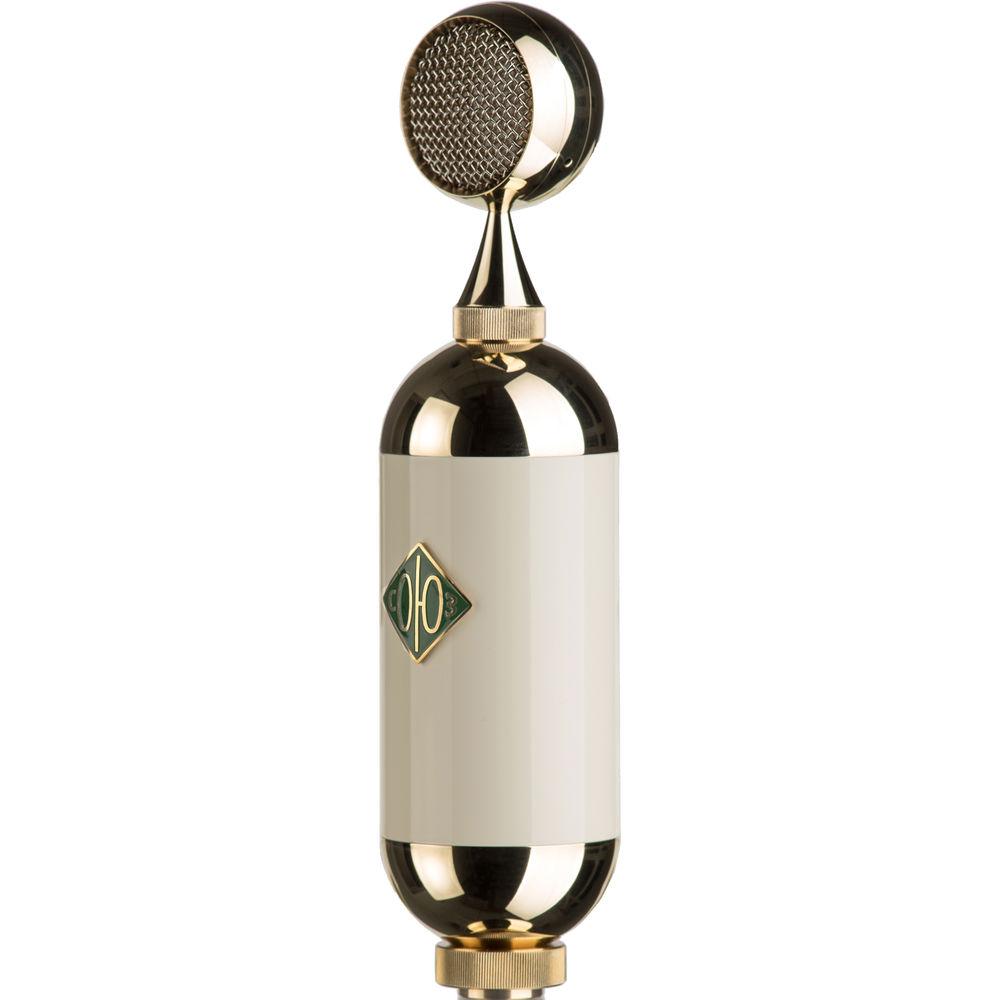

With a 1950s-style craftsmanship, Soyuz Microphones delivers the hand-crafted, vintage-style SU-019 Premium FET Condenser Mic. It is manufactured in-house using point-to-point soldering plus wire-wrap technology, giving you a transparent low-noise sound.
Featuring a gold-sputtered, hand-tuned, 1" inch diaphragm with a cardioid polar pattern, the SU-019 is a valuable tool for recording anything from vocals to orchestral masterpieces. Soyuz uses a FET with a K67-like diaphragm along with its proprietary toroidal transformer, giving you a transparent, low-noise signal that is capable of withstanding SPL levels up to 140 dB. Optional omnidirectional and figure-8 capsules are available and are easily swapped. The SU-019 has stacked polycarbonate discs with metal pins for a robust design, and ships with a wooden box and custom shockmount. - Capsule
-
- K67-style capsule
- Capsules made in-house by hand
- Vintage gold-sputtered machine used for capsule construction
- Transformer
-
- Toroidal transformers
- Low harmonic distortion for transparency
- Polycarbonate Discs
-

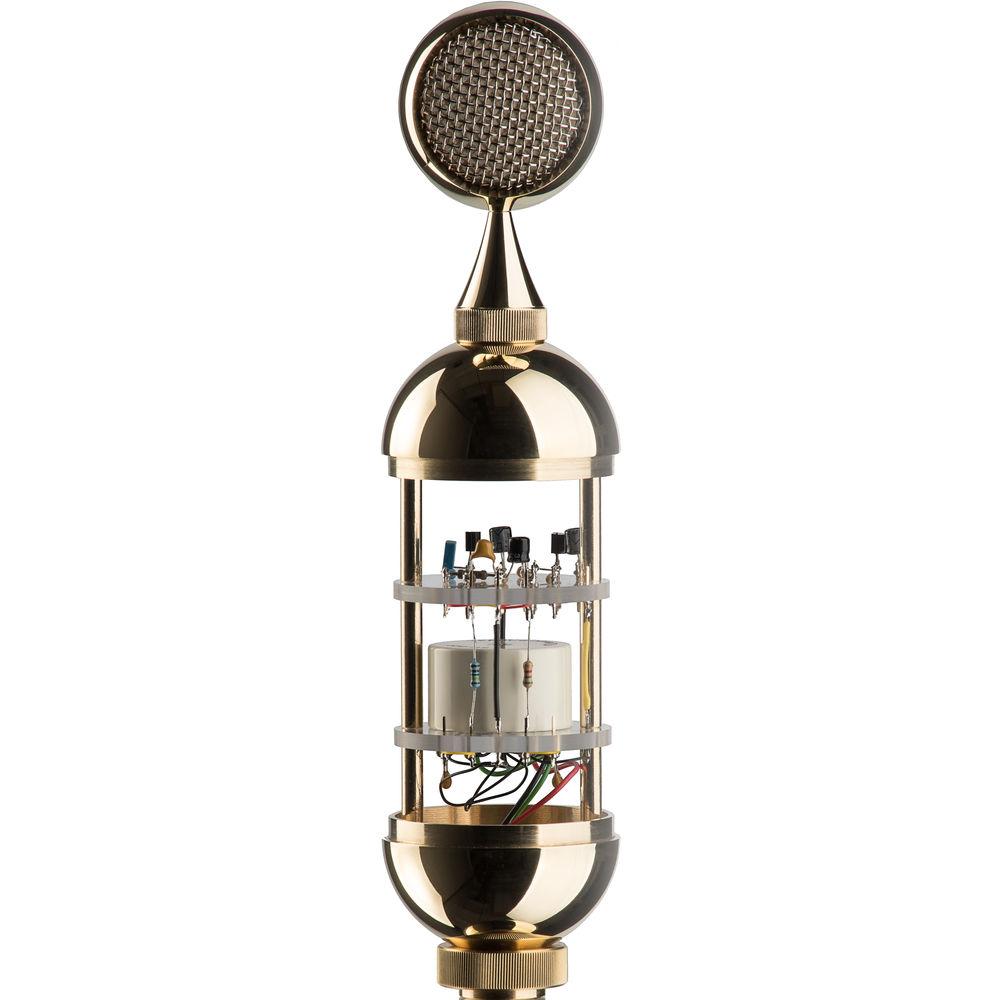

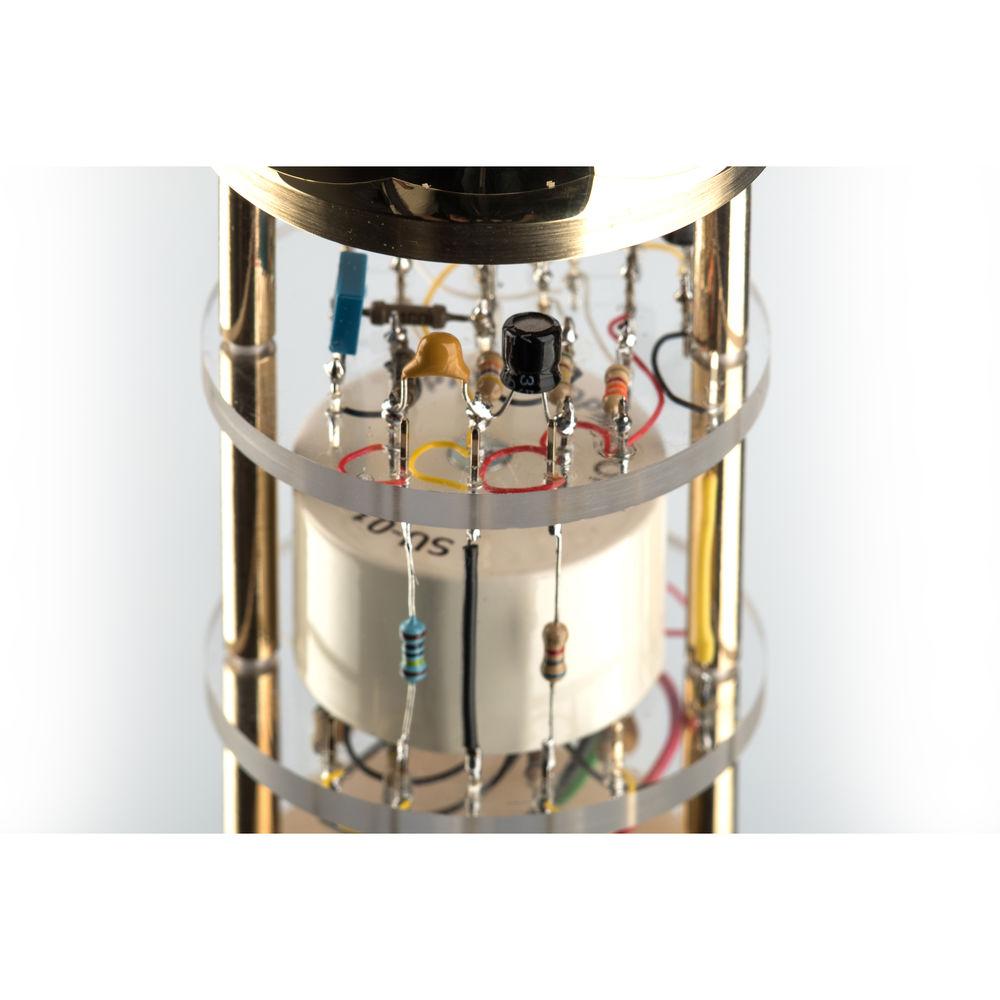

- Uses polycarbonate discs with metal pins instead of printed circuit boards
- Produced in-house
- High resistance prevents signal leakage and minimizes noise
- Point-to-Point and Wire Wrap
-
- Point-to-point wiring
- Wire wrap and solder technology gives a clean signal path
- Robust design
- SPL
-
- Handles SPL as high as 140 dB

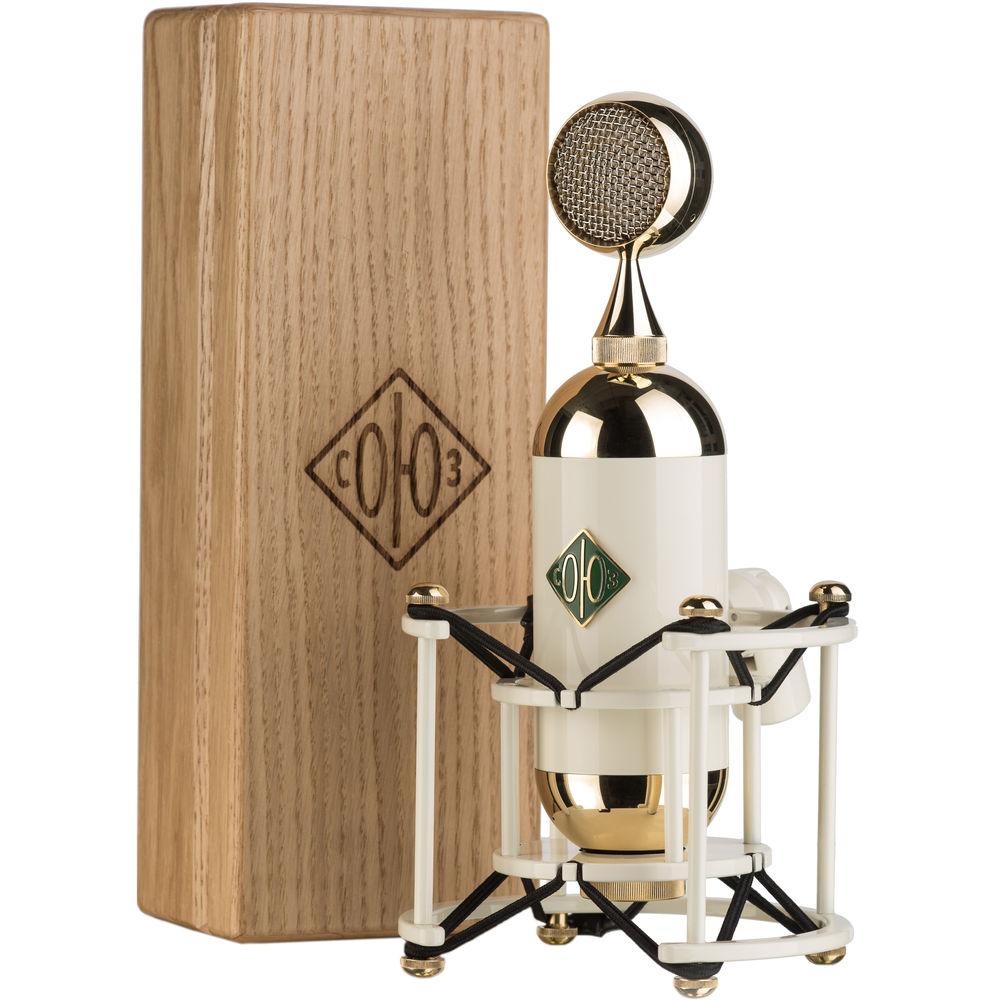

UPC: 868902000210 In the Box Soyuz Microphones SU-019 Large-Diaphragm FET Condenser Mic Custom Shockmount Wooden Box Limited 2-Year Warranty (Capsule) Limited 10-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soyuz Microphones SU-019 Large-Diaphragm FET Condenser Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoyuz Microphones SU-019 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient Pressure gradient and pressure operated because of changeable polar patterns. | | Transducer | Condenser | | Diaphragm | 1.3" / 33.02 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Sensitivity | 15 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 10.47" / 266 mm | | Diameter | 2.17" / 55 mm | | Weight | 2.05 lb / 930 g | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 14.2 x 13.5 x 5.9" |
