User Manual for Soyuz Microphones SU-023 Bomblet Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Soyuz Microphones SU-023 Bomblet Large-Diaphragm Condenser
- Product category: Large Diaphragm Condenser Soyuz Microphones
- Brand: Soyuz Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soyuz Microphones Large Diaphragm Condenser
 |
User manual for the Soyuz Microphones SU-023 Bomblet Large-Diaphragm Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soyuz Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soyuz Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soyuz Microphones product will considerably shorten its lifespan!
|

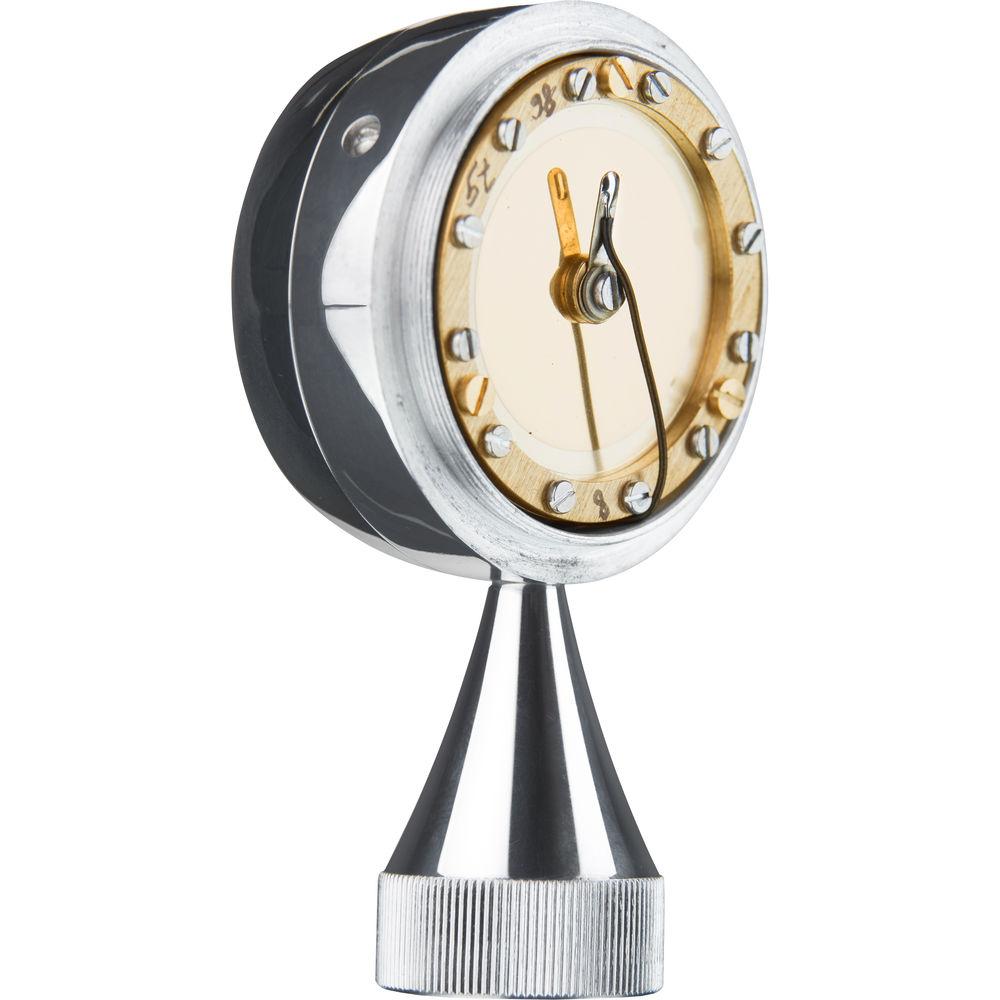

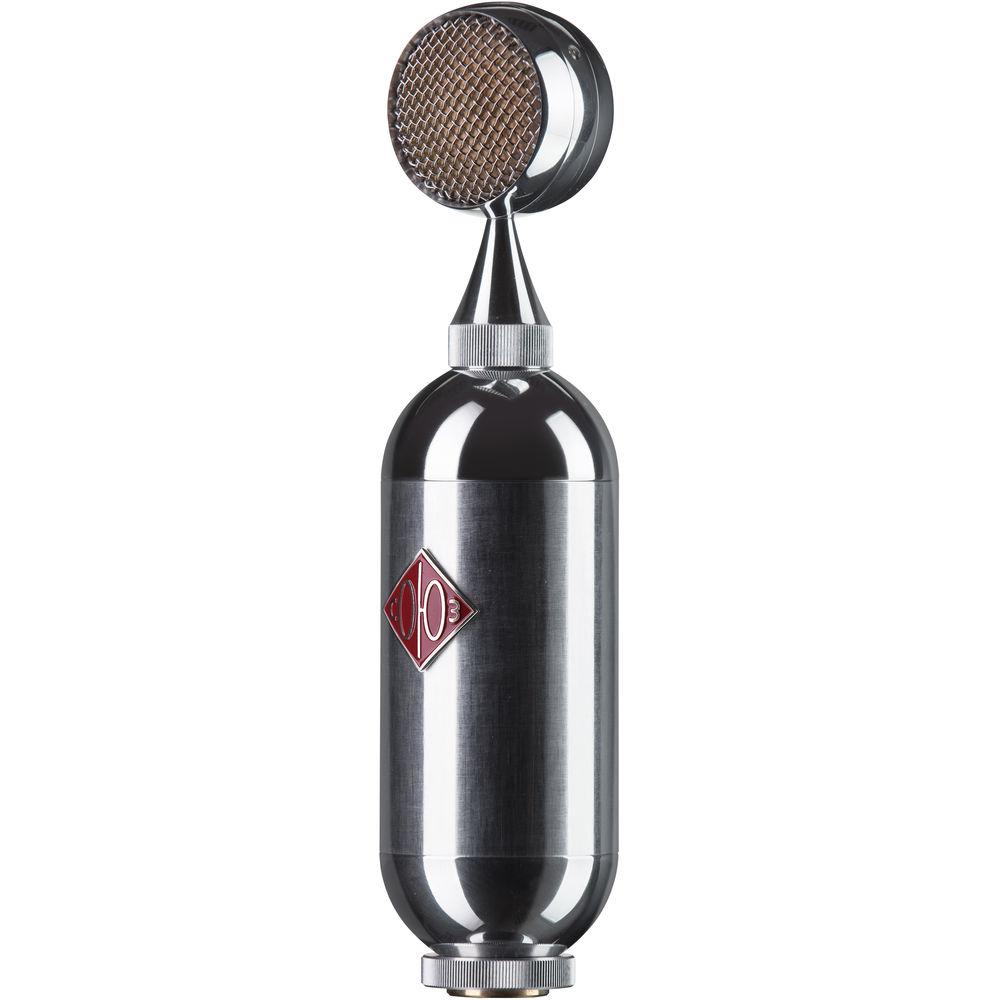

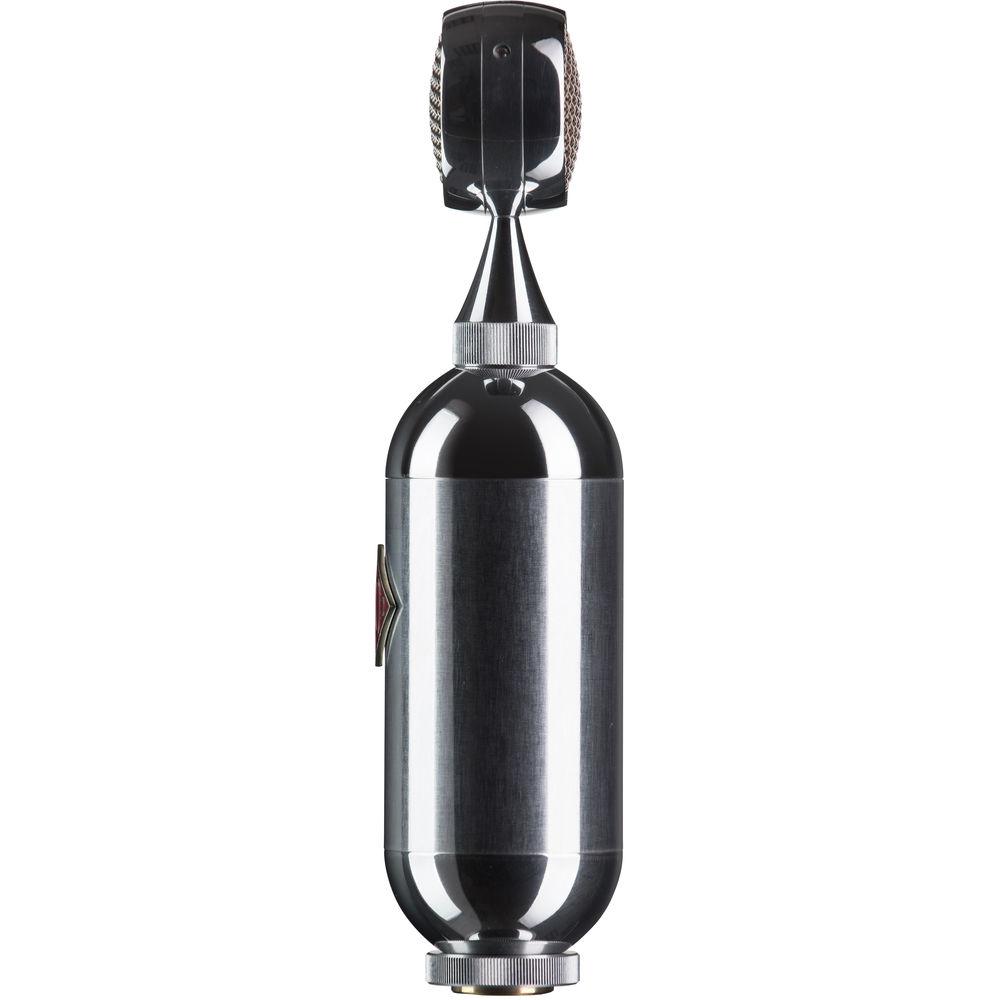

Product description The Soyuz SU-023, dubbed "The Bomblet," is a large-diaphragm condenser microphone designed for recording applications. It's suitable for vocals, guitars, pianos, and more. Based on soviet-era technology, the microphone offers a cardioid polar pickup pattern by means of its dual 1.3" capsules, one of which features gold sputtering.

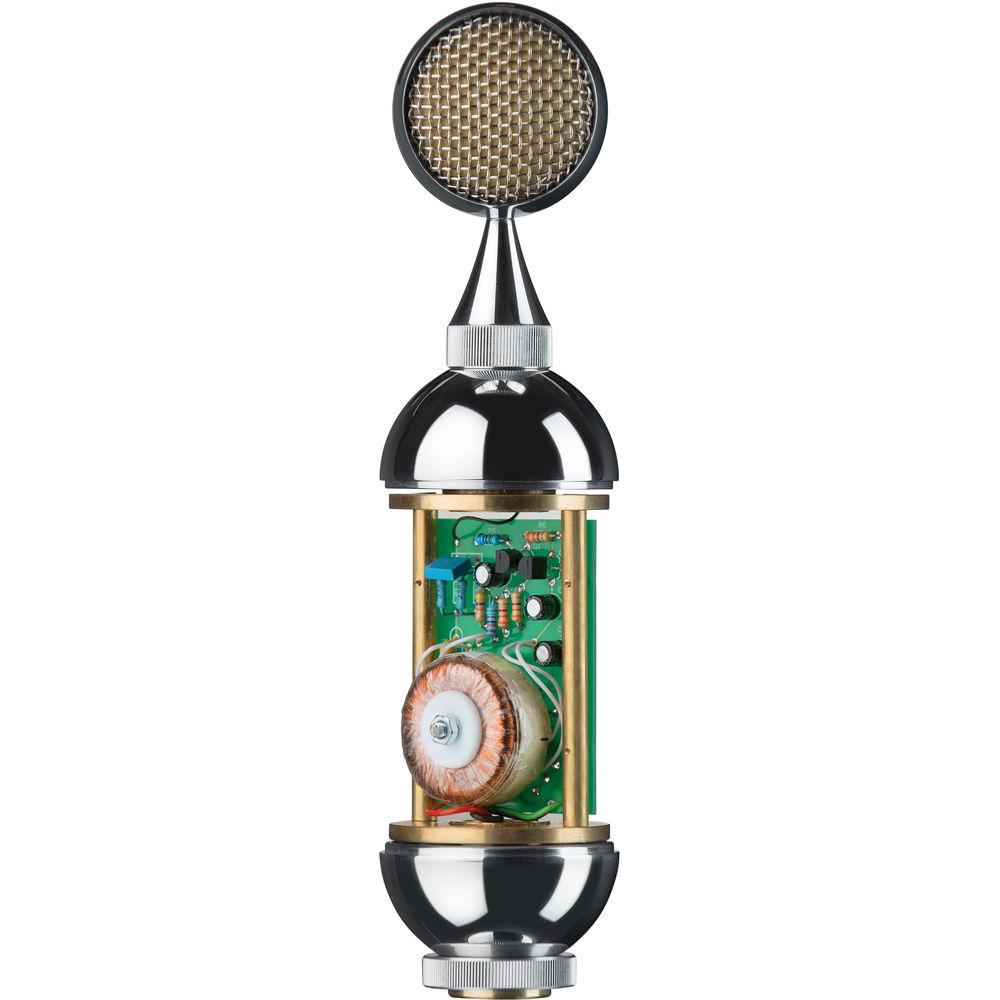

A proprietary toroidal transformer helps ensure a pristine tone, with a sweet frequency boost at around 10 kHz. The microphone sports a 30 Hz to 18 kHz frequency range.

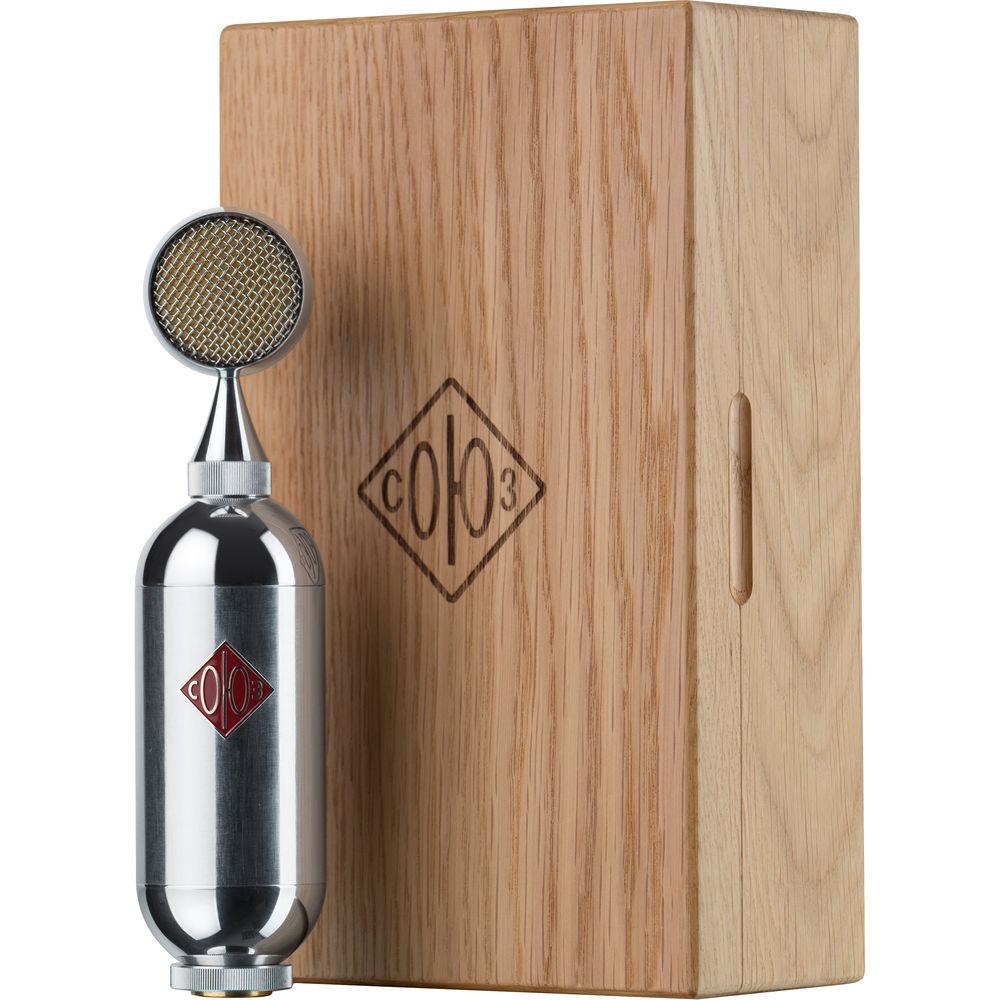

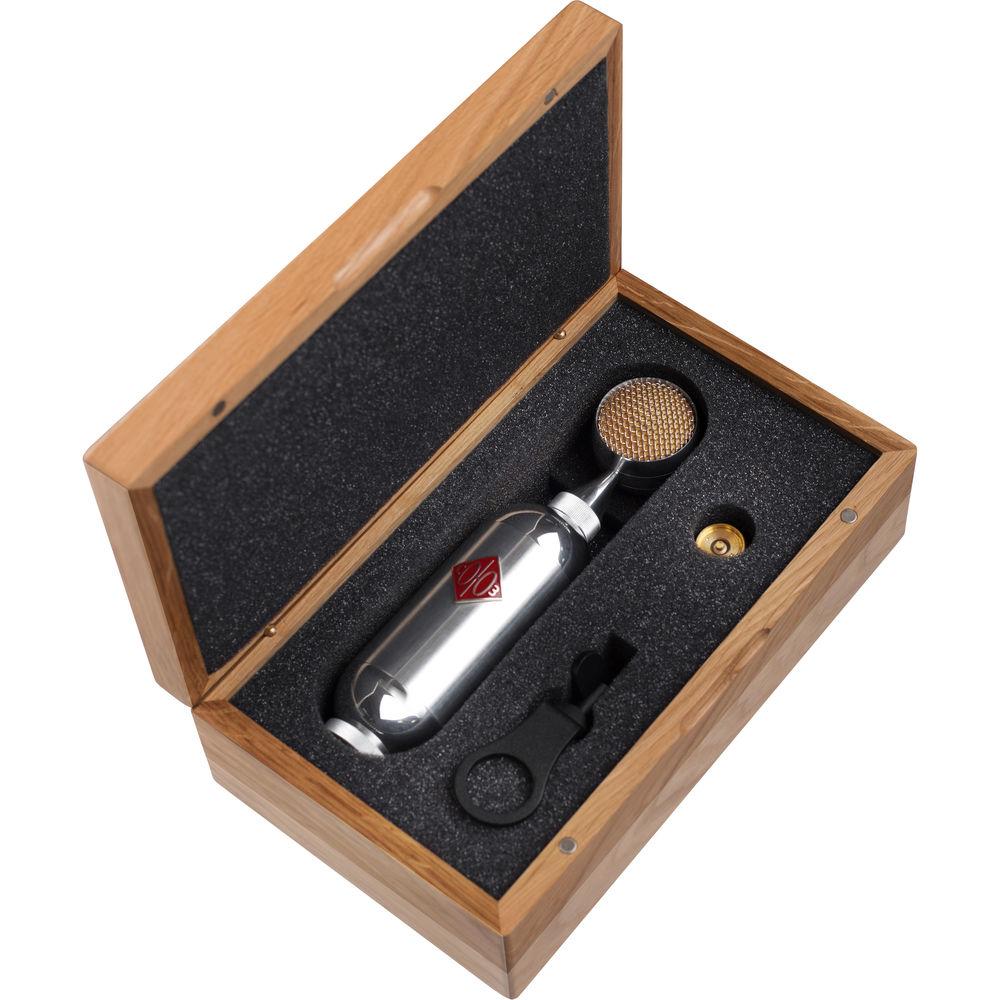

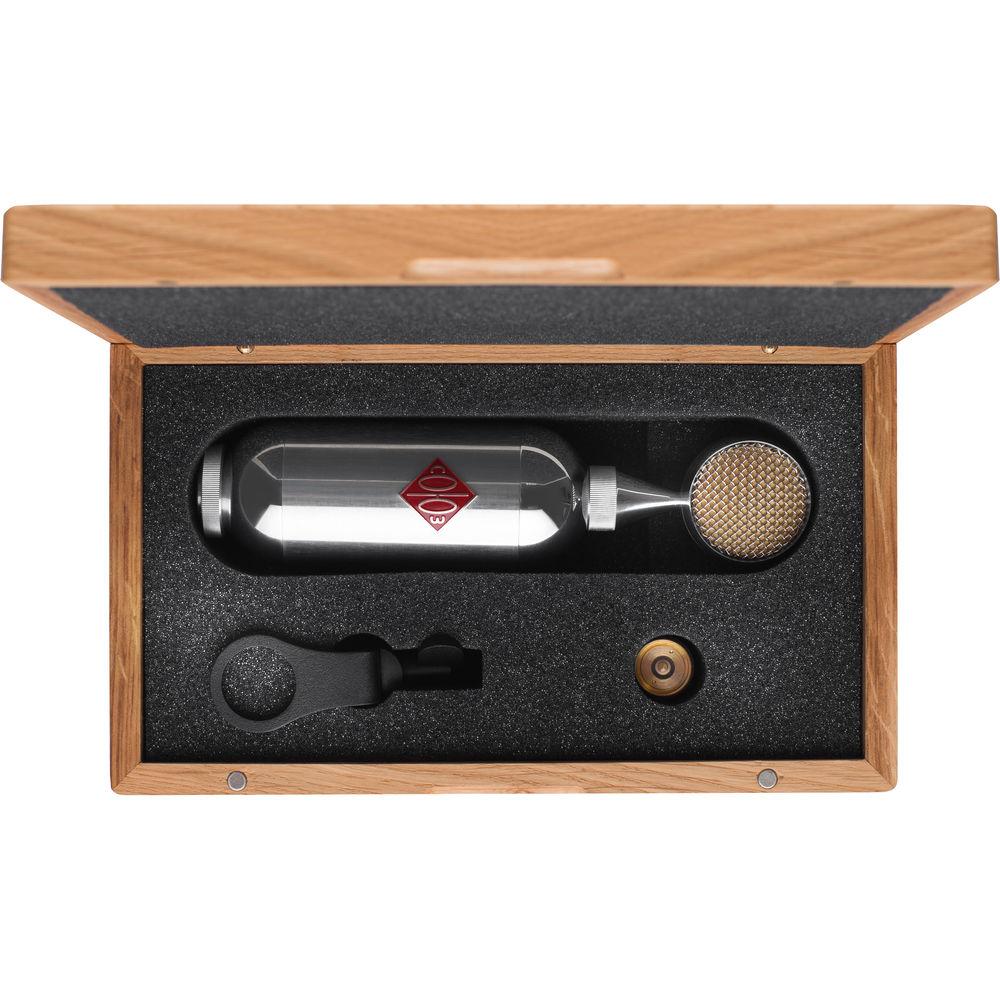

Rather than a pad switch, the SU-023 uses an external attenuator block to secure a -20 dB pad, if need be. The mic comes with a mic holder and a wooden case. In the Box Soyuz Microphones SU-023 Bomblet Large-Diaphragm Condenser Microphone Mic Holder -20 dB Attenuation Block Wooden Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soyuz Microphones SU-023 Bomblet Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoyuz Microphones SU023 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1.30" / 33 mm (Condenser)
1.30" / 33 mm (Condenser) | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 18 kHz | | Maximum SPL | Cardioid: 140 dB SPL | | Pad | -20 dB Pad is an attenuator block that is manually inserted between the capsule and the mic body | | Impedance | Cardioid: 190 Ohms | | Sensitivity | Cardioid: 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 7.64" / 194 mm | | Diameter | 1.85" / 47 mm | | Weight | 1.12 lb / 510 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
