User Manual for Speco Technologies 16-Channel 1080p HD-TVI DVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies 16-Channel 1080p HD-TVI DVR
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies 16-Channel 1080p HD-TVI DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

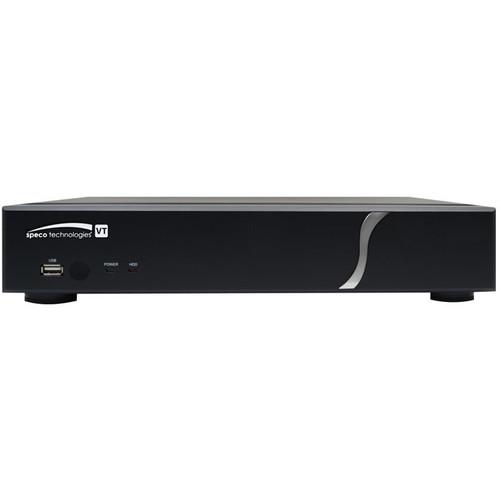

Product description Configure, record, and playback from up to 16 cameras using the 16-Channel 1080p HD-TVI DVR from Speco Technologies. This DVR is capable of supporting high-definition recording and playback using analog coaxial cables, and it is compatible with other HD-TVI devices. Offering multiple recording resolutions, the DVR can record at 15 fps in 1080p resolution and 30 fps in 720p or 960H resolutions. Additionally, UTC technology enables you to zoom, focus, and control your OSD, all using existing coax wiring. The DVR saves recorded footage to a pre-installed 6TB HDD, which can be extended to a maximum of 8TB, and it uses H.264 formatting for fast, high-quality information storage. Equipped with 2-way audio capabilities, the DVR can record audio from up to 4 channels, and it can deter intruders by activating an audio message or sound when motion is detected. Compatible with PC and Mac systems, and backwards compatible with analog setups, this DVR is designed to create a convenient surveillance system in a variety of settings. - One-click easy set-up wizard guides you to set up essentials of the system in a logical sequence
- Quickly search events from thumbnails, set up recording resolutions and type, and auto copy what you are playing onto a USB flash drive
- Record 1080p @ 15 fps / 720p @ 30 fps over coax (HD-TVI)
- Backwards compatible with all analog cameras
- UTC (Up-the-Coax) function allows for zoom/focus and OSD control over coax
- Multiple video outputs (HDMI, VGA, and CVBS)
- Networkable DVR with DDNS server
- Digital Deterrent triggers a selected audio file when motion is detected; up to 8 audio files are supported
- Two-way audio communication
- 4-channel audio recording
- Program recordings based on motion detection, sensors, and schedules, or continuous and manual settings
- Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis, and Reporting Technology for HDD)
- Covert camera operation provides enhanced security and administration control
- Password protection to secure installation authorization
- Switch between low- and high-quality streaming for storage optimization
- Smart (Museum) Search: Quickly search for a specific video event without the need for motion setup
- Easy firmware upgrades using the USB port or the network
- Instant and convenient backup via USB flash drive or network
- Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox, and Safari
- Simultaneous playback/record while continuing to network transfer or backup
- User Access: Up to 4 concurrent users for live viewing, 1 user for playback
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control
- Access your network via SpecoTech Multi-Client Software, SecureGuard CMS, Internet Explorer, Web-Viewer, and Speco Player Mobile Viewer
UPC: 030519010955 In the Box Speco Technologies 16-Channel 1080p HD-TVI DVR with 6TB HDD IR Remote Control Mouse Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 16-Channel 1080p HD-TVI DVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D16VT Specs | | | Input | Channel: 16-channel
Input Level: Composite, 1.0 Vpp, 75 Ohms
Signal Format: NTSC/PAL
Video Loss Check: Yes | | Output | VGA: 1 x VGA (1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI: 1 x HDMI (1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080)
CVBS/SPOT: 1 main or 1 spot | | | | Input & Output | 4 line input & 1 line output | | Audio Codec | G.711 | | Sensor Input | 4-channel (NC/NO selectable) | | Alarm Output | 1 x alarm out by sensor, motion, video loss, HDD temperature and HDD failure | | | | Compression | H.264 | | Multi-Operation | QUADPLEX (play / record / network / backup) | | Resolution | Capture 1080p at 15 fps, 720p at 30 fps, and/or 960H at 30 fps per camera | | Recording Mode | Continuous, schedule, motion, sensor, manual, continuous + motion, continuous + sensor | | Motion Detection | Motion detection setup by grid | | Pre-Recording | 20 minutes maximum | | Post Recording | 60 sec maximum | | | | Multi-Decoding | 1, 4, 9, 16 | | Search Modes | EZ Search, timeline, event, archive, log | | | | HDD | Interface Type: Serial ATA
Capacity of 1 HDD: 3 TB
Internal HDD: 2
Storage Capacity: 6 TB
Max Capacity: 8 TB | | Backup | USB Flash Drive / USB External HDD / Network: Video & still image | | USB Port | 1 front, 1 rear | | | | Menu Display | GUI | | Input Method | IR, mouse, keyboard controller | | | | Interface | 10/100/1000Base-T | | Streaming | CIF 15 fps / channel maximum | | | | Viewer | Mobile: Live, Search, PTZ, 2-Way Audio
PC Web: Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup) | | Client | PC: SpecoTech Multi-Client Viewer and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)
MAC: Speco Client for MAC and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup) | | | | Digital Deterrent | Default + up to 8 custom audio files | | Internal Beep | By video loss, HDD error | | Multi-Language | English / Spanish / French | | Dynamic DNS | Yes, Speco DDNS | | Upgrades | SW: USB and remote software upgrade | | | | Power Supply Voltage | 12 VDC, 5 A | | | | Operating Temperature / Humidity | 41 to 104°F (5 to 40°C) / 20 to 80% RH allowable | | Storage Temperature | 14 to 122°F (-10 to 50°C) allowable | | | | Dimensions (W x H x D) | 13.4 x 2.4 x 10.3" (340.3 x 62.9 x 261.6 mm) | | Weight | 3.3 lb (1.4 kg) |
