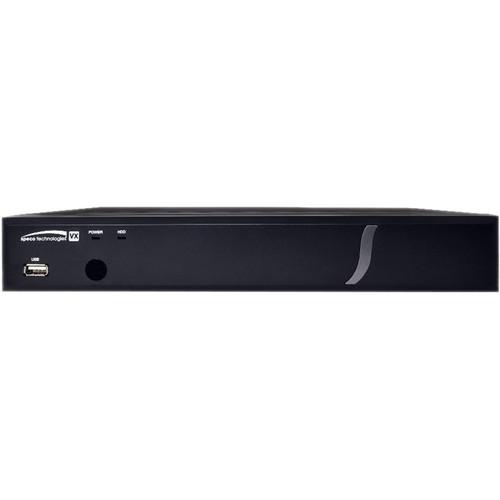

User Manual for Speco Technologies 16-Channel 4MP HD-TVI DVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies 16-Channel 4MP HD-TVI DVR
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies 16-Channel 4MP HD-TVI DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Record from and manage up to 16 cameras with the 16-Channel 4MP HD-TVI DVR with 8TB HDD from Speco Technologies at resolutions up to 2688 x 1520. Preinstalled with 8TB of HDD storage, the recorder can be expanded to host a maximum HDD capacity of 10TB. H.264 video compression keeps file size manageable while maintaining the best quality possible. The recorder supports HD-TVI technology and is backward compatible with standard analog cameras. Two-way audio is supported. An HDMI connection provides up to 4K UHD resolution video output.
UTC (Up-the-Coax) connection enables zoom/focus and OSD control. An IR remote control and mouse are included with the recorder. - Backward compatible with all analog cameras
- HDMI, VGA, and CVBS/spot monitor video outputs
- Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Signal distance up to 1600'
- Easy firmware upgrade by USB port
- Backup via USB flash drive
- Four audio inputs and one audio output
- Four or 16 (with sensor box) sensor inputs
- Digital Deterrent supports up to eight audio files for triggering during sensor or motion detection
- EZ Wizards simplify use and setup
- Recording modes include smart, continuous, sensor, schedule, and manual
- Simultaneous playback/record while continuing to network transfer or backup
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Up to 12 concurrent users for live viewing and one user for playback
- Password to secure installation authorization
- Compatible with Windows and Mac computers, Internet Explorer, Firefox, SecureGuard VMS, and Speco Player app for iOS and Android
- Free US-based Speco DDNS service
UPC: 030519023139 In the Box Speco Technologies 16-Channel 4MP HD-TVI DVR with 8TB HDD IR Remote Control Mouse Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 16-Channel 4MP HD-TVI DVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VX Series Specs | | | Inputs | 16 | | Supported Cameras | 960H, HD-TVI (1 to 4 MP) | | Main Monitor Output | VGA and HDMI (Maximum 4K UHD) | | Sub Monitor Output | CVBS or Spot (Selective) | | | | Input & Output | 4 x Line Inputs
1 x Line Output | | Audio Codec | G.711 | | Two-Way Audio | Local Port to Network Client | | | | Sensor Input | 4 or 16 (with Sensor Box) | | Alarm Output | 1 x Alarm Output | | | | Frame Rate | Frame Rate with 4 MP Cameras: 15 fps per Channel
Frame Rate with 3 MP Cameras: 18 fps per Channel
Frame Rate with 2 MP Cameras: 30 fps per Channel | | | | Compression | H.264 | | Resolutions & Frame Rates | Per Channel: 2688 x 1520 at 12 fps
Per Channel: 2304 x 1296 at 15 fps
Per Channel: 1920 x 1080 at 15 fps | | Recording Quality Grade | 5 Levels | | Recording Modes | Smart, Continuous, Motion, Sensor, Schedule, Manual | | Pre-Recording | Maximum 20 Minutes | | Post Recording | Maximum 60 Seconds | | | | Search Modes | EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log | | Multi-Decoding | 1, 4, 9, 16 | | Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 | | | | HDD Capacity | 1 x 10 TB | | HDD Included | 8 TB Preinstalled | | USB Ports | 1 x Front
1 x Rear | | | | Input Method | IR Remote Control, Mouse, Keyboard Controller | | | | Interface | 1000M Ethernet | | Dynamic DNS | Yes (Free DDNS) | | Dual Streaming | Yes | | | | 3G Mobile Viewer | iPad, iPhone, Android | | Web Viewer | Windows: Internet Explorer, Firefox | | PC Client | SpecoTech Multi-Client Viewer and SecureGuard VMS | | Mac Client | Speco Client for Mac and SecureGuard VMS | | Remote Setup and Upgrade | Yes | | | | Features | Digital Deterrent (Default + up to Eight Custom Audio Files)
Digital Zoom
Daylight Saving Time
EZ Record
S.M.A.R.T
Internal Beep (Video Loss, HDD Error)
Multi-Language (English, Spanish, French)
Software Upgrade (USB Upgrade)
Email Notification
Network Time Protocol | | | | Power Supply | 12 VDC, 3 A | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20 to 80% RH | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Dimensions (W x H x L) | 11.8 x 9.9 x 2" / 300 x 251.5 x 50.8 mm | | Weight | 4 lb / 1.8 kg |
