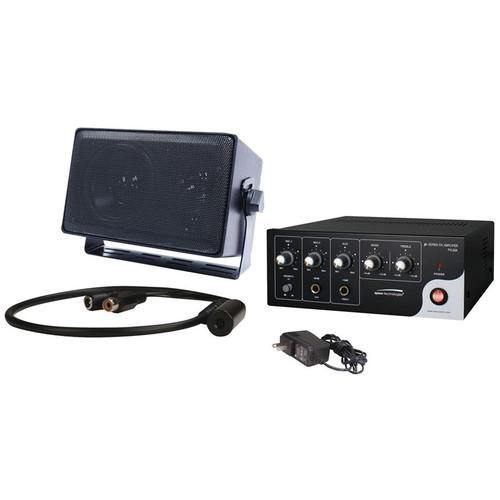

User Manual for Speco Technologies 2WAK2 Two2-Way Audio Kit with 15W RMS Amplifier, Line-Level Microphone, & 4" Wall-Mount 70 25V Speaker Click to enlarge the picture
Contents of the user manual for the Speco Technologies 2WAK2 Two2-Way Audio Kit
- Product category: Recording Accessories Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Recording Accessories
|
User manual for the Speco Technologies 2WAK2 Two2-Way Audio Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The Speco Technologies 2WAK2 Two-Way Audio Kit is used with DVRs that feature 2-way audio support. It includes the PVL15 Amplifier, DMS3TS Speaker, CAMMIC Line-Level Microphone, and PSW5 Power Supply (for microphone). With this 2-way audio kit, a person can communicate with someone in view of a camera either directly through the DVR or with an Apple or Android application. Suitable for use in small areas such as classrooms, retail shops, or convenience stores, the PVL15 Amplifier provides priority paging, 15W of RMS power, and has 3 easily accessible inputs. It also offers Mic1 priority mute function with front button and has separate bass and treble controls. The DMS3TS 4" Speaker is a 3-way indoor/outdoor all-purpose speaker system with a 70/25V transformer. It features a 4" polypropylene air suspension woofer and 1" dome tweeter housed in a die-cast enclosure. The add-on CAMMIC Mini Microphone can be connected to an amplifier or DVR via a line level input instead of a microphone level input. This provides flexibility on amplifier or DVR units that have all microphone inputs occupied or that don't have a microphone input at all. This microphone is suitable for recording channel-specific audio on DVRs which offer that capability. This microphone is powered by the included PSW5 12 VDC Power Supply. PVL15 Amplifier - Mic1 priority mute function with front button
- Separate bass and treble controls
- 15W of RMS output and maximum output of 30W
- Two microphone inputs and one 1/4" auxiliary input
DMS3TS Speaker - 3-way mini weather-resistant speaker system
- 70 and 25V dual-voltage transformer
- Includes mounting bracket, wire, and hardware
CAMMIC Microphone - Add-on mini microphone with power/audio cable
- Easy to install and suitable for all security surveillance voice recording applications
PSW5 Power Supply In the Box Speco Technologies 2WAK2 Two2-Way Audio Kit with 15W RMS Amplifier, Line-Level Microphone, & 4" Wall-Mount 70/25V Speaker PVL15 15W Public Address Amplifier DMS3TS 3-Way All Weather Mini Speaker with Line Transformer (Black) CAMMIC High-Impedance Line Level Microphone with 1.5' Cable PSW5 12 VDC AC/DC Power Supply Limited 5-Year Warranty on Amplifier and Speaker Limited 2-Year Warranty on Microphone Limited 90-Day Warranty on Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 2WAK2 Two2-Way Audio Kit with 15W RMS Amplifier, Line-Level Microphone, & 4" Wall-Mount 70 25V Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies 2WAK2 Specs | | | Output Power | RMS: 15 W
Maximum: 30 W | | AC Power Consumption | 60 W | | Power Supply | 120 VAC, 50/60 Hz | | Zones | 1 | | Speaker Output | 4/8/16 Ω, 70/25 V | | Inputs | 2 x Mic (1/4" and 1/4" or XLR)
1 x Aux (1/4") | | Frequency Response | 50 Hz to 15 kHz | | Tone Control | Bass & Treble: ±10 dB | | THD | <0.1% @ 1 kHz | | Signal-to-Noise Ratio | Microphone: >75 dB
Line: >80 dB | | Controls | Volume for each source, Tone, Priority | | Indicators | Power | | Listings | CE, FCC, RoHS | | Dimensions | 8.3 x 3.0 x 7.9" (20.9 x 7.6 x 20.0 cm) | | Weight | 8.4 lb (3.8 kg) | | | | Frequency Response | 55 Hz to 20 kHz | | Woofer | 4" polypropylene air suspension | | Tweeter | 1" dome tweeter | | Midrange | 2" | | Voice Coil | 50 W, 8 Ω | | Rotary Switch | 70/25 V line or 8 Ω adjustable | | Transformer | 15 W / 330 Ω, 7.5 W / 660 Ω, 4 W / 1,250 Ω, 2 W / 2,500 Ω, 1 W / 5,000 Ω | | Housing | Die-cast enclosure | | Dimensions (L x W x H) | 4.4 x 4.5 x 7.3"(111.1 x 114.3 x 184.2 mm) | | Weight | Woofer: 10.0 oz (283.5 g) | | | | Type | Condenser microphone | | Directivity | Omni-directional | | Frequency Range | 20 Hz to 16 kHz | | Impedance | 10 kΩ | | Sensitivity | -62 ± 3 dB | | VCC | 1.5 kΩ | | Audio Output | Maximum: 2 Vpp | | Power Consumption | 10 mA | | Cable Length | 1.5' (0.5 m) | | Weight | 1.6 oz (45.4 g) | | | | Power | 1,000 mA (1 A) 12 VDC |
