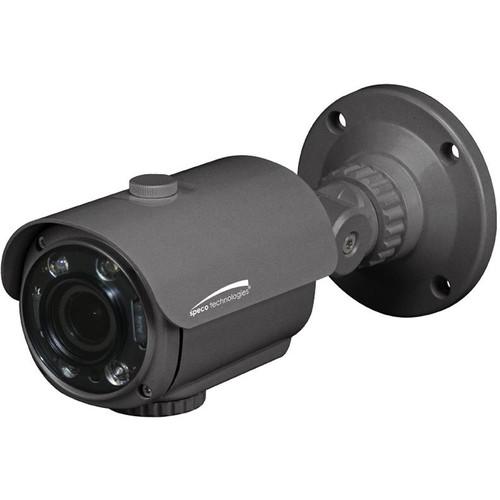

User Manual for Speco Technologies 3MP HD-TVI Outdoor Bullet Camera with Night Vision & 2.8-12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies 3MP HD-TVI Outdoor Bullet
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies 3MP HD-TVI Outdoor Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray 3MP HD-TVI Outdoor Bullet Camera from Speco Technologies features a 1/2.8" progressive scan Sony Exmor CMOS sensor and 2.8-12mm varifocal lens for capturing videos at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 85'. Enclosed in an IP66-rated housing, the camera can be used for both indoor and outdoor applications. - Supports up to 3MP at 18 fps
- Intense IR function minimizes saturation
- True day/night operation with built-in mechanical IR cut filter
- Built-in heater and anti-fog glass reduce condensation
- Full OSD operation through on-board control and UTC (up the coax)
- Signal distance up to 1600' (depending on coax quality)
- IP66-rated weather-resistant housing
UPC: 030519021999 In the Box Speco Technologies 3MP HD-TVI Outdoor Bullet Camera with Night Vision & 2.8-12mm Varifocal Lens Video Test Connector Power Jack Focus Adjustment Bracket Base Wrench Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 3MP HD-TVI Outdoor Bullet Camera with Night Vision & 2.8-12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT7043T Specs | Image Sensor | 1/2.8" Sony Exmor CMOS, 3 MP | | Minimum Illumination | Color: 0.01 lux at f/1.4 (AGC Maximum, Sens-up Maximum)
B&W: 0.5 lux at f/1.4 (AGC Maximum) | | Lens | 2.8-12mm | | Effective Pixels (H x V) | 2065 x 1553 | | Total Pixels (H x V) | 2065 x 1565 | | Scanning System | Progressive | | IR Illuminator | Intense IR: 0 to 20 (adjustable) | | IR Range | 85' (25.9 m) depending on scene reflection | | S/N Ratio | More than 50 dB | | Output Resolution | 2048 x 1536 | | Video Output | 1.0 V p-p / 75 Ohms | | Electronic Shutter | Auto/Manual (1/30 to 1/30,000 sec)/Flicker | | Wide Dynamic Range | On (Low / Middle / High) / Off | | Day/Night | Auto / Color / B&W / External | | White Balance | Auto / AWB / AWC-Set / Manual | | Brightness | 0 to 20 (adjustable) | | AGC | 0 to 20 (adjustable) | | Sense-Up | 2 to 32x (adjustable) | | Backlight | On / Off | | Motion Detection | On / Off (4 zones) | | Privacy Masking | On / Off (16 zones) | | Mirror | On / Off | | Image Flip | Vertical: On / Off | | Sharpness | 0 to 20 (adjustable) | | Lens Shading Compensation | On / Off | | DNR | Off / Low / Middle / High | | Test Monitor Output | CVBS | | Communication | UTC (up the coax) | | Power | 12 VDC / 24 VAC dual voltage (power supply available separately) | | Power Consumption | 12 VDC, 770 mA maximum (LED on),
350 mA maximum (LED off)/
24 VAC, 310 mA maximum (LED on),
180 mA maximum (LED off) | | Certifications | FCC, RoHS | | IP Rating | IP66 | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 95% RH | | Dimensions | 3.94 x 3.94 x 8.27" (100 x 100 x 210 mm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.7 x 6.3 x 5.2" |
