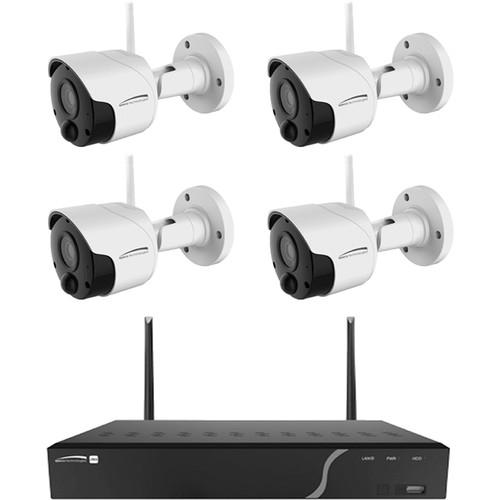

User Manual for Speco Technologies 4-Channel 2MP Wireless NVR with 1TB HDD & 4 2MP Outdoor Wireless Network Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Speco Technologies 4-Channel 2MP Wireless NVR
- Product category: Surveillance Systems Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Surveillance Systems
|
User manual for the Speco Technologies 4-Channel 2MP Wireless NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Record from and manage up to four cameras with the 4-Channel 2MP Wireless NVR with 1TB HDD & 4 2MP Outdoor Wireless Network Bullet Cameras from Speco Technologies. This wireless NVR comes preinstalled with a 1TB HDD. HDD capacity is expandable to 6TB. An onboard memory card slot accepts SD cards up to 32GB (available separately). H.264 video compression keeps file sizes manageable while maintaining the best possible video quality.
The included 2MP wireless bullet cameras each have a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video. They each have a 4mm fixed lens with IR LEDs that provide up to 65' of illumination in low-light conditions. The cameras are IP66 rated for outdoor use. - Wireless NVR Features
-
- Embedded Linux OS
- Up to 2MP resolution for live view, recording, and playback
- H.264, AVI, and MP4 file formats
- HDMI and VGA video outputs
- Two USB 2.0 ports
- 100M Ethernet port
- Built-in S.M.A.R.T technology (self-monitoring, analysis, and reporting technology for HDD)
- Remote monitoring via Windows & Mac computers, along with mobile apps
- Free US-based DDNS service
- Wireless Bullet Camera Features
-
- 4mm wide angle lens
- 102° diagonal field of view
- Wireless range up to 200'
- IR range up to 65'
- True day and night functionality
- Digital wide dynamic range
- 3D-DNR
- Auto white balance
- Auto gain control
- Auto shutter mode
- PIR sensor
- Built-in microphone
- Key Features
-
- EZ Wizard for easy network and system setup
- EZ Search enables users to search events from thumbnails
- EZ Record to set up recording resolutions and recording type
- EZ Copy to copy what you are playing onto a USB flash drive
- EZ App Setup enables users to scan a QR code with the app to view your cameras on your mobile device
UPC: 030519026338 In the Box Speco Technologies 4-Channel 2MP Wireless NVR with 1TB HDD & 4 2MP Outdoor Wireless Network Bullet Cameras 4 x 45' DC Power Extension Cables 3' Ethernet Cable Mouse Remote Control with Batteries HDMI Cable Limited 5-Year Warranty for NVR and Cameras Limited 3-Year Warranty for HDD Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 4-Channel 2MP Wireless NVR with 1TB HDD & 4 2MP Outdoor Wireless Network Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies ZIPK4W2 Specs | | | Video Inputs | 4-Channel Wireless | | Resolution | 1920 x 1080 | | Multi-Screen Display | 1/4/SEQ | | Frame Rate | Maximum: 1920 x 1080 at 60 fps
Main Stream: 1920 x 1080 at 1 to 15 fps per Channel
Sub Stream: 640 x 360 at 1 to 15 fps per Channel | | Live Resolution | 1920 x 1080 | | Operating System | Embedded Linux | | Installation Wizard | Support | | Compression | H.264 (Protocol Raysharp) | | Recording Bandwidth | Up to 8 Mb/s (4 Channels Simultaneously, 2 Mb/s per Channel) | | Recording Rate | Main Stream: 1920 x 1080 at 15 fps per Channel | | Recording Modes | Manual, Schedule (Continuous/Event), Event (Pre/Post) | | Event | Video Loss, Motion (Sensitivity Level 1-8) | | Overwrite Modes | Off, On (Auto, 1, 3, 7, 14, 30, and 90 Days) | | Pre-Alarm | Minimum 1 Second | | Post-Alarm | Up to 5 Minutes (30 Seconds, 1, 2, and 5 Minutes) | | Search Modes | Date/Time, Event, Motion | | Playback Functions | Fast Forward/Backward (2x, 4x, 8x, 16x)
Slow Forward (1/2x, 1/4x, 1/8x, 1/16x)
Step Forward | | Live Stream | 1920 x 1080 at 60 fps Maximum
640 x 360 at 60 fps Maximum | | Protocol Support | TCP/IP, UDP/IP, RTP (UDP, RTP (TCP), RTSP, NTP, HTTP, DHCP, SMTP, DNS, DDNS, UPnP | | Monitoring | Web, Mobile, Netview for PC/Mac | | HDD Capacity | 1 x SATA (6 TB Capacity) | | HDD Included | 1 TB | | SD Card Slot | Supports SD Cards up to 32 GB (Available Separately) | | USB Ports | 2 x USB 2.0 (Front & Rear) | | File Format | H.264, AVI, MP4 | | VGA Resolution | 1 x VGA
Resolutions: 1024 x 768, 1280 x 1024, 1280 x 720, 1440 x 900 | | HDMI Resolution | 1 x HDMI
Resolutions: 1024 x 768, 1280 x 1024, 1280 x 720, 1440 x 900 | | Audio | Simultaneous Output: VGA and HDMI | | Ethernet | 1 x RJ45 100M | | Application Support | Mouse, Remote Control | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 85% RH | | Input Voltage/Current | 12 VDC, 2 A Adapter | | Dimensions | Not Specified by Manufacturer | | | | Imaging Device | 1/2.7" 2 MP Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 1920 x 1080 | | Horizontal Resolution | 1920 x 1080 | | Minimum Illumination | 1 Lux with IR LED On | | Focal Length | 4mm | | Maximum Aperture Ratio | f/2.0 | | Field of View | Diagonal: 102° | | Shutter Modes | Auto | | Gain Control | Auto | | White Balance | Auto | | Wide Dynamic Range | Digital WDR | | Digital Noise Reduction | 3D-DNR | | PIR Sensor | Yes | | Built-In Microphone | Yes | | Flickerless | Manual (50/60 Hz Optional) | | Day & Night | True Day & Night, Auto | | IR Range | 65' / 20 m | | Video Output | Wireless | | Wireless Range | 200' / 61 m (Line-of-Sight) | | Operating Temperature | 14 to 122°F / -10 to 50°C
Startup Temperature: 14 to 122°F / -10 to 50°C | | Operating Humidity | <90% RH | | IP Rating | IP66 | | Input Voltage | 12 VDC / 500 mA Adapter | | Dimensions | Not Specified by Manufacturer | | | | Package Weight | 11.065 lb | | Box Dimensions (LxWxH) | 17.6 x 12.2 x 8.3" |
