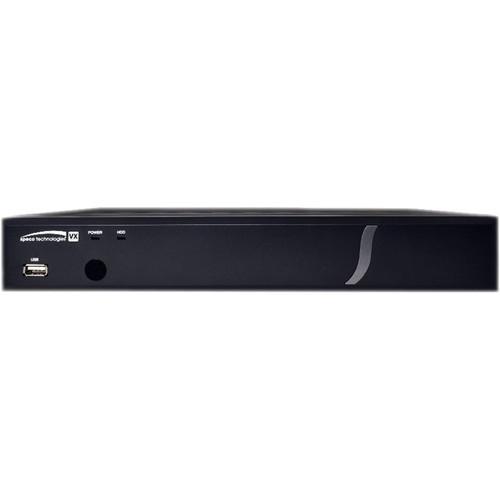

User Manual for Speco Technologies 4-Channel 4MP HD-TVI DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies 4-Channel 4MP HD-TVI DVR
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies 4-Channel 4MP HD-TVI DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Stream and record up to four channels of video with the 4-Channel 4MP HD-TVI DVR with 4TB HDD from Speco Technologies. This HD-TVI DVR records video at resolutions up to 4MP. Equipped with one HDD bay, the DVR can be configured to have up to 10TB of internal storage (4TB HDD preinstalled). External storage and backup options include PCs via Internet connection, network servers, and USB storage devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.264 dual-streaming compression.
This DVR enables simultaneous live view or playback of up to four channels at resolutions of up to 2688 x 1520 via its VGA, HDMI, and CVBS ports. Up to four channels can be recorded simultaneously at frame rates of 10 fps per channel at 4MP, 13 fps per channel at 3MP, or 15 fps per channel at 2MP resolution. Internet connectivity enables remote monitoring via Windows & Mac computers and iOS & Android mobile devices. The DVR is equipped with an RS-485 serial port, as well as with four line inputs and one line output for two-way audio communication with network clients. - Supports coaxial cable runs of up to 1600'
- Digital Deterrent supports up to eight audio files for triggering during sensor or motion detection
- Two-way audio communication
- Built-in S.M.A.R.T technology
- Password to secure installation authorization
- Smart (museum) search allows quick search for specific video event without need for motion setup
- Firmware upgrade via USB port
- Instant backup via USB flash drive
- Supports multiple Windows-based browsers, including Internet Explorer and Firefox
- Simultaneous playback/record while continuing network transfer or backup
- Up to 12 simultaneous users for live viewing, one for playback
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Network access via SpecoTech multi-client software, SecureGuard, web viewer, and Speco Player mobile app
- Windows and Mac compatible
- UTC function allows for zoom/focus and OSD control over coax
- Backward-compatible with most analog cameras
- Daylight Savings (DLS), EZ record, email notifications, and Network Time Protocol (NTP)
- Beep provides auditory alert of video loss or HDD error
- US-based DDNS server access
UPC: 030519022484 In the Box Speco Technologies 4-Channel 4MP HD-TVI DVR with 4TB HDD Mouse Remote Control 2 x AAA Batteries 12 VDC / 3A Adapter & 110V Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 4-Channel 4MP HD-TVI DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VX Series Specs | | | Number of Channels | 4 | | Supported Camera Types | 960H, HD-TVI 1/2/3/4 MP | | Output | Main Monitor: VGA and HDMI, 1920 x 1080 Max.
Sub Monitor: CVBS or Spot, Selectable | | Distance Supported | Up to 1600' / 487.7 m over Coax | | | | Input & Output | 4 x Line Input
1 x Line Output | | Audio Codec | G.711 | | 2-Way Audio | Between Local Port and Network Client | | | | Inputs/Outputs | 4 x Sensor Inputs
1 x Alarm Output | | | | Frame Rates | 15 fps/Channel with 4 MP Cameras
18 fps/Channel with 3 MP Cameras
30 fps/Channel with 2 MP Cameras | | | | Compression | H.264 | | Resolutions & Frame Rates | 2688 x 1520 / 4 MP: 10 fps/Channel
2304 x 1296 / 3 MP: 13 fps/Channel
1920 x 1080 / 2 MP: 15 fps/Channel | | Video Quality Adjustment | 5 Levels | | Recording Modes | Smart, Continuous, Motion, Sensor, Schedule, Manual | | Pre-Recording | 20 Minutes Max. | | Post-Recording | 60 Seconds Max. | | | | Search Modes | EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log | | Multi-Decoding | 1, 4 | | Playback Speed | 0.25x, 0.5x, 2x, 4x, 8x, 16x, 32x, 64x | | | | Media | USB Drive, External HDD, Network | | Format | BMP, AVI, Proprietary Format, and EXE | | Time Backup | 24 Hours Max. | | | | HDD Interface | 1 x 10 TB HDD Capacity
4 TB Preinstalled | | USB | 1 x Port on Front Panel
1 x Port on Rear Panel | | | | Input Method | IR Remote Control (Included), Mouse (Included), Keyboard Controller (Available Separately) | | | | Interface | 10/100/1000Base-TX | | Dual Streaming | Yes | | | | 3G Mobile Viewer | iPad, iPhone, Android | | Web Viewer | Windows (Internet Explorer, Firefox) | | Client | Windows: SpecoTech Multi-Client Viewer and SecureGuard VMS
Mac: Speco Client for Mac and SecureGuard VMS | | Remote Setup and Upgrade | Supported | | | | Power Supply Voltage | 12 VDC, 3 A | | | | Multi-Language | English, Spanish, French | | Operating Temperature & Humidity | 41 to 104°F / 5 to 40°C, 20 to 80% RH | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Dimensions (W x H x L) | 11.8 x 9.9 x 2.0" / 30.0 x 25.1 x 5.1 cm | | Weight | 4 lb / 1.8 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
