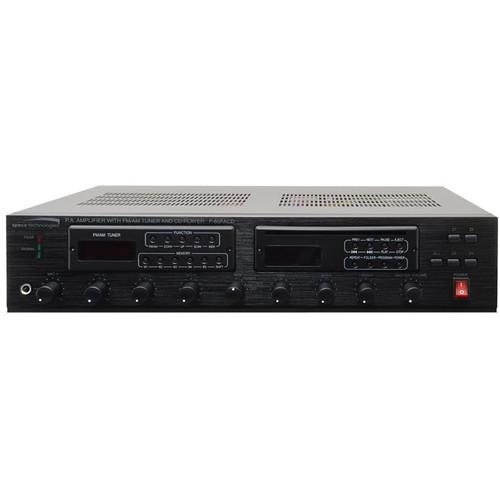

User Manual for Speco Technologies 60W PA Amplifier with FM Tuner & MP3 Ready CD Player Click to enlarge the picture
Contents of the user manual for the Speco Technologies 60W PA Amplifier with
- Product category: Tuners & A/V Receivers Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Tuners & A/V Receivers
|
User manual for the Speco Technologies 60W PA Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The 60W PA Amplifier from Speco Technologies provides 60W RMS or 90W peak power to four different zones at 70 or 25V as well as drive 4, 8, and 16 Ohms loads through the non-zoned outputs. This amplifier comes integrated with an FM tuner and 8-function CD player. It has three stereo RCA and four microphone inputs. It also features a TEL (terminal) connector for integration with telephone paging systems. It offers individual volume controls for each microphone input, along with a master volume control. Treble and bass on the output can be controlled via the front panel. This unit can be rack mounted using the PBMRK2 rack mounting kit (not included). - Four zoned 70 or 25V speaker outputs
- FM tuner with 8-function CD player
- Telephone paging input and MOH (music on hold) output
- Individual volume control for each microphone input
- Bass and treble controls on the front panel
- Mic1 selectable priority paging
UPC: 030519272667 In the Box Speco Technologies 60W PA Amplifier with FM Tuner & MP3 Ready CD Player Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 60W PA Amplifier with FM Tuner & MP3 Ready CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies P60FACD Specs | RMS Output Power | 60 W | | Maximum Output Power | 90 W | | AC Power Consumption | 170 W | | Power Supply | 115 VAC, 50 / 60 Hz | | Zones | 4 | | Speaker Output | 4 / 8 / 16 Ohms (non-zoned)
70 / 25 V (zoned) | | AUX Outputs | 1 x RCA | | Inputs | 1 x AM antenna (press terminal)
1 x FM antenna (BNC)
3 x Aux (stereo, RCA)
4 x Mic (XLR)
1 x TEL (terminal) | | Frequency Response | 60 Hz to 15 kHz (±3 dB) | | Tone Control | Bass ± 10 dB
Treble ± 10 dB | | THD | Less than 1% @ 1 kHz | | Signal to Noise Ratio | >70 dB | | Controls | Volume for each Mic, master volume, Vox volume, MOH volume, Vox selector, tone, source selector, zone selector, tuner and CD | | Telephone Interface | Telephone paging input and MOH (Music-On-Hold) output | | Indicators | Tuner, CD, power, power level | | Listings | UL, cUL, CSA, CE, FCC | | Dimensions (W x H x D) | 16.9 x 3.5 x 11.6" (429.3 x 88.9 x 294.6 mm) | | Weight | 21.4 lb (9.7 kg) |
