Speco Technologies 8-Channel 4MP HD-TVI DVR

Search your instruction manual in PDF to download

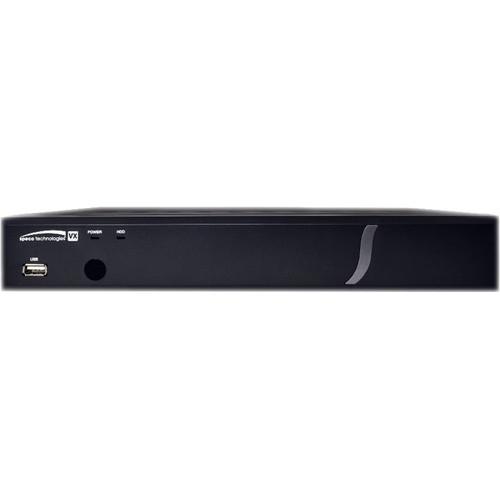

User Manual for Speco Technologies 8-Channel 4MP HD-TVI DVR with 3TB HDD

Click to enlarge the picture
Speco Technologies 8-Channel 4MP HD-TVI DVR with 3TB HDD Contents of the user manual for the Speco Technologies 8-Channel 4MP HD-TVI DVR
  • Product category: Digital Video Recorders (DVRs) Speco Technologies
  • Brand: Speco Technologies
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Speco Technologies Digital Video Recorders (DVRs)

User manual for the Speco Technologies 8-Channel 4MP HD-TVI DVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Speco Technologies product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!



Product description

The 8-Channel 4MP HD-TVI DVR with 3TB HDD from Speco Technologies features 8 BNC camera inputs that support HD-TVI analog video. It records 960H resolution per channel with up to a combined 4MP resolution (at 15 fps per channel). It includes 3TB of preinstalled HDD storage and is upgradeable to a total of 10TB. The DVR has VGA and HDMI main monitor outputs, a switchable composite/spot BNC output, and audio and alarm input/outputs. It uses H.264 compression, offers dual streaming, and is compatible with iOS and Android for remote access via your mobile device.
    Additional Features
    • Up to 1600' camera signal transmission over coax
    • Digital Deterrent support for up to 8 audio files for sensor or motion detection triggering
    • Built-in S.M.A.R.T technology (Self-Monitoring, Analysis, and Reporting Technology for HDD)
    • Smart (Museum) Search: Quickly search for a specific video event without the need for motion setup
    • Up to 12 simultaneous users for live viewing, 1 user for playback
    • Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control over a network
    • Network accessible via SpecoTech Multi-Client Software, SecureGuard, Web-Viewer, and Speco Player Mobile app (iOS/Android)
    • Windows and Mac compatible
UPC: 030519021791 In the Box Speco Technologies 8-Channel 4MP HD-TVI DVR with 3TB HDD
  • IR Remote Control
  • Mouse
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Speco Technologies 8-Channel 4MP HD-TVI DVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Speco Technologies VX Series Specs

    Camera Inputs 8 x BNC (Supporting 1-4 MP HD-TVI Cameras)
    Distance Supported Up to 1600' / 488 m over Coax
    Video Output Main Monitor:
    1 x VGA / 1 x HDMI Type A (1920 x 1080 Max.)

    Sub Monitor:
    1 x BNC (Composite or Spot Selectable)
    Live View 4 MP at 15 fps
    3 MP at 18 fps
    2 MP at 30 fps
    1 MP
    Audio 4 x Line Input
    1 x Line Output
    Audio Codec G.711
    2-Way Audio Between Local Port and Network Client
    Alarm Input / Output 4 x Sensor Inputs (8 with Optional Sensor Box)
    1 x Alarm Output
    Serial Port 1 x RS-485
    Compression H.264
    Recording Resolution 960H per Channel

    Combined:
    4 MP: 2688 x 1520 (at 10 fps per Channel)
    3 MP: 2304 x 1296 (at 13 fps per Channel)
    2 MP: 1920 x 1080 (at 15 fps per Channel)
    Recording Quality Grade 5 Levels
    Recording Mode Smart, Continuous, Motion, Sensor, Schedule, Manual
    Pre-Recording 20 Minutes Max.
    Post-Recording 60 Seconds Max.
    Search Modes EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log
    Multi-Decoding 1, 4, 8
    Playback Speed x0.25, x0.5, x2, x4, x8, x16, x32, x64
    Backup Modes USB Drive, External HDD, Network
    Backup Formats BMP, AVI, Proprietary Format, and EXE
    Huge Backup 24 Hours Max.
    HDD Support 1 x HDD Bay, Supports up to 10 TB
    Installed HDD 3 TB
    USB Storage 1 x USB on Front
    1 x USB on Rear
    User Interface IR Remote Control (Included), Mouse (Included), Keyboard Controller (Sold Separately)
    Network Interface 10/100/1000 Base-TX
    Dynamic DNS Free DDNS
    Dual Streaming Yes
    Network Access Mobile: iOS and Android
    Web Viewer: Windows (Internet Explorer, Firefox)
    PC Client: SpecoTech Multi-Client Viewer and SecureGuard VMS
    Mac Client: Speco Client for Mac and SecureGuard VMS
    Remote Setup Supported
    Languages English, Spanish, French
    Power Supply Voltage 12 VDC, 3 A
    Operating Temperature 41 to 104°F / 5 to 40°C
    Operating Humidity 20-80% RH
    Storage Temperature 14 to 122°F / -10 to 50°C
    Dimensions 11.8 x 9.9 x 2.0" / 30 x 25 x 5 cm
    Weight 4 lb / 1.8 kg
