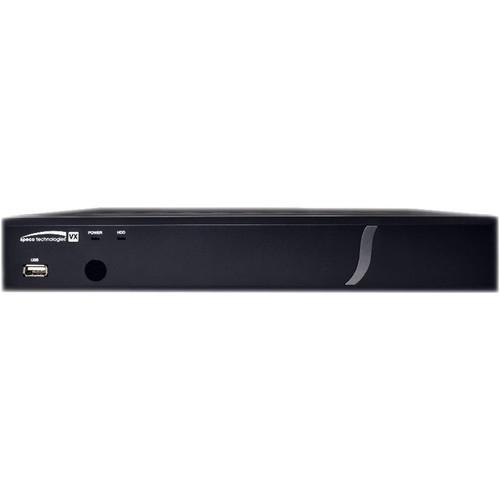

User Manual for Speco Technologies 8-Channel 4MP HD-TVI DVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies 8-Channel 4MP HD-TVI DVR
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies 8-Channel 4MP HD-TVI DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The 8-Channel 4MP HD-TVI DVR with 8TB HDD from Speco Technologies features 8 BNC camera inputs that support HD-TVI analog video. It records 960H resolution per channel with up to a combined 4MP resolution (at 15 fps per channel). It includes 8TB of preinstalled HDD storage and is upgradeable to a total of 10TB. The DVR has VGA and HDMI main monitor outputs, a switchable composite/spot BNC output, and audio and alarm input/outputs. It uses H.264 compression, offers dual streaming, and is compatible with iOS and Android for remote access via your mobile device. - Additional Features
-
- Up to 1600' camera signal transmission over coax
- Digital Deterrent support for up to 8 audio files for sensor or motion detection triggering
- Built-in S.M.A.R.T technology (Self-Monitoring, Analysis, and Reporting Technology for HDD)
- Smart (Museum) Search: Quickly search for a specific video event without the need for motion setup
- Up to 12 simultaneous users for live viewing, 1 user for playback
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control over a network
- Network accessible via SpecoTech Multi-Client Software, SecureGuard, Web-Viewer, and Speco Player Mobile app (iOS/Android)
- Windows and Mac compatible
UPC: 030519023122 In the Box Speco Technologies 8-Channel 4MP HD-TVI DVR with 8TB HDD IR Remote Control Mouse Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 8-Channel 4MP HD-TVI DVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VX Series Specs | Camera Inputs | 8 x BNC (Supporting 1-4 MP HD-TVI Cameras) | | Distance Supported | Up to 1600' / 488 m over Coax | | Video Output | Main Monitor:
1 x VGA / 1 x HDMI Type A (1920 x 1080 Max.)
Sub Monitor:
1 x BNC (Composite or Spot Selectable) | | Live View | 4 MP at 15 fps
3 MP at 18 fps
2 MP at 30 fps
1 MP | | Audio | 4 x Line Input
1 x Line Output | | Audio Codec | G.711 | | 2-Way Audio | Between Local Port and Network Client | | Alarm Input / Output | 4 x Sensor Inputs (8 with Optional Sensor Box)
1 x Alarm Output | | Serial Port | 1 x RS-485 | | Compression | H.264 | | Recording Resolution | 960H per Channel
Combined:
4 MP: 2688 x 1520 (at 10 fps per Channel)
3 MP: 2304 x 1296 (at 13 fps per Channel)
2 MP: 1920 x 1080 (at 15 fps per Channel) | | Recording Quality Grade | 5 Levels | | Recording Mode | Smart, Continuous, Motion, Sensor, Schedule, Manual | | Pre-Recording | 20 Minutes Max. | | Post-Recording | 60 Seconds Max. | | Search Modes | EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log | | Multi-Decoding | 1, 4, 8 | | Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 | | Backup Modes | USB Drive, External HDD, Network | | Backup Formats | BMP, AVI, Proprietary Format, and EXE | | Huge Backup | 24 Hours Max. | | HDD Support | 1 x HDD Bay, Supports up to 10 TB | | Installed HDD | 8 TB | | USB Storage | 1 x USB on Front
1 x USB on Rear | | User Interface | IR Remote Control (Included), Mouse (Included), Keyboard Controller (Sold Separately) | | Network Interface | 10/100/1000 Base-TX | | Dynamic DNS | Free DDNS | | Dual Streaming | Yes | | Network Access | Mobile: iOS and Android
Web Viewer: Windows (Internet Explorer, Firefox)
PC Client: SpecoTech Multi-Client Viewer and SecureGuard VMS
Mac Client: Speco Client for Mac and SecureGuard VMS | | Remote Setup | Supported | | Languages | English, Spanish, French | | Power Supply Voltage | 12 VDC, 3 A | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20-80% RH | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 11.8 x 9.9 x 2.0" / 30 x 25 x 5 cm | | Weight | 4 lb / 1.8 kg |
