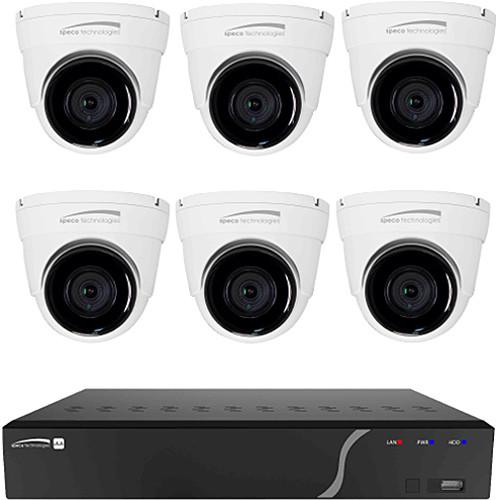

User Manual for Speco Technologies 8-Channel 5MP NVR with 2TB HDD & 6 x 5MP Outdoor Network Turret Cameras Click to enlarge the picture
Contents of the user manual for the Speco Technologies 8-Channel 5MP NVR with
- Product category: Surveillance Systems Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Surveillance Systems
|
User manual for the Speco Technologies 8-Channel 5MP NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Monitor your property with the 8-Channel 5MP NVR with 2TB HDD & 6 x 5MP Outdoor Network Turret Cameras from Speco Technologies. The 8-channel NVR manages and can record from up to 8 cameras. It comes preinstalled with a 2TB HDD. HDD capacity is expandable to 8TB if more storage space is required. H.265 and H.264 video compression reduces bandwidth requirements for efficient data storage while maintaining the best possible video quality. Remote viewing is possible via the Speco Gray Viewer for Windows & Mac PCs and the Speco Gray app for iOS & Android.
The included 5MP turret cameras have a 1/2.7" CMOS sensor to capture 2592 x 1944 resolution video. They have a 2.8mm fixed lens with IR LEDs that provide up to 100' of night vision. The cameras are housed in an IP66-rated enclosure that is suitable for outdoor use. - NVR Features
-
- Plug-and-play operation
- HDMI and VGA video output
- RCA audio output
- 4K UHD monitor output
- Gigabit Ethernet port
- 1 x USB 3.0 and 2 x USB 2.0 ports
- Built-in S.M.A.R.T technology (self-monitoring, analysis, and reporting technology for HDD)
- Daylight saving time
- Free US-based DDNS service
- Compatible with Windows 7 or above, Mac OS X 10.9 or above, iOS, Android, Internet Explorer 8-11, and Safari 5.1 or above
- Turret Camera Features
-
- 2.8mm wide-angle lens
- True day and night functionality thanks to IR cut filter
- Digital wide dynamic range and backlight compensation
- White balance modes include auto, manual, and indoor
- Automatic gain control
- Defog
- 3D-DNR
- Dual streaming
- CBR and VBR
- Motion detection
- Privacy masking for up to 4 zones
- IP66-rated enclosure suitable for outdoor use
- Key Features
-
- EZ Wizard for easy network and system setup
- EZ Search enables users to search events from thumbnails
- EZ Record to set up recording resolutions and recording type
- EZ Copy to copy what you are playing onto a USB flash drive
- EZ App Setup enables users to scan a QR code with the app to view your cameras on your mobile device
UPC: 030519025423 In the Box Speco Technologies 8-Channel 5MP NVR with 2TB HDD & 6 x 5MP Outdoor Network Turret Cameras 6 x 60' Ethernet Cables 3' Ethernet Cable HDMI Cable NVR Power Supply Remote Control 2 x AAA Batteries Limited 5-Year Warranty for NVR and Cameras Limited 3-Year Warranty for HDD Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 8-Channel 5MP NVR with 2TB HDD & 6 x 5MP Outdoor Network Turret Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies ZIPK8T2 Specs | | | PoE Ports | 8 | | Recording Resolution | Maximum: 5 MP | | Maximum Bit Rate | 128 Mb/s | | Monitor Output | 1 x HDMI
1 x VGA | | Display Resolutions | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | Video Compression | H.265, H.264 | | Audio Output | 1 x RCA | | USB Ports | 1 x USB 3.0
2 x USB 2.0 | | HDD Capacity | 1 x 8 TB | | HDD Included | 2 TB | | Ethernet | 100/1000M RJ45 port | | Remote Viewing Options | Speco Gray Viewer for Windows 7 or above and Mac OS X 10.9 or above
Speco Gray app for iOS and Android | | Supported Browsers | Internet Explorer 8-11, Safari 5.1 or above | | Event Notification | No space on disk, disk error, video loss, buzzer, show message, send email | | Power Supply | 48 VDC, 1.5 A | | Dimensions (W x H x D) | 11.8 x 2.1 x 8.9" / 300 x 53.3 x 226.1 mm | | | | Image Sensor | 1/2.7" 5 MP CMOS | | Resolution | 2592 x 1944 | | Focal Length | 2.8mm | | Minimum Illumination | 0 lux with IR LEDs on at f/1.2 | | Day/Night | IR cut filter | | IR Range | 100' / 30.5 m (depending on scene reflection) | | Compensation | Digital wide dynamic range, backlight compensation | | White Balance | Auto, manual, indoor | | AGC (Automatic Gain Control) | Supported | | Defog | Supported | | Electronic Shutter Speed | 1/20,000 to 1/5 seconds | | Digital Noise Reduction | 3D-DNR | | Video Compression | H.265, H.264 | | Bit Rate Control | VBR, CBR | | Streaming | 2 streams | | Privacy Masking | Up to 4 zones | | Motion Detection | Supported | | Alarm Trigger | Motion | | Alarm Events | Buzzer alarm, record, post recording, show message, email, full screen, FTP upload | | Ethernet | 10/100M | | Power | 12 VDC (power supply not included) | | Power Consumption | 7 W | | Operating Temperature | -22 to 131°F / -30 to 55°C | | Operating Humidity | 0 to 90%, RH | | IP Rating | IP66 | | Dimensions (Diam. x H) | 3.55 x 3.35" / 90.2 x 85.1 mm | | Weight | 1.5 lb / 0.68 kg | | | | Package Weight | 20.57 lb | | Box Dimensions (LxWxH) | 17.9 x 13.6 x 12.3" |
