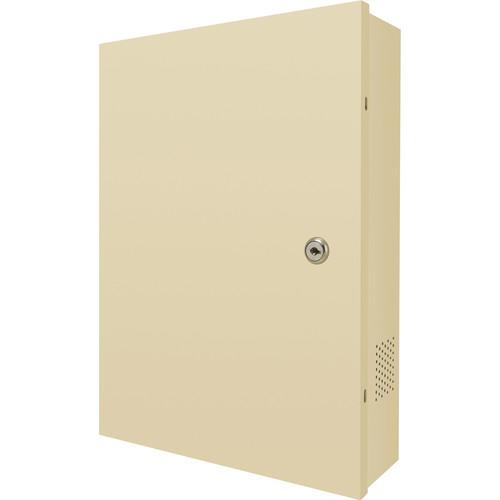

User Manual for Speco Technologies 8-Channel Wall Mount NVR with Digital Deterrent, Built-In Power Supply & Monitor Click to enlarge the picture
Contents of the user manual for the Speco Technologies 8-Channel Wall Mount NVR
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies 8-Channel Wall Mount NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The 1TB 8-Channel Wall Mount NVR with Digital Deterrent, Built-In Power Supply & Monitor from Speco Technologies has 2-way audio communication and an easy and simple graphical user interface. It features remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via Internet.With either Event Recording (Motion) or Alarm In activated in your Speco NVR, the integrated Digital Deterrent feature can generate both Light and Sound warning indicators. This easily mountable unit can be installed in equipment closets or electrical rooms for covert monitoring.The dual network ports of this NVR help isolate the IP camera network traffic and remote network. Multi-browser support on PC based browsers such as Internet Explorer, Google Chrome, Firefox, and Safari offers flexible monitoring across multiple platforms. - EZ Camera: Quickly discovers and installs IP cameras
- EZ Setup: For quick system setup
- EZ Network: For quick set-up on a network
- EZ Search: Quickly search events from thumbnails
- EZ Record: Quickly setup recording resolutions and recording type
- EZ Copy: Auto copy what you are playing onto a USB flash drive
- Plug & play feature with Speco's OnSIP/VIP cameras
- ONVIF support 1
Please Note: Visit Speco Technology for latest ONVIF support close - Dual network ports for isolating IP camera network traffic and remote network
- Built-in power supply and monitor
- Supports all H.264 compression profiles (baseline, main and high)
- Network video recorder with free DDNS server
- Easy and simple graphical user interface
- Digital Deterrent for triggering audio message via motion detection or sensor
- Programmable recording on motion detection, sensor, schedule, continuous, and manual
- Full HD (1920 x 1080) recording and playback
- Supports wireless access point for viewing and configuration
- Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting, Technology for HDD)
- 8-channel or IP camera audio recording
- Covert camera operation provides enhanced security and administrator control
- Password to secure installation authorization
- Easy firmware upgrade by USB port or network
- User Access: Up to 4 concurrent users
- Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via Internet
- Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox, and Safari
- Network accessible via SpecoTech Multi-Client Software, Secure Guard CMS and Speco Player Mobile Viewer
- Multiple language on-screen menus
- Wall mountable (hardware included)
- Network software supports Static IP, DHCP, and DDNS
- Network hardware supports 10/100/1000 Mb/s
- Free Apps with support for view on iPhone, iPad or Android
- USB 2.0 port for snapshot and video clip exporting
- Motion detection (from IP camera)
- Other Features: Internal Beep, Email Notification, DLS (day light savings), Digital Zoom, Dynamic DNS
UPC: 030519012218 In the Box Speco Technologies 8-Channel Wall Mount NVR with Digital Deterrent, Built-In Power Supply & Monitor (1TB) Mounting Hardware IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 8-Channel Wall Mount NVR with Digital Deterrent, Built-In Power Supply & Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies N8WNSPM Specs | | | Input | IP Camera: 8
Resolution: Maximum 1920 x 1080 | | Output | Main Monitor: VGA and HDMI
Sub Monitor: CVBS | | | | Input & Output | 8 line input & 1 line output | | Audio Codec | G.711 | | | | Sensor Input | IP Camera (Network): 8
Local Input (Terminal Block): 4 | | Alarm Output | Local (Terminal Block): 1 | | | | LAN | IP Camera, Auto Connection: 10/100 Base-TX Ethernet | | WAN | IP Camera, Remote Access: 10/100 Base-TX Ethernet | | Protocols | TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, TRP, RTSP, ONVIF | | Throughput | 20 Mb/s | | | | Compression | H.264 (baseline, main, and high profile) | | Multi-Operation | Quadplex (play, record, network, backup) | | Resolutions & Frame Rates | 1280 x 720: 240 fps
1920 x 1080: 240 fps | | Recording Mode | Continuous / Motion / Sensor / Schedule / Manual | | Pre-Recording Function | Maximum 20 minutes | | Post Recording | Maximum 60 seconds | | | | Search | EZ Search, date/time, event, archive, log | | Multi-Decoding | 1, 4, 8 | | | | Media | USB Drive, External HDD, Network | | File Format | BMP, AVI, Proprietary Format | | Large Backup | Yes (maximum 24 hours) | | | | Storage Capacity | 1 TB | | HDD | Capacity of 1 HDD: 3 TB
Internal HDDs: 3 | | Interface | 1 x SATA
3 x USB | | | | Input Method | IR, mouse, keyboard controller | | | | Viewer | Smartphone Viewer: iPad / iPhone / Android
PC Web Viewer: Windows (IE, Chrome, Firefox, Safari) | | Client | PC: SpecoTech Multi-Client Viewer and Secure Guard CMS
MAC: Speco Client for MAC and Secure Guard CMS | | | | Power Supply Voltage | 12 VDC, 5 A | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | | | Dimensions (W x H x D) | 13.5 x 17.0 x 3.5" (34.3 x 43.2 x 8.9 cm) | | Weight | 12.00 lb (5.44 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 22.5 x 16.2 x 6.5" |
