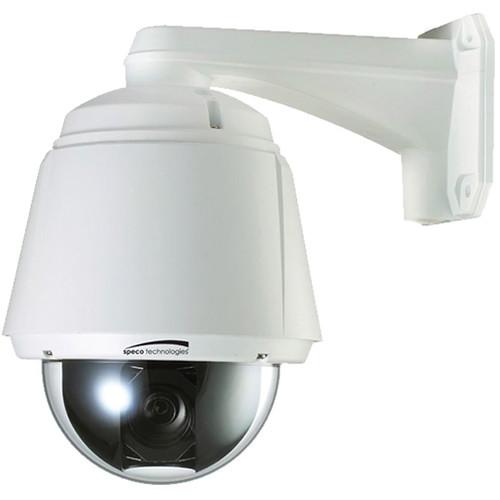

User Manual for Speco Technologies 960H Indoor Outdoor PTZ Speed Dome Camera with 3.5-98mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies 960H Indoor Outdoor PTZ
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies 960H Indoor Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Featuring 360° endless pan, 90° tilt, and extended optical zoom, at fast rates per second, this Speco Technologies PTZ Speed Dome Camera offers efficient and comprehensive surveillance for indoor and outdoor environments. This efficiency is enhanced with 209 preset positions, image stabilization, adjustable digital noise reduction, and wide dynamic range among other features.
Capture video at 700 TV lines of resolution at focal lengths from 3.5-98mm and angle of view from 55.5-1.59° (horizontal). Night vision mode can be set to switch on manually or automatically, and will capture clear black and white images when the environment is dark whether used indoors or outdoors. A secure wall mount is included and a ceiling mount is available separately. - Key Features
-
- 360° endless pan
- 90° tilt
- 28x optical zoom
- Fast rates per second
- 209 preset positions
- Image stabilization
- Adjustable digital noise reduction
- Wide dynamic range
- 700 TV lines of resolution
- 3.5-98mm focal length
- 55.5 - 1.59° horizontal angle of view
- Automatic/manual night vision
- Wall mount included
UPC: 030519014700 In the Box Speco Technologies 960H Indoor/Outdoor PTZ Speed Dome Camera with 3.5-98mm Lens Main Unit Wall Mount Bracket Accessories User Manual Limited 1-Year Warranty Manual PDF 1.3mbxucdsbcfxsvqeuxaztcdzybryazfaubdrfab Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies 960H Indoor Outdoor PTZ Speed Dome Camera with 3.5-98mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTSD28XH Specs | Image Sensor | 1/4" Sony Super HAD II (Double Scan) CCD | | Resolution | 700 TV lines | | Minimum Illumination | Color: 0.5 lux, B/W: 0.2 lux | | S/N Ratio | 50 dB | | Effective Pixels | 976 (H) x 494 (V) | | Total Pixels | 1020 (H) x 508 (V) | | Zoom | 28x optical zoom / 32x digital zoom | | Focal Length | 3.5-98 mm | | Angle of View | (H) 55.5° (wide) - 1.59° (tele), (V) 42.5° (wide) - 1.19° (tele) | | White Balance | Automatic, Manual (red, blue gain adjustable) | | TV System | NTSC | | Day/Night | Auto / Day / Night (ICR) | | Focus | Auto / Manual / Semi-Auto | | Exposure | Auto / Iris / Shutter / Manual | | Light Compensation | WDR / BLC / HLC / Off | | DNR | Adjustable | | Privacy Zone | 8 masks, spherical coordinate | | Image Stabilization | On / Off | | Pan Range | 360° endless | | Tilt Range | 90° | | Speed | Preset: 500°/sec
Jog: 0.05 - 360°/sec
Swing: 1 - 180°/sec | | Presets | 209 positions | | Patterns | 8 patterns (880 commands) | | Swings | 10 swings | | Groups | 8 groups (max 40 actions of a combination of preset, pattern, and swing) | | Schedule | 8 schedules | | RTC | RTC battery backup time (2 weeks) | | Serial Communication | RS-485 | | Protocol | Pelco-D, Pelco-P | | Sensor Input | 3 inputs, photo-coupler type, 5-12 VDC | | Alarm Outputs | 1 output, relay output, max load 24 VDC, 1 A / 125 VAC, 0.5 A | | Fan | Always on | | Heater | Operational at internal temperature of 50°F (10°C) and above | | Material | Dome & Mounts: Polycarbonate
Internal: Polycarbonate, ABS
External: Aluminum | | Color | White housing | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Power Supply | 12 VDC, 24 VAC (power supply not included) | | Power Consumption | 12 VDC, 1.8 A / 24 VAC, 1.8 A | | Dimensions | Dome: 7.9" diameter x 8.7" height (20 cm diameter x 22 cm height)
Complete Unit with Wall Mount: 4.7 x 5.5 x 11.8" (11.9 x 14 x 30 cm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 11.0" |
