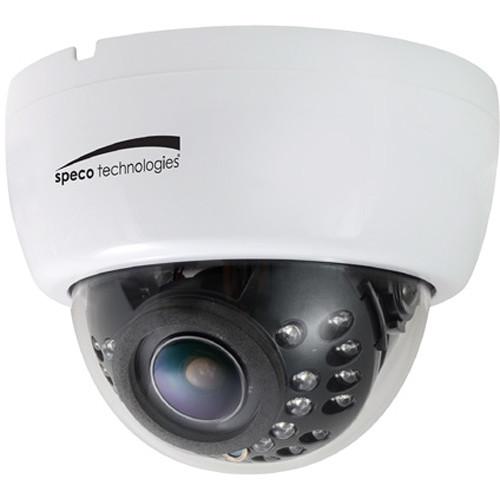

User Manual for Speco Technologies CLED32DTW 2MP HD-TVI Dome Camera with Night Vision and 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies CLED32DTW 2MP HD-TVI Dome
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies CLED32DTW 2MP HD-TVI Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The white CLED32DTW 2MP HD-TVI Dome Camera with Night Vision and 2.8-12mm Lens from Speco Technologies uses a 2MP 1/3" progressive scan CMOS sensor and a 2.8-12mm varifocal lens to transmit 1080p resolution video at 30 fps. Twenty-four IR LEDs provide up to 65' of night vision. HD-TVI and CVBS signal outputs are supported. The UTC (Up-the-Coax) connection allows for OSD control of the camera. - Supports HD-TVI and CVBS signal outputs
- Mechanical IR cut filter for true day and night functionality
- Full OSD operation via UTC (Up-the-Coax) control
- Backlight compensation, highlight compensation, and wide dynamic range
- Image settings include sharpness, gamma, mirror, flip, digital wide dynamic range, and defog
- Privacy masking for up to 15 zones
- 3-axis design for wall and ceiling mounting (mounts available separately)
UPC: 030519024457 In the Box Speco Technologies CLED32DTW 2MP HD-TVI Dome Camera with Night Vision and 2.8-12mm Lens (White) Mounting Screws Test Monitor Lead DC Lead Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies CLED32DTW 2MP HD-TVI Dome Camera with Night Vision and 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies CLED32DTW Specs | Image Sensor | 2 MP 1/3" progressive scan CMOS | | Resolution | 1920 x 1080 at 30 fps | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Lens Type | 2.8-12mm varifocal lens | | Video Output | HD-TVI (1080p), CVBS (960H)
1 V p-p, 75 Ohms | | Minimum Illumination | 0 lux with IR on | | S/N Ratio | >50 dB | | Shutter Speed | 1/30,000 to 1/30 seconds (auto, manual) | | Mechanical IR Cut Filter | True day and night operation | | Day/Night | Auto, color, B&W, external | | IR Range | 65' / 19.8 m (depending on scene reflection) | | Number of IR LEDs | 24 | | IR Wavelength | 850 nm | | Communication | UTC (Up-the-Coax) | | OSD | Full OSD operation via UTC | | Signal Range | Up to 1600' / 488 m | | Test Monitor Output | CVBS (BNC out in yellow) | | Synchronization | Internal | | DNR | 2D-DNR and 3D-DNR | | Image Settings | Sharpness, gamma, mirror, flip, digital wide dynamic range, defog | | Privacy Masking | Up to 15 zones | | White Balance | ATW | | Backlight | BLC, HLC, WDR | | Motion Detection | Yes | | TV System | NTSC | | Housing | High-impact ABS | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Power Supply | 12 VDC (available separately) | | Power Consumption | Maximum 300 mA | | Certifications | FCC, RoHS | | Dimensions (Diam. x H) | 4.4 x 3.4" / 111.8 x 86.4 mm | | Weight | 8 oz / 227 g | | | | Package Weight | 0.725 lb | | Box Dimensions (LxWxH) | 5.5 x 5.45 x 4.0" |
