User Manual for Speco Technologies CLPR67H 960H License Plate Camera with 5-50mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies CLPR67H 960H License Plate
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies CLPR67H 960H License Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

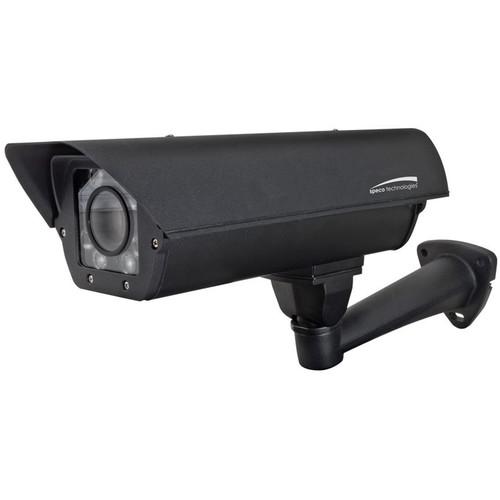

Product description The black CLPR67H 960H License Plate Camera from Speco Technologies uses a 1/3" 960H CCD image sensor and 5-50mm auto iris varifocal lens to capture images at up to 700 TVL. This day/night camera comes with 8 built-in IR LEDs that help capture images at a minimum illumination of 0 lux. It comes with an IP66-rated housing that provides protection from dust and moisture, ensuring uninterrupted surveillance in exposed locations. The camera can capture images of license plates traveling at speeds up to 110 mph. - 5-50mm f/1.4 auto iris varifocal lens
- Internal adjustments for zoom & focus
- Day/night performance even in very low light conditions
- High-contrast imaging performance that delivers sharp and clear license plate captures
- Captures license plates on vehicles traveling at up to 110 mph
- IP66 weather-resistant enclosure
UPC: 030519017114 In the Box Speco Technologies CLPR67H 960H License Plate Camera with 5-50mm Varifocal Lens & Night Vision Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies CLPR67H 960H License Plate Camera with 5-50mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Speco Technologies CLPR67H 960H License Plate Camera with 5-50mm Varifocal Lens & Night Vision can be downloaded in PDF format at the link stated below.
Technical parametersSpeco Technologies CLPR67H Specs | Image Sensor | 1/3" 960H CCD | | Resolution | 700 TVL | | Minimum Illumination | 0 lux (with IR LEDs on) | | Effective Pixels (H x V) | 1020 (H) x 508 (V) | | Camera Type | Monochrome | | Number of LEDs | 8 | | IR Range | 16 to 98' (4.9 to 30 m) depending on scene reflection | | IR LEDs | 850 nm | | TV System | NTSC | | Viewing Angle | Horizontal: 35° (wide) to 8° (tele)
Vertical: 38° (wide) to 10° (tele) | | S/N Ratio | More than 52 dB | | Video Output | 1.0 V p-p / 75 Ohms | | Scanning System | 2:1 interlaced | | Power Supply | 12 VDC (power supply included) | | Power Consumption | 1500 mA (with inner heater and fan) | | Operating Humidity | - 22 to 140°F (-30 to 60°C) | | Housing | Compact die cast aluminum with sunshield | | Dimensions (Ø x D) | 5.5 x 19.3" (14 x 49 cm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 18.0 x 11.0 x 8.0" |
