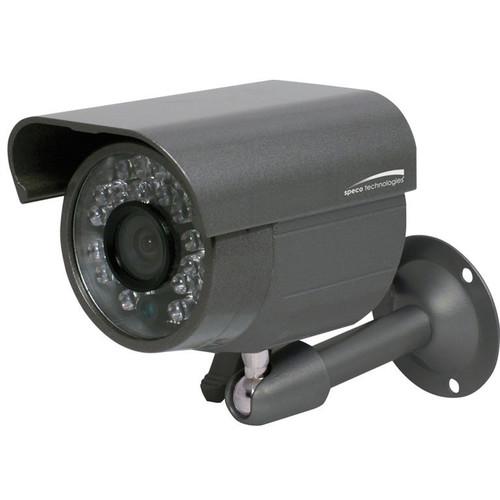

Product description The dark gray CVC617T 2MP Outdoor HD-TVI Bullet Camera with Night Vision from Speco Technologies uses a 1/3" progressive scan CMOS sensor and a 3.6mm fixed lens to transmit 1920 x 1080 resolution analog video at 30 fps. Twenty-four IR LEDs provide up to 65' of night vision. The camera supports an HD-TVI signal output. The UTC (Up-the-Coax) connection enables full OSD operation of the camera.
This camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - 12 VDC power (power supply available separately)
- Full OSD operation via UTC
- Additional analog output for 960H resolution
- Includes mounting bracket with screws
UPC: 030519021746 In the Box Speco Technologies CVC617T 2MP Outdoor HD-TVI Bullet Camera with Night Vision Mounting Bracket with Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies CVC617T 2MP Outdoor HD-TVI Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies CVC617T Specs | Image Sensor | 2 MP 1/3" Progressive Scan CMOS | | Scanning System | 2:1 Interlaced | | Resolution | 1920 x 1080 at 30 fps | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Lens | 3.6mm | | Minimum Illumination | 0 lux with IR LEDs | | IR Range | 65' / 20 m | | Number of IR LEDs | 24 | | Synchronization | Internal | | S/N Ratio | 50 dB | | Video Output | HD-TVI and Additional 960H Analog Output
CVBS: 1 V p-p / 75 Ohms | | Electronic Shutter Speed | 1/100,000 to 1/60 Seconds | | Backlight Compensation | Automatic | | Automatic Gain Control | Supported | | Communication | UTC (Up-the-Coax) | | OSD Control | Full OSD Operation via UTC | | Power Consumption | IR LED Off: 120 mA
IR LED On: 350 mA | | Power Supply | 12 VDC (Available Separately) | | Operating Temperature | 14 to 120°F / -10 to 49°C | | IP Rating | IP66 | | Dimensions (Diam. x L) | 2.36 x 3.36" / 60 x 85.3 mm | | Weight | 12.8 oz / 363 g | | | | Package Weight | 1.17 lb | | Box Dimensions (LxWxH) | 5.1 x 5.0 x 3.3" |
