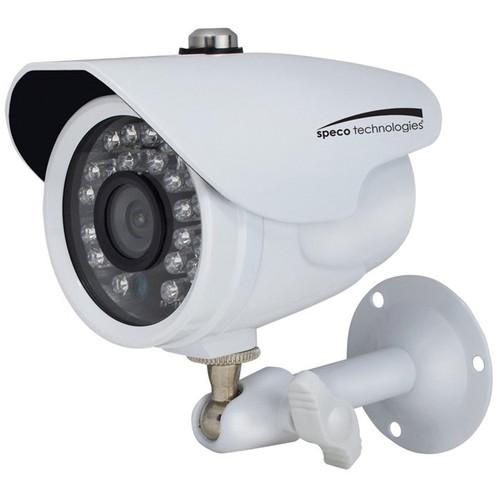

User Manual for Speco Technologies CVC627MT 2MP Outdoor HD-TVI Marine Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies CVC627MT 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies CVC627MT 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The CVC627MT from Speco Technologies uses a 1/3" progressive scan CMOS sensor and a 3.6mm fixed lens to transmit 1920 x 1080 resolution video at 30 fps. 24 IR LEDs provide up to 65' of night vision. The camera supports an HD-TVI signal output. The UTC (Up-the-Coax) connection enables full OSD operation of the camera (TVI only).
This camera is housed in an IP67-rated enclosure that is suitable for outdoor use. A mounting bracket is included for installation. - Suitable for marine applications
- 12 VDC and 24 VAC dual voltage operation (power supply available separately)
- Full OSD Operation via UTC (Up-the-Coax)
- Analog output for 960H resolution
- Signal distance up to 1600'
UPC: 030519021692 In the Box Speco Technologies CVC627MT 2MP Outdoor HD-TVI Marine Bullet Camera with Night Vision 10' Power/Video Cable Mounting Screws Mounting Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies CVC627MT 2MP Outdoor HD-TVI Marine Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies CVC627MT Specs | Image Sensor | 2 MP, 1/3" progressive scan CMOS | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Resolution | 1920 x 1080 at 30 fps | | Lens | 3.6mm fixed lens | | Minimum Illumination | 0 lux with IR LEDs on | | Number of IR LEDs | 24 | | IR Range | 65' / 20 m (depending on scene reflection) | | Electronic Shutter | 1/30,000 to 1/30 seconds (auto, manual) | | S/N Ratio | >50 dB | | Synchronization | Internal | | OSD Control | Full OSD operation via UTC (TVI only) | | Signal Range | Up to 1600' / 488 m (depending on coax quality) | | Scanning System | 2:1 interlaced | | Video Output | HD-TVI and additional 960H analog output
1 V p-p / 75 Ohms | | TV System | NTSC | | Power Supply | 12 VDC / 24 VAC (power supply not included) | | Power Consumption | 12 VDC: 350 mA
24 VAC: 300 mA | | Operating Temperature | 14 to 120°F / -10 to 49°C | | IP Rating | IP67 | | Dimensions (W x H x L) | 2.47 x 2.74 x 4.01" / 62.7 x 69.6 x 102 mm | | Weight | 12 oz / 340.2 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.2 x 4.1 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
