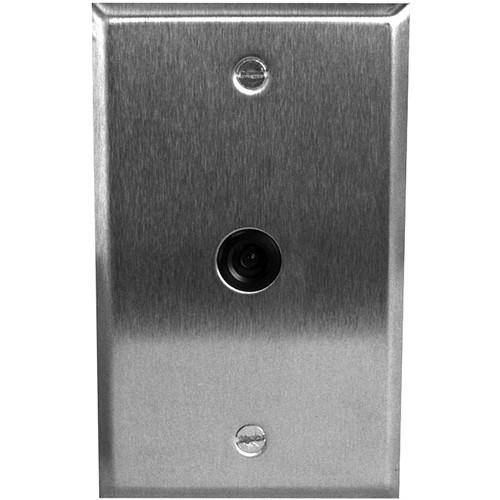

User Manual for Speco Technologies CVC675 960H In-Wall Color Camera with 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies CVC675 960H In-Wall Color
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies CVC675 960H In-Wall Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The 1/3” Sony Super HAD II color CCD sensor of the CVC675 960H In-Wall Color Camera with 3.6mm Lens (NTSC) from Speco Technologies captures clear images and records videos in 700 TVL resolution. The camera fits in the included single gang electrical box and is effective even in low-light conditions with a minimum illumination of 0.001 lux. This color camera is housed in a brushed stainless steel faceplate. - 1/3" Sony Super HAD II color CCD sensor captures clear images and records videos in 700 TVL resolution
- Captures clear images even under low-light conditions with a minimum illumination of 0.001 lux
- Brushed stainless steel faceplate complements any décor
- High signal-to-noise ratio of >52 dB eliminates noisy signals to give clear video output
- Fits in the included single gang electrical box
UPC: 030519994163 In the Box Speco Technologies CVC675 960H In-Wall Color Camera with 3.6mm Lens (NTSC) Single Gang Electrical Box UL & CSA Listed Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies CVC675 960H In-Wall Color Camera with 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies CVC675 Specs | Image Sensor | 1/3" Sony Super HAD II color CCD | | Resolution | 700 TVL | | Minimum Illumination | 0.001 lux (Sens-up on) | | Effective Pixels (H x V) | 976 x 494 | | Scanning System | 2:1 interlace | | Lens | 3.6 mm | | Angle of View | Horizontal: 72°
Vertical: 53° | | Connections | Video: RCA, Power: DC jack | | Scanning frequency (H, V) | 15.75 kHz/60 Hz | | Electronic Shutter | 1/60 to 1/100,000 sec | | Synchronization | Internal | | Video Output | 1.0 Vpp/75 Ω | | Video S/N Ratio | >52 dB | | Housing | Stainless steel | | Operating Temperature / Humidity | 14 to 122°F (-10 to 50°C) / within 90% RH | | Power Consumption | 110 mA | | Power Supply | UL & CSA listed regulated 12 VDC power supply included | | Dimensions (W x L x H) | 2.75 x 2.75 x 4.25" (6.98 x 6.98 x 10.79 cm) | | Weight | 3.45 oz (97.80 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.4 x 5.4 x 3.8" |
