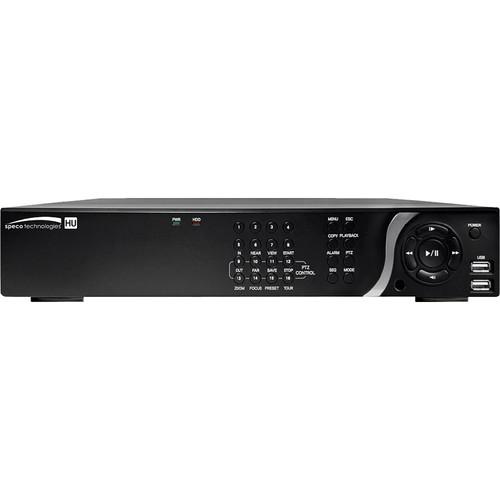

User Manual for Speco Technologies D16HU 16-Channel 4K UHD HD-TVI Hybrid DVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies D16HU 16-Channel 4K UHD
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies D16HU 16-Channel 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Record from and manage up to sixteen cameras with the D16HU 16-Channel 4K UHD HD-TVI Hybrid DVR with 2TB HDD from Speco Technologies at resolutions up to 3840 x 2160. Preinstalled with 2TB of HDD storage, the recorder can be expanded to host a maximum HDD capacity of 40TB. An eSATA port is available for additional storage. H.264 video compression keeps file size manageable while maintaining the best quality possible. The recorder supports HD-TVI and IP cameras. Two-way audio is supported. An HDMI connection provides up to 4K UHD resolution video output. An IR remote control and mouse are included with the recorder. - EZ Wizards simplify use and setup
- HD-TVI and IP recording at up to 8MP over coax
- Each channel is configurable for either IP or HD-TVI
- HDMI, VGA, and CVBS/spot monitor video outputs
- Free US-based DDNS server access
- Motion detection, sensor, schedule, continuous, and manual recording modes
- eSATA port for additional storage
- Event video upload to Google Drive
- Dual Gigabit Ethernet ports to separate camera and LAN traffic
- Smart (Museum) Search allows quick search for specific video events without the need for motion setup
- Instant playback allows for playback of one channel while the other channels stay in Live mode
- Plug & play functionality with OnSIP, VIP, and ZIP cameras
- Signal distance up to 1600'
- Mass alert notification via Twitter
- Two-way audio communication via local and IP camera audio service
- Supports wireless access point for viewing and configuration
- HTTPS support for third-party SSL certificates
- Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Switch between low- and high-quality stream for IP cameras during simultaneous continuous + motion or continuous + sensor recording modes for storage optimization
- Firmware upgrades via USB port or network
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Network software supports Static IP, DHCP, and DDNS
- Compatible with Windows and Mac computers, Internet Explorer, Chrome, Firefox, Safari, SpecoTech Multi-Client Software, SecureGuard VMS, and Speco Player app for iOS and Android
- Windows and Mac compatible
- Rackmountable (hardware included)
- IR remote control & mouse included
UPC: 030519025690 In the Box Speco Technologies D16HU 16-Channel 4K UHD HD-TVI Hybrid DVR with 2TB HDD IR Remote Control Mouse Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies D16HU 16-Channel 4K UHD HD-TVI Hybrid DVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D16HU Specs | | | Input Channels | 16 | | HD-TVI | Channels 1-8, up to 3840 x 2160 | | IP | All Channels, up to 3840 x 2160 | | Recording Bit Rate | 5 Mb/s per Channel Max. | | Video Output | Main Monitor: VGA and HDMI, up to 3840 x 2160
Sub Monitor: CVBS or Spot, Selectable
HD-TVI Loop Outputs: 16 | | | | Inputs | Local: 16
From IP Cameras:16 | | Output | Local: 1 x RCA | | Audio Codec | G.711 | | | | Sensor Input | Local Inputs via Terminal Block: 16
Remote Inputs from IP Cameras: 16 | | Alarm Output | 1 | | | | Compression | H.264 | | Frame Rate / Resolution | HD Analog:
3840 x 2160 (8 MP): 15 fps per Channel
2592 x 1944 (5 MP): 20 fps per Channel
2688 x 1520 (4 MP): 30 fps per Channel
2560 x 1440 (QHD): 30 fps per Channel
2304 x 1296 (3 MP): 30 fps per Channel
1920 x 1080 (2 MP): 30 fps per Channel
IP:
3840 x 2160 (8 MP): 15 fps per Channel | | Recording Quality Grade | 5 Levels | | Recording Modes | Smart, Continuous, Motion, Sensor, Schedule, and Manual | | Pre-Recording | Max. 20 Minutes | | Post Recording | Max. 60 Seconds | | | | Search Modes | EZ Search, Motion Search, Date/Time, Event, Archive, and Log | | Multi-Decoding | 1, 4, 9, 16 | | Playback Speeds | x0.25, x0.5, x2, x4, x8, x16, x32, and x64 | | | | Media | USB Drive, External HDD, and Network | | Format | BMP, AVI, and Proprietary Format | | Huge Backup | 24 Hours Max. | | | | SATA Interface | 4 x Internal SATA Ports | | Capacity | Up to 40 TB Total
2 TB Preinstalled | | eSATA | 1 | | RAID Levels Supported | HDDs/eSATA: 1, 5, and 10 | | USB Ports | Front: 2
Rear: 2 | | | | Input Method | Front Buttons, IR Remote Control, Mouse, and Keyboard Controller | | | | Interface | 2 x 10/100/1000Base-TX, Private (IP Cameras, Auto Connection) and LAN (IP Cameras or Remote Access) | | Dynamic DNS | Yes (Free DDNS) | | Dual Encoding | Yes | | | | 3G Mobile Viewer | iPad, iPhone, and Android | | Web Viewer | Windows (Internet Explorer, Chrome, Firefox, Safari) | | Windows Client | Single/Multi-Client Viewer and SecureGuard VMS | | Remote Setup and Upgrade | Yes | | Streaming | Local Channel: 640 x 360 at 30 fps per Channel, 320 x 180 at 30 fps per Channel
IP Channel: Relay of IP Camera's Sub-Stream | | | | Software Upgrade | Via USB or Network | | Other Features | Digital Zoom, DST (Daylight Saving Time), NTP (Network Time Protocol), S.M.A.R.T, Internal Beep, Multi-Language Support, and Email Notifications | | | | Power Supply | 12 VDC, 6.67 A | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80%, Non-Condensing | | Dimensions | 15.0 x 2.8 x 13.4" / 380 x 72 x 340 mm |
