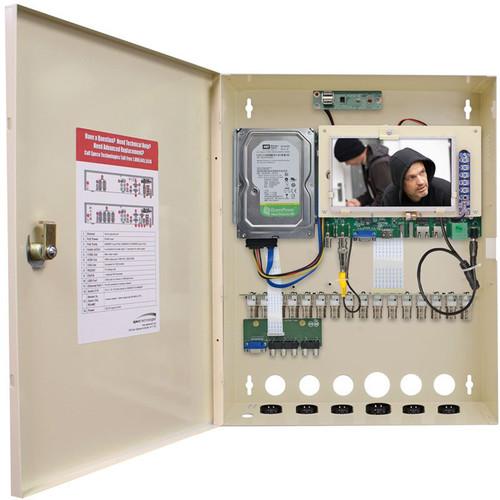

User Manual for Speco Technologies D16WHSM 16-Channel Wall Mount Hybrid Digital Video Recorder with Built-in Monitor Click to enlarge the picture
Contents of the user manual for the Speco Technologies D16WHSM 16-Channel Wall Mount
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies D16WHSM 16-Channel Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The 8TB D16WHSM 16-Channel Wall Mount Hybrid Digital Video Recorder with Built-in Monitor from Speco Technologies offers real-time recording at 30 fps per channel for analog channels at 960H and IP channels at Full HD (1920x1080) resolution. The recorder supports H.264 compression standard, reducing memory constraints while maintaining high quality transmission. The recorder easily mounts in equipment closets or electrical rooms for covert installation. - EZ Wizards
Camera: Quickly discovers and installs IP cameras
Setup: For quick system setup
Network: Network setup and port forwarding
Record: Quickly setup recording resolutions and recording type - EZ Search: Quickly search events from thumbnails
EZ Copy: Auto copy what you are playing onto a USB flash drive - Patented DVR that mounts in equipment closets or electrical rooms for covert installation
- Real-time recording rate at 30 fps per channel for analog channels at 960H and IP channels at Full HD (1920x1080) resolution
- Up to 5MP resolution on channel 1
- Plug & play feature with Speco's OnSIP/VIP/ZIP cameras
- Dual network ports for isolating IP camera network and remote network traffic
- Each channel is configurable for either IP or analog
- Networkable hybrid DVR with free Speco DDNS server
- Digital Deterrent for triggering audio message via motion detection or sensor
- 2-way audio communication
- Programmable recording on motion detection, sensor, schedule, continuous and manual
- Supports wireless access point for viewing and configuration
- Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
- Easy firmware upgrade by USB port or network
- User access for up to 4 concurrent users
- Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via Internet
- Network software supports Static IP, DHCP and DDNS
- Network accessible via SpecoTech Multi-Client Software, SecureGuard Plus CMS, Internet Explorer Web-Viewer and Speco Player Mobile Viewer
- IR remote control & mouse included
- Rack mountable (hardware included)
UPC: 030519010740 In the Box Speco Technologies D16WHSM 16-Channel Wall Mount Hybrid Digital Video Recorder with Built-in Monitor (8TB) IR Remote Control Mouse Rack Mount Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies D16WHSM 16-Channel Wall Mount Hybrid Digital Video Recorder with Built-in Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D16WHSM Specs | | | Input | 16 | | Output | HDMI: 1 x HDMI (1280x720 / 1920x1080)
VGA: 1 x VGA (1280x720 / 1920x1080)
CVBS: 1 main
SPOT: 1 (Analog channels only)
Loopouts: 16 (Analog channels only) | | | | Input | 16 | | Output | Local Output (RCA): 1 | | Audio Codec | G.711 | | | | Sensor Input | Local Input: 4
Remote Input from IP Camera: 16
Alarm Output: 1 | | | | Ports | RS-232C: Debugging Only: 1
RS-485: PTZ: 1 | | | | Compression | H.264 (baseline, main, high profile) | | Resolution | IP: 2592x1944 (5 MP): Channel 1 only
1920x1080 (1080p): 480 fps
1280x720 (720p): 480 fps
Analog: 960H: 480 fps, D1: 480 fps, CIF: 480 fps | | Recording Quality Grade | 5 levels | | Recording Mode | Continuous / Motion / Sensor / Schedule / Manual / Continuous + Sensor / Continuous + Motion | | Pre-Recording | Maximum 20 minutes | | Post Recording | Maximum 60 seconds | | | | Search | EZ Search, Date/Time, Event, Archive, Log | | Multi-Decoding | 1, 4, 9, 16 | | Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 | | | | Media | USB Drive, External HDD, Network | | Format | BMP, AVI, Proprietary Format | | Large Backup | Yes (maximum 24 hours) | | | | HDD | Supported Maximum Capacity: 4 TB
Maximum Internal HDDs: 2
e-SATA: 1 | | Built-in HDD | 8 TB | | | | USB | 2 front, 1 rear | | Menu Display | GUI | | Input Method | IR, Mouse, Keyboard Controller | | | | Interface | Dual Network Ports 10/100/1000Base-T | | Streaming | IP Channel: Depends on profile
Analog Channel: CIF at 30 fps/channel | | Encoding | Dual Encoding for Network | | Maximum Throughput | 40 Mb/s | | | | Mobile Viewing | Speco Player (Live, Search, PTZ, 2-Way Audio) | | Viewer | IE, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup) | | Client | SpecoTech Multi-Client Viewer and SecureGuard CMS | | Features | Digital Deterrent, Digital Zoom, DLS (Daylight Savings), EZ Record, S.M.A.R.T, Internal Beep, Multi-Language, Dynamic DNS, SW Upgrade, email Notification, NTP (Network Time Protocol) | | | | Power Source | Power Supply Voltage: 12 VDC, 5 A | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity | 20 to 80% RH (non-condensing) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | | | Dimensions (W x H x D) | 13.5 x 17 x 3.5" (34.29 x 43.18 x 8.89 cm) | | Weight | Approximately 17 lb (7.7 kg) |
