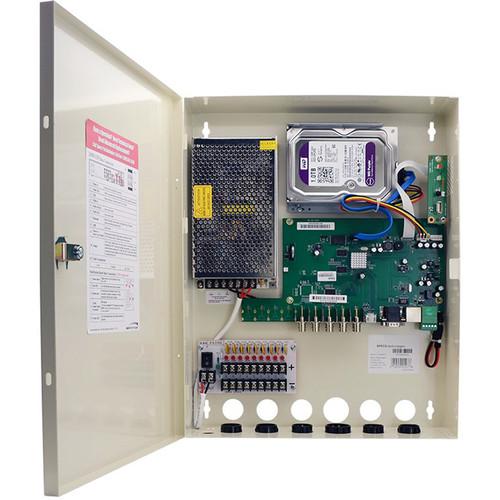

User Manual for Speco Technologies D4WVXP 4-Channel 4MP HD-TVI DVR with Built-In Power Supply Click to enlarge the picture
Contents of the user manual for the Speco Technologies D4WVXP 4-Channel 4MP HD-TVI
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies D4WVXP 4-Channel 4MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Stream and record up to four video channels with the D4WVXP HD-TVI DVR with Built-In Power Supply from Speco Technologies at resolutions of up to 4MP. Equipped with one HDD port, this DVR can accommodate up to 10TB of internal storage (1TB preinstalled). The recorder supports HD-TVI and 960H analog cameras and uses H.264 video compression to keep file sizes manageable while upholding recording and playback quality. The DVR's interface includes audio ports for four-channel audio recording and two-way audio communication, as well as HDMI, VGA, and CVBS connections for video output with support for dual streaming to maximize bandwidth efficiency. Included with the recorder are an IR remote control and a mouse. - EZ wizards for easy setup and use
- Surface or flush mountable
- Mounts in equipment closets or electrical rooms for covert installations
- HD-TVI recording at up to 4MP at 15 fps over coax
- Backward compatible with all analog cameras
- UTC function allows for zoom/focus and OSD control over coax
- Tamper-resistant housing made of 20-gauge powder-coated steel
- Free US-based DDNS server access
- Signal distance up to 1600'
- HDMI, VGA, and CVBS video outputs
- Digital Deterrent supports up to eight audio files for triggering during sensor or motion detection
- Two-way audio communication
- Four-channel audio recording
- Password authentication prevents unauthorized installation
- Smart (Museum) Search allows quick search for specific video events without the need for motion setup
- Easy firmware upgrade by USB port
- Instant backup via USB flash drive
- Supports multiple Windows-based browsers including Internet Explorer and Firefox
- Simultaneous playback/record while continuing network transfer or backup
- Up to 12 concurrent users for live viewing; one user for playback
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Network accessible via SpecoTech Multi-Client Software, SecureGuard, Web-Viewer, and Speco Player Mobile app
- Windows and Mac compatible
- IR remote control and mouse included
In the Box Speco Technologies D4WVXP 4-Channel 4MP HD-TVI DVR with Built-In Power Supply (1TB HDD) IR Remote Control Mouse Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies D4WVXP 4-Channel 4MP HD-TVI DVR with Built-In Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D4WVXP Specs | | | Input Channels | 4 | | Supported Camera Types | 960H and HD-TVI, 1/2/3/4 MP | | Video Output | Main Monitor: VGA and HDMI, 1920 x 1080 Resolution Max.
Sub Monitor: CVBS or Spot, Selectable | | | | Input & Output | 4-Line Input and 1-Line Output | | Audio Codec | G.711 | | 2-Way Audio | Local Port to Network Client | | | | Sensor Input | 4 | | Alarm Output | 1 | | | | Frame Rate | With 4 MP Cameras: 15 fps per Channel
With 3 MP Cameras: 18 fps per Channel
With 2 MP Cameras: 30 fps per Channel | | | | Compression | H.264 | | Frame Rate / Resolution | 2688 x 1520 (4 MP): 10 fps per Channel
2304 x 1296 (3 MP): 13 fps per Channel
1920 x 1080 (2 MP): 15 fps per Channel | | Recording Quality Grade | 5 Levels | | Recording Modes | Smart, Continuous, Motion, Sensor, Schedule, and Manual | | Pre-Recording | Max. 20 Minutes | | Post Recording | Max. 60 Seconds | | | | Search Modes | EZ Search, Smart (Museum) Search, Timeline, Event, Archive, and Log | | Multi-Decoding | 1, 4 | | Playback Speeds | x0.25, x0.5, x2, x4, x8, x16, x32, and x64 | | | | Media | USB Drive, External HDD, and Network | | Format | BMP, AVI, Proprietary Format, and EXE | | Huge Backup | 24 Hours Max. | | | | Drive Bays | 1 x HDD Bay | | Capacity | Up to 10 TB
1 TB Preinstalled | | USB Ports | Front: 1
Rear: 1 | | | | Input Method | IR Remote Control, Mouse, and Keyboard Controller | | | | Interface | 10/100/1000 Base-TX | | Dynamic DNS | Yes (Free DDNS) | | Dual Streaming | Yes | | | | 3G Mobile Viewer | iPad, iPhone, and Android | | Web Viewer | Windows (Internet Explorer, Firefox) | | Windows Client | SpecoTech Multi-Client Viewer and SecureGuard VMS | | Mac Client | Speco Client for Mac and SecureGuard VMS | | Remote Setup and Upgrade | Yes | | | | Software Upgrade | Via USB | | Supported Languages | English, Spanish, and French | | Digital Deterrent | Default + up to 8 Custom Audio Files | | Internal Beep | By Video Loss and HDD Error | | Other | Digital Zoom, DST (Daylight Savings), EZ Record, S.M.A.R.T, Email Notifications, and NTP (Network Time Protocol) | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80% RH | | Dimensions | 11.5 x 15.0 x 3.5" / 29.2 x 38.1 x 8.9 cm | | Weight | Not Specified by Manufacturer |
