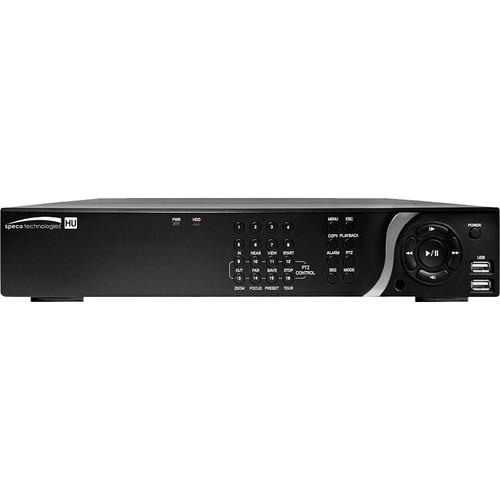

User Manual for Speco Technologies D8HU 8-Channel 8MP HD-TVI Hybrid DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies D8HU 8-Channel 8MP HD-TVI
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
 |
User manual for the Speco Technologies D8HU 8-Channel 8MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

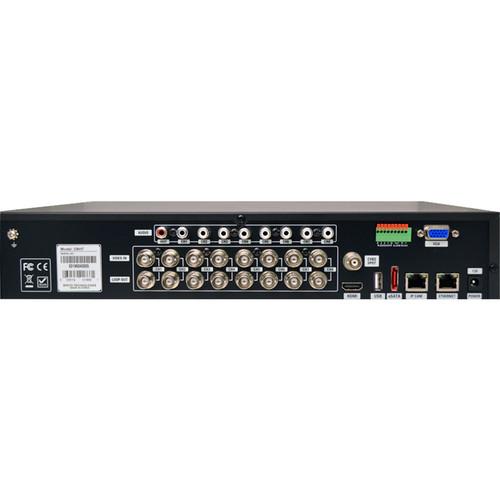

Product description Stream and record up to eight video channels with the D8HU HD-TVI Hybrid DVR from Hikvision at resolutions of up to 8MP. Equipped with four SATA ports, each supporting an HDD of up to 10TB, this DVR can accommodate up to 40TB of internal storage (4TB preinstalled). The recorder supports HD-TVI and IP cameras up to 8MP, and uses H.264 compression to keep file sizes manageable while upholding recording and playback quality. The DVR's interface includes audio ports for eight-channel audio recording and two-way audio communication, as well as HDMI, VGA, and CVBS connections for video output with support for dual streaming to maximize bandwidth efficiency. Included with the recorder are an IR remote control and a mouse. - EZ wizards for easy setup and use
- HD-TVI and IP recording at up to 8MP over coax
- Each channel is configurable for either IP or HD-TVI
- Free US-based DDNS server access
- Motion Detection, Sensor, Schedule, Continuous, and Manual recording modes
- eSATA port for additional storage
- Event video upload to Google Drive
- Dual Gigabit Ethernet ports to separate camera and LAN traffic
- Smart (Museum) Search allows quick search for specific video events without the need for motion setup
- Instant playback allows for playback of one channel while the other channels stay in Live mode
- Plug & play functionality with OnSIP, VIP, and ZIP cameras
- Signal distance up to 1600'
- Mass alert notification via Twitter
- Two-way audio communication via local and IP camera audio service
- Supports wireless access point for viewing and configuration
- HTTPS, support for third-party SSL certificates
- Switch between low- and high-quality stream for IP cameras during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
- Easy firmware upgrade via USB port or network
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Network software supports Static IP, DHCP, and DDNS
- Network accessible via SpecoTech Multi-Client Software, SecureGuard VMS, Internet Explorer Web Viewer, and Speco Player Mobile Viewer
- Windows and Mac compatible
- Rack-mountable (hardware included)

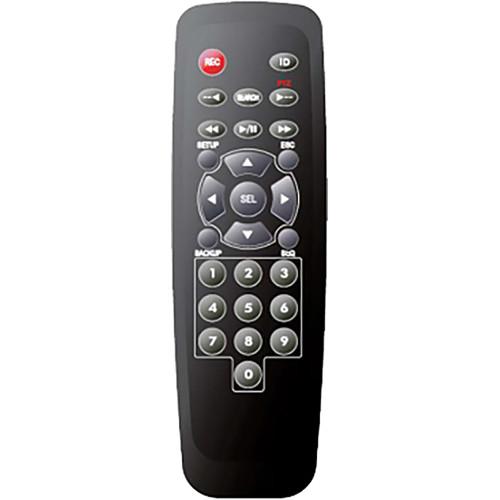

- IR remote control & mouse included
UPC: 030519025607 In the Box Speco Technologies D8HU 8-Channel 8MP HD-TVI Hybrid DVR with 4TB HDD IR Remote Control Mouse Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies D8HU 8-Channel 8MP HD-TVI Hybrid DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D8HU Specs | | | Input Channels | 8 | | HD-TVI | All Channels, up to 3840 x 2160 | | IP | All Channels, up to 3840 x 2160 | | Recording Bit Rate | 5 Mb/s per Channel Max. | | Video Output | Main Monitor: VGA and HDMI, up to 3840 x 2160
Sub Monitor: CVBS or Spot, Selectable
HD-TVI Loop Outputs: 8 | | | | Inputs | Local: 8
From IP Cameras: 8 | | Output | Local: 1 x RCA | | Audio Codec | G.711 | | | | Sensor Input | Local Inputs via Terminal Block: 8
Remote Inputs from IP Cameras: 8 | | Alarm Output | 1 | | | | Compression | H.264 | | Frame Rate / Resolution | HD Analog:
3840 x 2160 (8 MP): 15 fps per Channel
2592 x 1944 (5 MP): 20 fps per Channel
2688 x 1520 (4 MP): 30 fps per Channel
2560 x 1440 (QHD): 30 fps per Channel
2304 x 1296 (3 MP): 30 fps per Channel
1920 x 1080 (2 MP): 30 fps per Channel
IP:
3840 x 2160 (8 MP): 15 fps per Channel | | Recording Quality Grade | 5 Levels | | Recording Modes | Smart, Continuous, Motion, Sensor, Schedule, and Manual | | Pre-Recording | Max. 20 Minutes | | Post Recording | Max. 60 Seconds | | | | Search Modes | EZ Search, Motion Search, Date/Time, Event, Archive, and Log | | Multi-Decoding | 1, 4, 8 | | Playback Speeds | x0.25, x0.5, x2, x4, x8, x16, x32, and x64 | | | | Media | USB Drive, External HDD, and Network | | Format | BMP, AVI, and Proprietary Format | | Huge Backup | 24 Hours Max. | | | | SATA Interface | 4 x Internal SATA Ports | | Capacity | Up to 40 TB Total
4 TB Preinstalled | | eSATA | 1 | | RAID Levels Supported | HDDs/eSATA: 1, 5, and 10 | | USB Ports | Front: 2
Rear: 2 | | | | Input Method | Front Buttons, IR Remote Control, Mouse, and Keyboard Controller | | | | Interface | 2 x 10/100/1000Base-TX, Private (IP Cameras, Auto Connection) and LAN (IP Cameras or Remote Access) | | Dynamic DNS | Yes (Free DDNS) | | Dual Encoding | Yes | | | | 3G Mobile Viewer | iPad, iPhone, and Android | | Web Viewer | Windows (Internet Explorer, Chrome, Firefox, Safari) | | Windows Client | Single/Multi-Client Viewer and SecureGuard VMS | | Remote Setup and Upgrade | Yes | | Streaming | Local Channel: 640 x 360 at 30 fps per Channel, 320 x 180 at 30 fps per Channel
IP Channel: Relay of IP Camera's Sub-Stream | | | | Software Upgrade | Via USB or Network | | Other | Digital Zoom, DST (Daylight Savings), NTP (Network Time Protocol), S.M.A.R.T, Internal Beep, Multi-Language Support, and Email Notifications | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80%, Non Condensing | | Dimensions | 15.0 x 2.8 x 13.4" / 38.0 x 72.0 x 34.0 cm | | Weight | Not Specified by Manufacturer |
