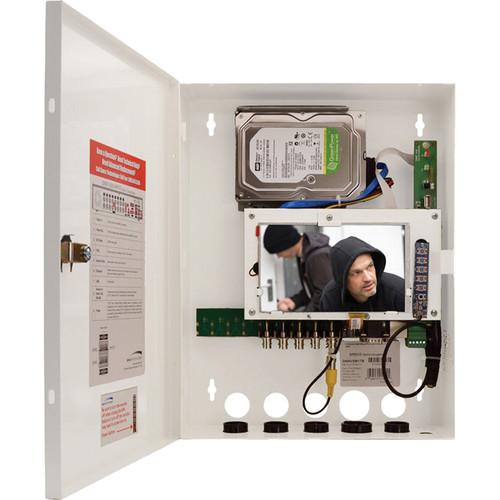

User Manual for Speco Technologies D8WHUM 8-Channel 8MP HD-TVI Hybrid Wall Mount DVR with Built-In Monitor & 8TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies D8WHUM 8-Channel 8MP HD-TVI
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies D8WHUM 8-Channel 8MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Record from and manage up to 8 cameras with the D8WHUM 8-Channel 8MP HD-TVI Hybrid Wall Mount DVR with Built-In Monitor & 8TB HDD from Speco Technologies at resolutions up to 3840 x 2160. Preinstalled with 8TB of HDD storage, the recorder can be expanded to host four HDDs up to 10TB each for a maximum internal capacity of 40TB. The recorder supports HD-TVI and IP cameras, and uses H.264 video compression to keep file sizes manageable while maintaining the best quality possible. Two-way audio is supported via local and IP camera audio service. Dual Gigabit Ethernet ports allow the recorder to separate camera and LAN traffic.
This hybrid recorder is equipped with a built-in monitor. It comes with an IR remote control and mouse. - HDMI, VGA, CVBS/spot monitor, and looping video outputs
- Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Each channel is configurable for either IP or HD-TVI
- Signal distance up to 1600'
- Dual Gigabit Ethernet ports to separate camera and LAN traffic
- eSATA port for additional storage
- Event video upload to Google Drive
- Plug-and-play with Speco IP cameras (available separately)
- EZ Wizards simplify use and setup
- Instant playback allows for playback of one channel while the rest stay in live mode
- Recording modes include smart, continuous, sensor, schedule, and manual
- Switch between low and high quality streams during simultaneous continuous, motion, and sensor recording modes for storage optimization
- Features include digital zoom, daylight saving time, NTP, S.M.A.R.T, internal beep, multi-language, and email notification
- Mass alert notification via Twitter
- Easy firmware upgrade by USB port or network
- Compatible with Windows and Mac computers, Internet Explorer, SecureGuard VMS, and Speco Player app for iOS and Android
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Network software supports Static IP, DHCP and DDNS
- Networkable with free US-based Speco DDNS service
UPC: 030519026789 In the Box Speco Technologies D8WHUM 8-Channel 8MP HD-TVI Hybrid Wall Mount DVR with Built-In Monitor & 8TB HDD IR Remote Control Mouse Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies D8WHUM 8-Channel 8MP HD-TVI Hybrid Wall Mount DVR with Built-In Monitor & 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D8WHUM Specs | | | HD-TVI Input | Maximum 4K UHD (All Channels) | | IP Camera Input | IP Camera (H.264 Only): Maximum 4K UHD (All Channels) | | Recording Bit Rate | Maximum 5 Mb/s per Channel | | Main Monitor Output | VGA and HDMI (Maximum 4K UHD) | | Sub Monitor Output | CVBS or Spot (Selective) | | Loop Output | 8 x HD-TVI | | | | Input | 8 x Local
8 x Remote from IP Camera | | Output | 1 x Local (RCA) | | Codec | G.711 | | | | Sensor In | 8 x Local (Terminal Block)
8 x Remote from IP Camera | | Alarm Output | 1 | | | | Compression | H.264 | | Resolutions & Frame Rates | Per Channel: 3840 x 2160 at 15 fps
Per Channel: 2592 x 1944 at 20 fps
Per Channel: 2688 x 1520 at 30 fps
Per Channel: 2560 x 1440 at 30 fps
Per Channel: 2304 x 1296 at 30 fps
Per Channel: 1920 x 1080 at 30 fps | | IP Resolution | Per Channel: 3840 x 2160 at 15 fps | | Recording Quality Grade | 5 Levels | | Recording Modes | Smart, Continuous, Motion, Sensor, Schedule, Manual | | Pre-Recording | Maximum 20 Minutes | | Post Recording | Maximum 60 Seconds | | | | Search | EZ Search, Motion Search, Date/Time, Event, Archive, Log | | Multi-Decoding | 1, 4, 8 | | Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 | | | | Media | USB Drive, External HDD, Network | | Format | AVI, Proprietary Format | | Huge Backup | Yes, Maximum 24 Hours | | | | HDD | 4 x SATA Ports (10 TB Capacity per Disk) | | HDD Included | 8 TB Preinstalled | | RAID Support | RAID 1/5/10 | | USB Ports | 2 x Front
2 x Rear | | eSATA Port | 1 | | | | Input Method | Front Buttons, IR Remote, Mouse, Keyboard Controller | | | | Private | IP Camera, Auto Connection: 1 x Gigabit Ethernet Port | | LAN | IP Camera or Remote Access: 1 x Gigabit Ethernet Port | | Dynamic DNS | Yes (Free DDNS) | | Dual Encoding | Yes | | | | 3G Mobile Viewer | iPad, iPhone, Android | | Web Viewer | Windows Internet Explorer | | PC Client | Single/Multi-Client and SecureGuard VMS | | Remote Setup and Upgrade | Yes | | Streaming | Local Cameras: 640 x 360 at 30 fps per Channel, 320 x 180 at 30 fps per Channel
Network Cameras: Relay of the IP Camera's Sub Stream | | | | Features | Digital Zoom, Daylight Saving Time, Network Time Protocol, S.M.A.R.T, Internal Beep, Multi-Language, Email Notification | | | | Power Supply | 12 VDC, 5 A | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80% Humidity (Non-Condensing) | | Dimensions (W x H x D) | 16 x 19 x 3.5" / 406.4 x 482.6 x 89 mm |
