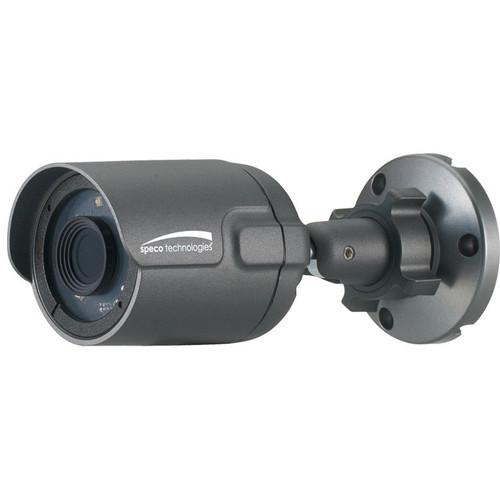

Product description The dark gray Flexible Intensifier 3MP Outdoor Network Bullet Camera from Speco Technologies features a 1/2.8" progressive scan CMOS sensor and 3.6mm fixed lens for capturing videos at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 65'. Enclosed in an IP68-rated housing, the camera can be used for both indoor and outdoor applications. - Flexible Intensifier technology
- Supports up to 3MP at 30 fps
- Built-in standard PoE (IEEE 802.3af)
- Adaptive IR LEDs reduce IR saturation
- True WDR (Wide Dynamic Range) operation
- Built-in heater and anti-fog glass for reducing condensation
- IP68-rated water-resistant housing
- Conforms to ONVIF Profile S
In the Box Speco Technologies Flexible Intensifier 3MP Outdoor Network Bullet Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Flexible Intensifier 3MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O3FB68 Specs | | | Image Sensor | 3 MP 1/2.8" progressive scan CMOS | | Maximum Resolution | 2048 x 1536 | | Focal Length | 3.6mm | | Minimum Illumination | Color: 0.1 lux at f/1.4
B&W: 0 lux at at f/1.4 (IR LED on) | | White Balance | ATW/AWB | | Compensation | WDR | | Day/Night | IR cut filter | | IR Range | 65' (19.8 m) | | Intensifier | Selectable (maximum 8x)/off | | Electronic Shutter Speed | 1/30 to 1/10,000 sec | | DNR | 2D/3D | | | | Resolution | 2048 x 1536, 1920 x 1080, 1280 x 720 at 30 fps | | Compression | H.264 (HP/MP/BP), MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 3 streams | | | | Ethernet | 10/100 Mbps | | Power | DC jack | | | | Protocols | IPv4, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, and DNS | | DDNS Support | Speco DDNS | | Security | User ID and password protection, IP address filtering, and digest authentication | | User Access | Maximum 8 simultaneous users
Actual number of users may vary depending on bandwidth | | | | PoE | Standard (IEEE 802.3af) | | Analytics | Motion detection and tampering | | Alarm Triggers | Analytics | | Alarm Events | FTP upload and email upload | | Image Settings | Privacy mask | | | | Web Browser Support | Windows (Internet Explorer 8 and above) | | Application | PC: SecureGuard VMS
Mobile: SecureGuard mobile (iPhone and Android) | | | | Power Supply | PoE, 12 VDC (power supply sold separately) | | Power Consumption | 5 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 0 to 90% RH | | Certifications | FCC, RoHS | | IP Rating | IP68 | | Dimensions | 3 x 3 x 7.36" (76.2 x 76.2 x 186.9 mm) | | Weight | 1.2 lb (0.54 kg) |
