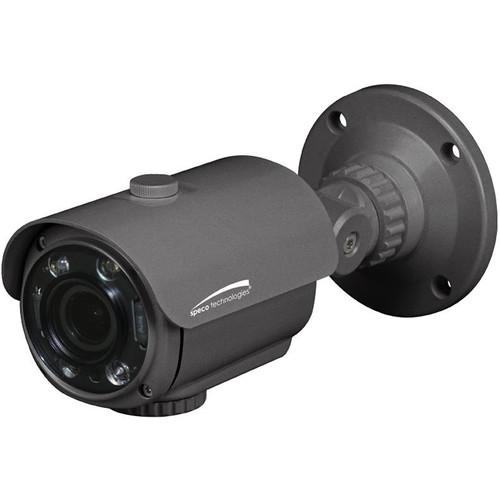

User Manual for Speco Technologies Flexible Intensifier O4FB8M 4MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies Flexible Intensifier O4FB8M 4MP
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies Flexible Intensifier O4FB8M 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The Flexible Intensifier O4FB8M 4MP Outdoor Network Bullet Camera with Night Vision from Speco Technologies has a 4MP 1/3" progressive scan CMOS sensor and a 2.8-12mm varifocal lens to capture 2592 x 1520 resolution video at up to 25 fps. Adaptive IR LEDs and Flexible Intensifier Technology allow the camera to produce clear images at night from up to 100' away. It supports H.265, H.264, and MJPEG compression codecs to help conserve bandwidth while maintaining recording and playback quality. PoE technology and ONVIF compliance simplify installation and ensure compatibility with other devices. This camera is enclosed in an IP66-rated housing for protection against dust and water, making it suitable for outdoor use, and has a built-in heater and anti-fog glass to reduce condensation. - 4MP 1/3" progressive scan CMOS sensor and 2.8-12mm varifocal lens allow the camera to capture 2592 x 1520 resolution video at up to 25 fps
- IR LEDs and Flexible Intensifier Technology allow the camera to produce images in complete darkness from up to 100' away
- RJ45 Ethernet with PoE (IEEE 802.3af) for simplified installation
- Supports H.265, H.264, and MJPEG codecs
- Two-way audio communication
- IP66-rated enclosure for protection against dust and water
- Built-in heater and anti-fog glass to prevent condensation in front of the lens
UPC: 030519021883 In the Box Speco Technologies Flexible Intensifier O4FB8M 4MP Outdoor Network Bullet Camera with Night Vision Mounting Hardware L Wrench GPL License Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Flexible Intensifier O4FB8M 4MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O4FB8M Specs | | | Image Sensor | 4 MP 1/3" progressive scan CMOS sensor | | Maximum Resolution | 2952 x 1520 | | Minimum Illumination | Color: f/1.4, 0.08 lux
B&W: 0 lux with IR LEDs on | | White Balance | Auto, presets, manual | | Compensation | WDR, BLC, HLC | | Day/Night | IR cut filter | | Intensifier | Selectable (maximum 32x), off | | Electronic Shutter Speed | 1/30 to 10,000 sec | | Digital Noise Reduction | 3D-DNR | | | | Resolution | 2592 x 1520 at 25 fps, 2304 x 1296, 1920 x 1080, 1280 x 720 at 30 fps | | Compression | H.265 (MP/BP), H.264 (HP/MP/BP), MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 3 streams | | | | Input | Mono: 64 kbps G.711, 32 kbps G.726 | | Output | Mono: 64 kbps G.711 | | | | Ethernet | 10/100 Mbps | | Alarm | 1 x sensor input, 1 x relay output (terminal block) | | Video | 1 x BNC output for test monitor | | Audio | 1 x mic in, 1 x line out (terminal block) | | Power | DC jack | | | | Protocols | IPv4, TCP, UDP, RTP, RTSP, HTTP, SMTP, FTP, DHCP, UPnP, DNS | | DDNS | Speco DDNS | | Security | User ID and password protection, IP address filtering, digest authentication, user access log | | User Access | Up to 10 simultaneous users | | ONVIF | Profile S | | | | PoE | IEEE 802.3af standard | | Analytics | Motion detection, audio detection | | Alarm Triggers | Analytics and sensor input | | Alarm Events | FTP video file upload, email upload, relay out | | Image Settings | Privacy mask | | | | Web Browser | Microsoft Internet Explorer 8 and later | | Application | SecureGuard VMS | | Mobile OS Support | SecureGuard Mobile for iOS and Android | | | | Power Supply | PoE, 12 VDC (available separately) | | Power Consumption | 9 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 0 to 90% RH | | Heater | Built-in | | IP Rating | IP66 | | Certifications | FCC, RoHS | | Dimensions | 3.9 x 3.9 x 8.3" (100 x 100 x 210 mm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.8 x 6.4 x 5.3" |
