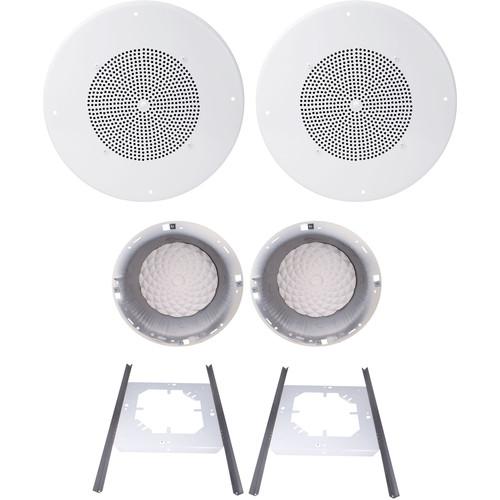

Product description The off-white Speco Technologies G86TCG 8" 70/25V Classic Grille In-Ceiling Speaker Kit includes two 10W RMS G86TCG in-ceiling speakers with volume control knobs, two STH8 back cans, and two TS8 speaker ceiling supports. Great for commercial applications, it provides contractors with a pair of durable speakers and all the necessary hardware required for mounting them in walls or ceilings. - 86 Series G86TCG 70/25V Classic Grille In-Ceiling Contractor Speaker with Volume Control Knob (Off-White) The off-white 86 Series G86TCG 70/25V Classic Grille In-Ceiling Contractor Speaker from Speco Technologies comes with a 70/25V transformer. For easy connections, this transformer is terminated with colored leads. The G86TCG features a volume-control knob centered on the grille.
-
- 70/25V transformer with colored leads
- Off-white steel grille
- Volume-control knob centered on grille
UPC: 030519231060 - Back Can for G86TG and G86TCG Speakers Provided by third party: Our stackable top hat is heavy gauge steel contructed, which protects rear side of speakers from dirt, debris, or other disturbances. It can be used for a back box in ceilings and walls. It has an undercoating that eliminates any mechanical or acoustical resonance caused by vibration. It has rust preventative finish four combination knockouts. It includes 4 J-clips for screw mounting of baffles and perforated mounting straps for 8 inch speaker combinations.
- Speaker Ceiling Support for G86TG and G86TCG Speakers
-
- T-Bar bridge for ceiling support of 8" speakers with grilles, top hats, etc
- 23 5/8" x 14"
UPC: 030519108089 In the Box Bundle Items 2 x 86 Series G86TCG 70/25V Classic Grille In-Ceiling Contractor Speaker with Volume Control Knob (Off-White) bddbtczvdvafedvyxyzvdcrswuaccsarrscb - Limited Lifetime Warranty
2 x Back Can for G86TG and G86TCG Speakers - 4 x J-clips for Screw Mounting of Baffles
- Perforated Mounting Straps for 8 inch Speaker Combinations
2 x Speaker Ceiling Support for G86TG and G86TCG Speakers Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies G86TCG 8" 70 25V Classic Grille In-Ceiling Speaker Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 86 Series G86TCG 70/25V Classic Grille In-Ceiling Contractor Speaker with Volume Control Knob (Off-White)
| RMS Power | 10 W | | Maximum Power | 15 W | | Transformer | Type: 70/25V
Power: 5, 2.5, 1, 0.5, 0.25 W; 8 Ohms
Termination: Colored leads | | Frequency Response | 85 Hz to 20 kHz | | Sensitivity | 1 W per 3' (1 m): 90 dB | | SPL | Pax per 3' (1 m): 100 dB maximum | | Driver | 8.0" (20.3 cm) paper cone woofer; 0.8" (2 cm) dual cone tweeter | | Impedance | Driver: 8 Ohms | | Magnet | 5.0 oz (141.7 g) ferrite | | Dispersion | @ 1000 Hz: 120° conical | | Mounting | Dimension: 11.3" (28.7 cm) diameter
Minimum Depth: 2.7" (6.9 cm) | | Material | Steel grille | | Dimensions | 13.0 x 3.5" (33.0 x 8.9 cm) | | Weight | 2.7 lb (1.2 kg) | | | | Box Dimensions (LxWxH) | 13.3 x 13.2 x 4.0" | - Back Can for G86TG and G86TCG Speakers
- Speaker Ceiling Support for G86TG and G86TCG Speakers
| | | Compatibility | Speco Speaker Grille Combo: |
