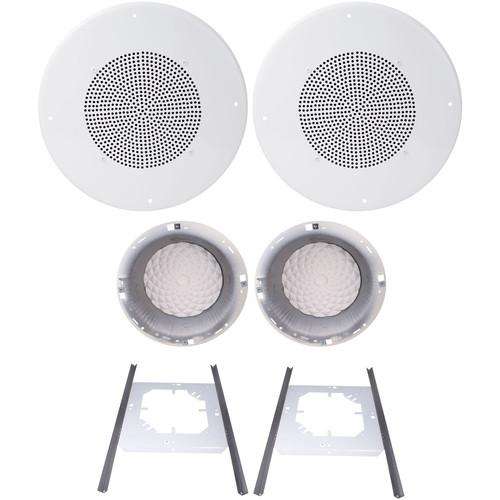

User Manual for Speco Technologies G86TG 8" 70 25V Classic Grille In-Ceiling Speaker Kit

• Product category: Installed Speakers Speco Technologies
• Brand: Speco Technologies
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Speco Technologies Installed Speakers

Product description

• 86 Series G86TG 70/25V Classic Grille In-Ceiling Contractor Speaker (Off-White) The off-white 86 Series G86TCG 70/25V Classic Grille In-Ceiling Contractor Speaker from Speco Technologies comes with a 70/25V transformer. For easy connections, this transformer is terminated with colored leads.
  • • 70/25V transformer with colored leads
    • Off-white steel grille
  UPC: 030519231077
• Back Can for G86TG and G86TCG Speakers Provided by third party: Our stackable top hat is heavy gauge steel contructed, which protects rear side of speakers from dirt, debris, or other disturbances. It can be used for a back box in ceilings and walls. It has an undercoating that eliminates any mechanical or acoustical resonance caused by vibration. It has rust preventative finish four combination knockouts. It includes 4 J-clips for screw mounting of baffles and perforated mounting straps for 8 inch speaker combinations.
• Speaker Ceiling Support for G86TG and G86TCG Speakers
  • • T-Bar bridge for ceiling support of 8" speakers with grilles, top hats, etc
    • 23 5/8" x 14"
  UPC: 030519108089

• Limited Lifetime Warranty

• STH8 Speaker Enclosure

• 4 x J-clips for Screw Mounting of Baffles

• Perforated Mounting Straps for 8 inch Speaker Combinations

• 90 Day Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 86 Series G86TG 70/25V Classic Grille In-Ceiling Contractor Speaker (Off-White)

  RMS Power	10 W
  Maximum Power	15 W
  Transformer	Type: 70/25V Power: 5, 2.5, 1, 0.5, 0.25 W; 8 Ohms Termination: Colored leads
  Frequency Response	85 Hz to 20 kHz
  Sensitivity	1 W per 3' (1 m): 90 dB
  SPL	Pax per 3' (1 m): 100 dB maximum
  Driver	8.0" (20.3 cm) paper cone woofer; 0.8" (2 cm) dual cone tweeter
  Impedance	Driver: 8 Ohms
  Magnet	5.0 oz (141.7 g) ferrite
  Dispersion	@ 1000 Hz: 120° conical
  Mounting	Dimension: 11.3" (28.7 cm) diameter Minimum Depth: 2.7" (6.9 cm)
  Material	Steel grille
  Dimensions	13.0 x 3.5" (33.0 x 8.9 cm)
  Weight	2.7 lb (1.2 kg)

  Box Dimensions (LxWxH)	13.45 x 13.4 x 4.15"

• Back Can for G86TG and G86TCG Speakers

  Material	Steel

• Speaker Ceiling Support for G86TG and G86TCG Speakers

  Device Supported	Speaker

  Material	Steel

  Compatibility	Speco Speaker Grille Combo: G86TG G86TCG
