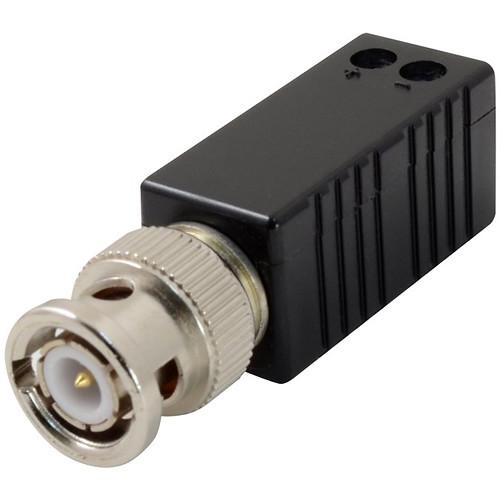

User Manual for Speco Technologies HD-TVI Video Transceiver over UTP Click to enlarge the picture
Contents of the user manual for the Speco Technologies HD-TVI Video Transceiver over
- Product category: Signal Extenders Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Signal Extenders
|
User manual for the Speco Technologies HD-TVI Video Transceiver over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Transmit HD-TVI signals over UTP cables using the HD-TVI Video Transceiver from Speco. The transceiver features a BNC male to screw terminal, and it can send transmissions up to 656' away. The transceiver's compact size allows you to use multiple units behind your equipment without cluttering your setup, making this device suitable for use in retrofits with existing UTP cable. Built-in ESD, EFT, lighting, and transient protection provides clear signals, and the transceiver does not require power as it is a passive device. - Send HD-TVI signals up to 656' over UTP cable
- BNC male to screw terminal for easy connection
- Compact size allows for mounting of multiple units behind multiplexers, quads, and DVRs
- Passive; no power required
- Suitable for retrofits using existing UTP cable
- Built-in ESD, EFT (impulse noise), lighting (surge), and transient protection
- Used in pairs (sold individually)
UPC: 030519017237 Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HD-TVI Video Transceiver over UTP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies TVIUTP Specs | Video Input / Output | 1 x BNC male connector, 1 Vp-p, 75 ohms | | Cable | Twisted pair CAT5 | | Bandwidth | 50 Hz to 60 Mhz (-3 dB) | | Transmission Distance | HD-TVI: 656' / 200 m | | RJ45 Connector | Terminal output | | ESD Protection | 30 KV (air) / 15 KV (contact)
IEC 61000-4-2 compliant | | EFT Protection | 40 A (5/50 ns)
IEC 61000-4-4 compliant | | Lighting Protection | 2 A (8/20 µs)
IEC 61000-4-5 compliant | | Surge Protection | Attack Time: < 1 nS | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95& | | Dimensions | 0.6 x 2.0 x 0.6" / 1.5 x 5.1 x 1.5 cm | | Weight | 0.6 oz / 18.1 g | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 2.9 x 1.5 x 0.8" |
