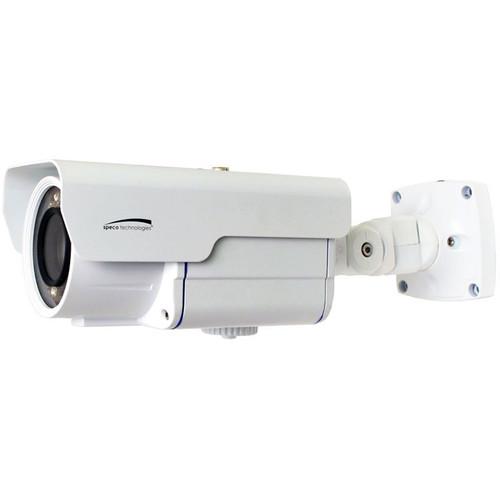

User Manual for Speco Technologies HLPR67T 1080p HD-TVI Outdoor License Plate Camera with Night Vision and 5-50mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies HLPR67T 1080p HD-TVI Outdoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HLPR67T 1080p HD-TVI Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Designed to capture clear views of license plates, the HLPR67T 1080p HD-TVI License Plate Outdoor Camera with Night Vision from Speco Technologies has a 1/3" progressive scan CMOS sensor to capture 1080p video over standard coax cable. Its 5-50mm varifocal lens has a 10x optical zoom with auto focus to monitor distant subjects, such as license plates. The camera has an IR cut filter and IR LEDs to produce clear images in complete darkness from up to 165' away. This camera operates on standard coax cable, eliminating the need for additional cable runs. Its IP66-rated housing makes it suitable for outdoor use. - Designed to capture license plates moving at up to 40 mph
- HD-TVI technology captures 1080p video over coax cable
- IR cut filter and IR LEDs for night vision up to 165'
- Supports up the coax (UTC) control for zoom, focus, and camera's OSD
- IP66-rated for outdoor use
UPC: 030519020206 In the Box Speco Technologies HLPR67T 1080p HD-TVI Outdoor License Plate Camera with Night Vision and 5-50mm Lens Video Test Connector, Power Jack Focus Adjustment Bracket Base Wrench Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HLPR67T 1080p HD-TVI Outdoor License Plate Camera with Night Vision and 5-50mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HLPR67T Specs | Image Sensor | 1/3" Panasonic progressive scan CMOS sensor | | Total Pixels | 1956 x 1266, 2.48 MP | | Active Pixels | 1944 x 1092, 2.12 MP | | Sync System | Internal | | Resolution | Digital: 1080p at 60(50) fps, 1080p at 30(25) fps, 720p at 60(50) fps, 720p at 30(25) fps
Analog: 700TVL | | Minimum Illumination | 0 lux (IR LEDs on) | | Video Output | HD: HD-TVI
Analog: CVBS (without WDR) | | S/N Ratio | > 50 dB (AGC off) | | Focal Length | 5-50mm | | Lens | 10x optical zoom with auto focus, 32x digital zoom | | Modes | Auto, P-iris, shutter priority, manual | | Iris | 0-7-20 | | Gain Control | AGC, 0-5-10 | | Shutter Speed | 4x, 2x, 1/30, 1/60, 1/120, 1/250, 1/700, 1/1000, 1/1600, 1/2500, 1/5000, 1/7000, 1/10000, 1/30000 sec | | Brightness | 0-20 | | Wide Dynamic Range | Yes, on/off | | Backlight Compensation | Yes, on/off | | HLC | Mode, level, color | | Digital Noise Reduction | Off, low, medium, high, auto | | Gamma | 0.45, 0.55, 0.65, 0.75 | | Day/Night | IR cut filter | | Focus | One push, manual, auto | | Distance | 0.32, 3.3, 9.8, 16.4, 33' (0.1, 1, 3, 5, 10 m) | | Zoom Speed | 0-7x | | Lens Refresh | One push, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 day | | Exposure | Flickerless | | White Balance | Mode, red gain, blue gain, chroma | | Mirror | Off, horizontal, vertical, horizontal and vertical | | Defog | Off, manual (low, medium, high), auto | | Freeze | On, off | | ACE | Off, low, medium, high | | Privacy | On/Off: 1-24
Color 0-13
Trans: 0-3 | | Motion | On/Off: 1-3
Sensitivity: 1-20
Interval/Dwell Time: 0-255 s | | Defect Compensation | 0-255 | | Image | Range: Comp, user, full | | Power Source | 12 VDC and 24 VAC dual voltage | | Power Consumption | IR LEDs Off: 260 mA
IR LEDs On: 560 mA | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity, Operating/Non-Operating | 20 to 95% | | Dimensions | 3.98 x 4.57 x 13.11" (10.1 x 11.6 x 33.3 cm) | | Weight | 3.52 lb (1.6 kg) | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 13.7 x 7.4 x 5.2" |
