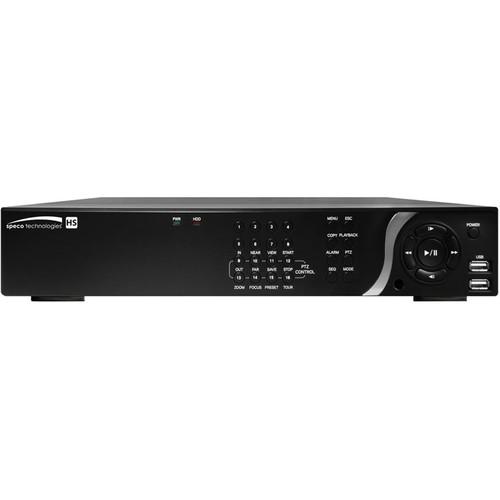

User Manual for Speco Technologies HS Series 8-Channel 960H 1080p Hybrid DVR with 3TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies HS Series 8-Channel 960H
- Product category: Digital Video Recorders (DVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Digital Video Recorders (DVRs)
|
User manual for the Speco Technologies HS Series 8-Channel 960H contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Designed for versatility, the HS Series 8-Channel 960H/1080p Hybrid DVR from Speco Technologies can be used to configure ONVIF Profile S compliant network or analog cameras. With 8 camera inputs, the DVR offers a 30fps recording rate at 960H or 1080p. Plug-and-play Speco cameras and auto-discovered network cameras allow for simple setup, and for cameras that aren't auto-detected, settings can easily be adjusted and configured using a wireless access point. Connectable to video monitors using four different input types, and accessible by up to four simultaneous users, the DVR is designed for convenient use by various people. With a 3TB preinstalled HDD, the DVR can store your footage, or you can upload it via the USB port for further archiving. A remote control and mouse are included, as well as mounting hardware for mounting the DVR to a rackmount. - Dual network ports isolate IP camera network and remote network traffic
- Motion detection and sensor trigger audio recording
- Recording settings include motion detection, sensor, scheduled, continuous, manual
- Wireless access point supported for viewing and configuring
- Built-in self monitoring, analysis, and report technology for HDD
- Stream quality switchable to optimize storage
- Remote monitoring, recording, playback, configuration, PTZ control via internet
- Firmware upgrades via USB port or through network
UPC: 030519014212 In the Box Speco Technologies HS Series 8-Channel 960H/1080p Hybrid DVR with 3TB HDD Remote Control with Batteries USB Mouse Software CD Power Adapter AC Power Cable Audio Cable Rack Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HS Series 8-Channel 960H 1080p Hybrid DVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies D8HS3TB Specs | | | Input | Network Channels: Up to 8
Analog Channels: Up to 8 | | Outputs | 1 x HDMI (1280 x 720, 1920 x 1080)
1 x VGA (1280 x 720, 1920 x 1080)
1 x CVBS
1 x SPOT (analog only)
8 x loopouts (analog only) | | | | Input | 8 x line input
8 x network input | | Output | 1 x RCA | | Codec | G.711 | | | | Sensor Input | Local Input: 4
Remote Input from Network Camera: 8 | | Output | 1 | | | | RS-232C | 1 (debugging only) | | RS-485 | 1 (PTZ) | | | | Resolution | Network: 2592x1944 (5 MP), 1920x1080 (1080p), 1280x720 (720p)
Analog: 960H, D1, CIF | | Recording Speed | 240 | | Recording Quality Grade | 5 levels (analog only) | | Recording Mode | Continuous, motion, sensor, schedule, manual, continuous and sensor, continuous and motion | | Pre-Recording | 20 minutes max. | | Post-Recording | 60 seconds max. | | | | Search | EZ search, date/time, event, archive, log | | Multi-Decoding | 1, 4, 8 | | Playback Speed | 0.25, 0.5, 2, 4, 8, 16, 32, 64x | | | | Media | USB, external HDD, network | | Format | BMP, AVI, proprietary format | | Large Backup | Yes, max. 24 hours | | | | Primary Storage | Up to 3 x 4 TB HDD, 3 TB included | | Secondary Storage | 1 x eSATA | | | | USB | 2 front, 1 rear | | Menu Display | GUI | | Input Method | Front buttons, IR, mouse, keyboard controller | | | | Interface | Dual network ports 10/100/1000Base-T | | Streaming | Network: Profile dependent
Analog: CIF at 30 fps/channel | | Encoding | Dual | | Throughput | 40 Mb/s max. | | | | Viewer | Mobile: Speco Player (live, search, PTZ, 2-way audio)
PC Web: IE, Chrome, Firefox, Safari (live, search, backup, PTZ, remote setup) | | CMS | SpecoTech Multi-Client Viewer and SecureGuard CMS | | | | DDNS | Yes | | NTP (Network Time Protocol) | Yes | | Power Voltage | 12 VDC, 5 A | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Operating Humidity (Relative) | 20 to 80% non-condensing | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 15 x 2.8 x 13.4" (38 x 7.2 x 34 cm) | | Weight | 12 lb (5.4 kg) |
