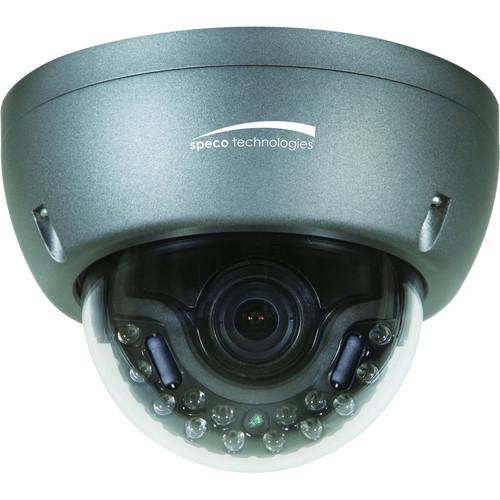

User Manual for Speco Technologies HT5943T Intense IR 3MP Outdoor HD-TVI Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies HT5943T Intense IR 3MP
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HT5943T Intense IR 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The HT5943T Intense IR 3MP Outdoor HD-TVI Dome Camera from Speco Technologies has a 1/3" progressive scan CMOS sensor and a 2.8-12mm auto-iris varifocal lens to capture up to 3MP resolution video at 18 fps. HD-TVI technology allows this camera to capture full HD video over coaxial cable, eliminating the need to run new cables. The mechanical IR cut filter and IR LEDs allow this camera to capture video from up to 66' away in low-light scenes. This camera is IP66-rated for outdoor use and comes equipped with a heater and paintable snap-on Chameleon Cover. - HD-TVI technology provides 3MP resolution video over standard coaxial cable
- WDR operation for accurate images
- IR intensity adapts to subject to provide clear images
- Mechanical IR cut filter and IR LEDs provide up to 66' of low-light recording
- Built-in heater and anti-fog glass reduce condensation
- 3-axis wall and ceiling mounting
- Chameleon Cover snaps on and can be painted
- Full OSD operation through on-board control and UTC (up the coax)
- 12 VDC and 24 VAC dual voltage operation
- IP66-rated enclosure for outdoor use
UPC: 030519021982 In the Box Speco Technologies HT5943T Intense IR 3MP Outdoor HD-TVI Dome Camera Video Test Connector with Power Jack Chameleon Cover Mounting Hardware Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HT5943T Intense IR 3MP Outdoor HD-TVI Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT5943T Specs | Image Sensor | 3 MP 1/2.8" Sony Exmor progressive scan CMOS sensor | | Minimum Illumination | Color: 0.01 lux at f/1.4 with maximum AGC and Sens-up
B&W: 0.5 lux with maximum AGC | | Effective Pixels (H x V) | 2065 x 1553 | | Total Pixels (H x V) | 2065 x 1565 | | Lens | 2.8-12mm auto-iris varifocal | | IR Distance | Up to 66' (20 m) | | IR | 0 to 20 (adjustable) | | S/N Ratio | >50 dB | | Output Resolution | 2048 x 1536 | | Video Output | BNC, 1.0 V p-p, 75 Ohms | | Electronic Shutter | Auto, manual (1/30 to 1/30,000 sec), flicker | | WDR Mode | On (low, middle, high), off | | Day/Night | Auto, color, B&W, external | | White Balance | Auto, AWB, AWC-set, manual | | Brightness | 0 to 20 (adjustable) | | AGC | 0 to 20 (adjustable) | | Sens-Up | 2-32x (adjustable) | | Backlight | On, off | | Motion Detection | On, off (4 zones) | | Privacy Masking | On, off (16 zones) | | Flip / Mirror | Mirror: On, off
Vertical Flip: On, off | | Sharpness | 0 to 20 (adjustable) | | Lens Shading Compensation | On, off | | DNR | Off, low, middle, high | | Test Monitor Output | CVBS | | Communication | UTC (up the coax) | | Power | 12 VDC and 24 VAC dual voltage operation (available separately) | | Maximum Power Consumption | 12 VDC: 560 mA with IR LEDs on, 350 mA with IR LEDs off
24 VAC: 250 mA with IR LEDs on, 180 mA with IR LEDs off | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 95% RH | | Dimensions | 4.7 x 3.4" (12 x 8.5 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 4.1" |
