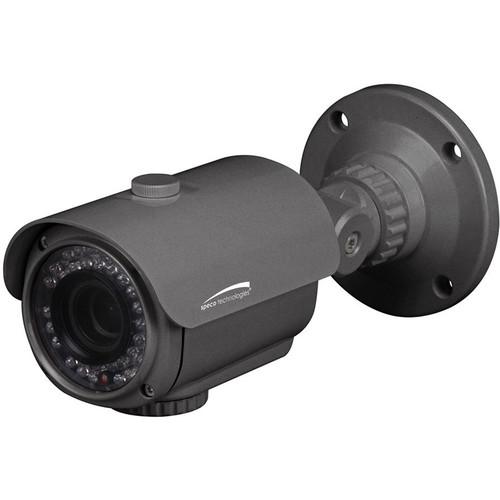

User Manual for Speco Technologies HT7042K 1000 TVL Outdoor Bullet Camera with Night Vision & 5-50mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies HT7042K 1000 TVL Outdoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HT7042K 1000 TVL Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark grey HT7042K from Speco Technologies uses a 1/3" 1.3 MP progressive scan sensor and a 5-50mm varifocal lens to transmit 1000 TVL resolution video at up to 60 fps. Forty-two IR LEDs provide up to 98' of night vision. This bullet camera is housed in a tamper-resistant enclosure that is IP67 rated for outdoor use. - Day and night functionality
- Motion detection for four zones
- Privacy masking for sixteen zones
- Lens shading compensation
- Sense-Up, wide dynamic range, white balance, brightness, automatic gain control, sharpness, 3D-DNR, defog, and digital image stabilization
- Mirroring and vertical flip
- Tamper-resistant enclosure
UPC: 030519019668 In the Box Speco Technologies HT7042K 1000 TVL Outdoor Bullet Camera with Night Vision & 5-50mm Lens Video Test Connector Power Jack Focus Adjustment Bracket Base Wrench 4 x Tapping Screws 4 x Hexagon Socket Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HT7042K 1000 TVL Outdoor Bullet Camera with Night Vision & 5-50mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT7042K Specs | Image Sensor | 1/3" 1.3 MP Progressive Scan Sensor | | Resolution | 1000 TVL | | Minimum Resolution | 0 Lux with IR | | Effective Pixels (H x V) | 1305 x 1049 | | Total Pixels (H x V) | 1312 x 1069 | | TV System | NTSC | | Number of IR LEDs | 42 | | IR Range | 98' / 30 m | | IR Wavelength | 850 nm | | S/N Ratio | >50 dB | | Frame Rate | 60/50 fps | | Video Output | 1 V p-p / 75 Ohms (BNC Coaxial) | | Lens | 5-50mm Varifocal Manual Lens | | Iris | DC Auto Iris | | Electronic Shutter Speed | Auto, Manual (1/60,000 to 1/60 Seconds), Flicker | | WDR | On (Low, Middle, High), Off | | Digital WDR | On (Low, Middle, High), Off | | Day/Night | Color, B&W, Auto, Ext | | White Balance | Auto, Auto Ext, AWC-SET, Manual | | Brightness | 0 to 20 (Level Adjustable) | | Automatic Gain Control | 0 to 20 (Level Adjustable) | | Smart IR | 0 to 20 (Level Adjustable) | | Sense-Up | 2-32x | | Motion Tracking | On, Off | | Motion Detection | On, Off (4 Zones) | | Privacy Masking | On, Off (16 Zones) | | Flip/Mirror | On, Off | | Sharpness | 0 to 10 (Level Adjustable) | | Lens Shading Compensation | On, Off | | 3D-DNR | Off, Low, Middle, High | | Defog | On (Auto, Manual), Off | | Digital Image Stabilization | On, Off | | Power Supply | 12 VDC / 24 VAC Dual Voltage Operation (Power Supply Available Separately) | | Power Consumption | 12 VDC: 450 mA
24 VAC: 190 mA | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x L) | 3.94 x 3.94 x 8.27" / 100 x 100 x 210 mm | | Weight | 3.09 lb / 1.4 kg | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 6.0" |
