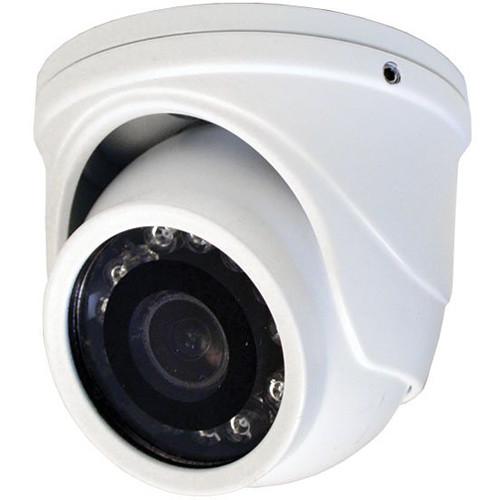

User Manual for Speco Technologies HT71TW 2MP Outdoor HD-TVI Mini Turret Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies HT71TW 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HT71TW 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Capture 1080p video at up to 30 fps with the white HT71TW 2MP Outdoor HD-TVI Mini Turret Camera with Night Vision from Speco Technologies. Its 2.9mm fixed lens has 12 IR LEDs to allow the camera to see subjects at night from up to 35' away. This camera features HD-TVI technology to provide 1080p video over standard coax cable and features an IP66-rated enclosure, making it suitable for outdoor use. - 2MP 1/3" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- IR cut filter and IR LEDs allow the camera to produce clear images in complete darkness from up to 35' away
- BNC connection with HD-TVI technology
- IP66-rated enclosure for protection against dust and water
UPC: 030519020428 In the Box Speco Technologies HT71TW 2MP Outdoor HD-TVI Mini Turret Camera with Night Vision (White) Wrench Mounting Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HT71TW 2MP Outdoor HD-TVI Mini Turret Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT71TW Specs | Image Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Maximum Resolution | 1920 x 1080 at 30 fps | | Minimum Illumination | 0 lux with IR LEDs on | | Effective Pixels | 1984 x 1105 | | Total Pixels | 2000 x 1121 | | Electronic Shutter Speed | Auto, manual | | Number of IR LEDs and Range | 12 x IR LEDs, up to 35' (10.7 m) | | Day/Night | Auto, color, B&W, ext | | Synchronization | Internal | | Communication | UTC | | Frequency | 15.734 kHz to 60 Hz | | Video Output | BNC, 1.0 V p-p, 75 Ohms | | S/N Ratio | > 50 dB | | Gain Control | Auto Gain Control (AGC) | | White Balance | Auto White Balance (AWB) | | Operating Temperature | 14 to 120°F (-10 to 50°C) | | Power Supply | 12 VDC (available separately) | | Power Consumption | IR Off: 100 mA
IR On: 200 mA | | Certifications | FCC, RoHS | | Dimensions | 2.36 x 2.15" (60 x 55 mm) | | Weight | 10 oz (0.28 kg) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.8 x 4.0 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
