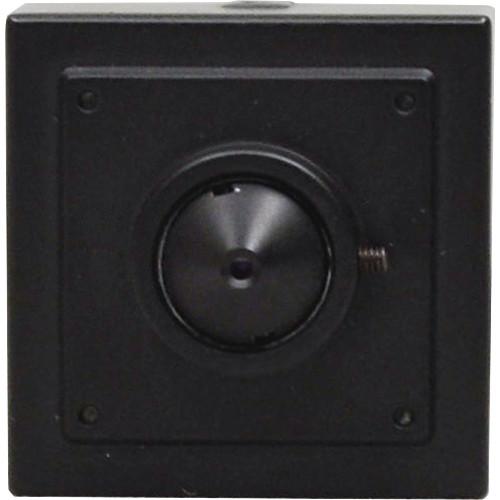

User Manual for Speco Technologies HT7PHT Multi-Format Analog HD Miniature Pinhole Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies HT7PHT Multi-Format Analog HD
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HT7PHT Multi-Format Analog HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The HT7PHT Multi-Format Analog HD Miniature Pinhole Camera from Speco Technologies uses a 1/2.9" CMOS sensor and a 3.7mm lens to transmit 1920 x 1080 resolution video at 30 fps. Weighing only 2.47 ounces, this diminutive device is suitable for covert applications. It supports HD-TVI, HD-CVI, AHD, and CVBS signal outputs. The UTC (Up-the-Coax) connection enables full OSD operation of the camera. - 12 VDC power (power supply available separately)
- Full OSD operation via UTC
UPC: 030519023948 In the Box Speco Technologies HT7PHT Multi-Format Analog HD Miniature Pinhole Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HT7PHT Multi-Format Analog HD Miniature Pinhole Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT7PHT Specs | Image Sensor | 2.2 MP 1/2.9" CMOS | | Resolution | 1920 x 1080 at 30 fps | | Lens | 3.7mm Pinhole Lens | | Minimum Illumination | 0.001 lux | | S/N Ratio | >52 dB | | Video Output | HD-TVI, HD-CVI, AHD, CVBS | | Signal System | NTSC, PAL | | OSD Control | Full OSD Operation via UTC | | Communication | UTC (Up-the-Coax) | | DNR | 3D-DNR, 2D-DNR | | Sense-Up | On | | Smart IR | On | | Backlight Compensation | On | | White Balance | Auto | | Type | Color | | Power Supply | 12 VDC ±10% (Available Separately) | | Power Consumption | Maximum 95 mA | | Operating Temperature | -22 to 113°F / -30 to 45°C | | Storage Temperature | -22 to 140° / -30 to 60°C | | Dimensions (H x W x L) | 1.77 x 1.5 x 0.98" / 45 x 38.1 x 24.9 mm | | Weight | 2.47 oz / 70 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 3.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
