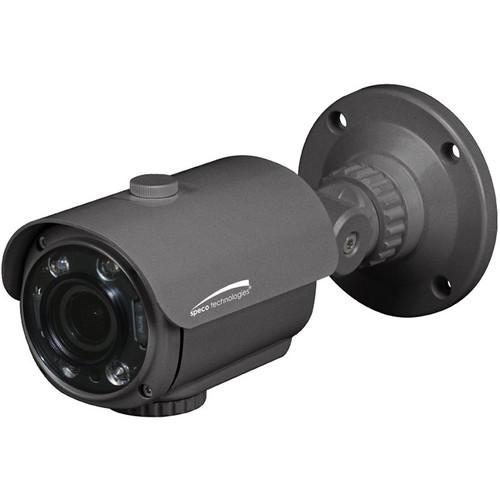

User Manual for Speco Technologies HTFB2TM 2MP Outdoor HD-TVI Bullet Camera with Night Vision and Heater Click to enlarge the picture
Contents of the user manual for the Speco Technologies HTFB2TM 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HTFB2TM 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray HTFB2TM from Speco Technologies uses a 1/2.9" progressive scan CMOS sensor and a 2.8-12mm motorized varifocal lens to transmit 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 90' of night vision. The camera supports an HD-TVI signal output. The UTC (Up-the-Coax) connection allows for OSD control of the camera.
This bullet camera is equipped with a built-in heater. It is housed in an IP66-rated enclosure that is suitable for outdoor use. A junction box is included for cable management. - Flexible Intensifier technology enables the camera to produce clear images in varying lighting conditions
- 12 VDC and 24 VAC dual voltage (power supply available separately)
- Analog output for 960H resolution
- Adaptive IR LEDs that reduce IR saturation
- 2.8-12mm motorized varifocal lens with autofocus
- Day and night functionality
- Signal distance up to 1600'
- Image settings include brightness, Sense-Up, wide dynamic range, white balance, digital noise reduction, and sharpness
- Motion detection for up to 4 zones
- Privacy masking for up to 16 zones
- Built-in heater and anti-fog glass to reduce condensation
UPC: 030519022132 In the Box Speco Technologies HTFB2TM 2MP Outdoor HD-TVI Bullet Camera with Night Vision and Heater Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HTFB2TM 2MP Outdoor HD-TVI Bullet Camera with Night Vision and Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTFB2TM Specs | Image Sensor | 2 MP, 1/2.9" progressive scan CMOS sensor | | Lens | 2.8-12mm motorized varifocal lens with autofocus | | Effective Pixels (H x V) | 1985 x 1105 | | Total Pixels (H x V) | 2001 x 1121 | | Resolutions | 1920 x 1080 at 30 fps
1280 x 720 at 60 fps | | Video Output | HD-TVI and additional 960H analog output | | Minimum Illumination | Color: 0.001 lux at f/1.4 (Sense-Up 32x)
B&W: 0 lux with IR LED on | | IR Range | 90' / 27.4 m (depending on scene) | | Output | 1.0 V p-p / 75 Ohms | | S/N Ratio | 50 dB | | AGC (Automatic Gain Control) | 0-20 (adjustable) | | Electronic Shutter | Auto, manual (1/30,000 to 1/30 (1/25) seconds), flicker | | Brightness | 0-20 (adjustable) | | Sense-Up | 2-32x (adjustable) | | Wide Dynamic Range | On (low, middle, high), off | | Day/Night | Auto, color, B&W, EXT | | Motion Detection | On/off (4 zones) | | Privacy Masking | On/off (16 zones) | | White Balance | Auto, AWB, AWC-set, manual | | Digital Noise Reduction | Off, low, middle, high | | Flip/Mirror | On, off | | Sharpness | 0-20 (adjustable) | | Communication | UTC (Up-the-Coax) | | OSD Control | Full OSD operation via UTC | | Signal Range | Up to 1600' / 488 m | | Power Supply | 12 VDC / 24 VAC (power supply available separately) | | Power Consumption | 12 VDC, 520 mA maximum / 24 VAC, 230 mA maximum | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 95% RH | | Heater | Built-in | | IP Rating | IP66 | | Certifications | FCC, RoHS | | Dimensions (W x H x L) | 3.94 x 3.4 x 8.27" / 100 x 86.4 x 210 mm | | Weight | 3.09 lb / 1.4 kg | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.7 x 6.3 x 5.3" |
