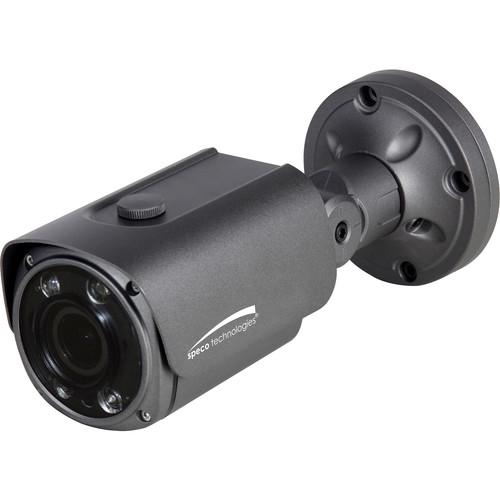

User Manual for Speco Technologies HTFB4TM 4MP Outdoor HD-TVI Bullet Camera with Night Vision and Heater Click to enlarge the picture
Contents of the user manual for the Speco Technologies HTFB4TM 4MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies HTFB4TM 4MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray HTFB4TM from Speco Technologies uses a 1/2.9" CMOS sensor and a 2.8-12mm motorized varifocal lens to transmit 2560 x 1440 resolution video at 15 fps. IR LEDs provide up to 90' of night vision. The camera supports an HD-TVI signal output. The UTC (Up-the-Coax) connection allows for OSD control of the camera.
This bullet camera is equipped with a built-in heater. It is housed in an IP66-rated enclosure that is suitable for outdoor use. A junction box is included for cable management. - Flexible Intensifier technology enables the camera to produce clear images in varying lighting conditions
- 12 VDC and 24 VAC dual voltage
- Adaptive IR LEDs that reduce IR saturation
- 2.8-12mm motorized varifocal lens with autofocus
- 4.3x optical and 16x digital zoom
- Day and night functionality
- Signal distance up to 1600'
- Image settings include brightness, Sense-Up, wide dynamic range, backlight compensation (including highlight suppression BLC), ACE, white balance, 2D-DNR, 3D-DNR, and sharpness
- Privacy masking for up to 16 zones
- Built-in heater and anti-fog glass to reduce condensation
UPC: 030519022903 In the Box Speco Technologies HTFB4TM 4MP Outdoor HD-TVI Bullet Camera with Night Vision and Heater Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies HTFB4TM 4MP Outdoor HD-TVI Bullet Camera with Night Vision and Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTFB4TM Specs | Image Sensor | 4 MP, 1/2.9" Sony STARVIS CMOS sensor | | Lens | 2.8-12mm motorized varifocal lens with autofocus | | Effective Pixels (H x V) | 2184 x 2202 | | Total Pixels (H x V) | 3096 x 2281 | | Resolution | 2560 x 1440 at 15 fps | | Signal | HD-TVI | | Minimum Illumination | 0.001 lux at f/1.2 (Sense-Up 32x) | | IR Range | 90' / 27.4 m (depending on scene) | | Smart IR | 0-15 (adjustable) | | Output | 1.0 V p-p / 75 Ohms | | S/N Ratio | >50 dB | | Automatic Gain Control | 0-20 (adjustable) | | Electronic Shutter | Auto, manual (1/30,000 to 1/30 [1/25] seconds), flicker | | Brightness | 0-20 (adjustable) | | Sense-Up | On, auto (2-32x) | | Wide Dynamic Range | On (low, middle, high), off | | Backlight Compensation | On, off | | HSBLC | 1-20 (adjustable) | | Day/Night | Auto (AGC), day, night, exterior | | ACE | Off, low, middle, high | | Motion Detection | On, off | | Privacy Masking | On, off (16 zones) | | White Balance | ATW (1700-11,000K), AWC set, manual, AWB | | Digital Noise Reduction | 2D-DNR, 3D-DNR | | Flip/Mirror | Supported | | Digital Zoom | Off, on (16x) | | Optical Zoom | 4.3x | | Sharpness | 0-10 (adjustable) | | Communication | UTC (Up-the-Coax) | | OSD Control | Full OSD operation via UTC | | Signal Range | Up to 1600' / 488 m | | Power Consumption | 12 VDC: Maximum 8.5 W / 0.71 A
24 VAC: Maximum 7.9 W / 0.53 A | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20-90% RH | | Heater | Built-in | | IP Rating | IP66 | | Certifications | FCC, RoHS | | Dimensions | 8.9 x 3.9" / 226 x 99 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 3.08 lb | | Box Dimensions (LxWxH) | 12.1 x 5.35 x 5.2" |
