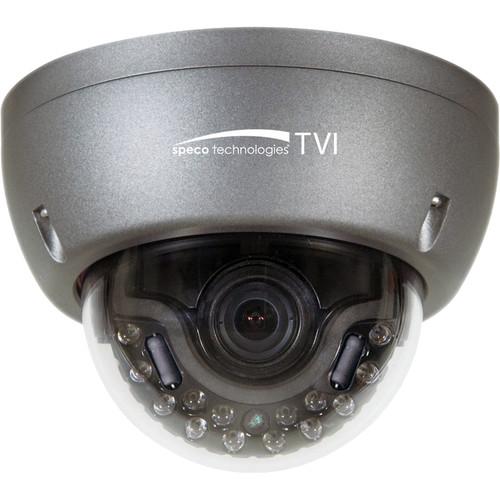

User Manual for Speco Technologies Intense IR 2MP Outdoor HD-TVI Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intense IR 2MP Outdoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intense IR 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The Intense IR 2MP Outdoor HD-TVI Dome Camera from Speco Technologies has a 1/3" progressive scan CMOS sensor and a 2.8-12mm auto-iris varifocal lens to capture up to 1920 x 1080 resolution video at 30 fps and 2MP still images. HD-TVI technology allows this camera to capture full HD video over coaxial cable, eliminating the need to run new cables. The mechanical IR cut filer and IR LEDs allow this camera to capture video at up to 66' away in complete darkness. This camera is IP67 rated for outdoor use and comes equipped with a heater, paintable snap-on Chameleon Cover, and junction box. - HD-TVI technology provides 1920 x 1080 resolution over standard coaxial cable
- IR intensity adapts to subject to provide accurate images
- Mechanical IR cut filter and IR LEDs provide up to 66' of night vision
- Heater circuitry and anti-moisture glass reduce fog and condensation
- 3-axis wall and ceiling mounting
- Chameleon Cover snaps on and can be painted
- Full OSD operation through on-board control and UTC (up the coax)
- 12 VDC and 24 VAC dual voltage operation
- Vandal and tamper resistant
- IP67-rated for outdoor use
UPC: 030519018265 In the Box Speco Technologies Intense IR 2MP Outdoor HD-TVI Dome Camera Video Test Connector with Power Jack Chameleon Cover Mounting Hardware Junction Box Limited 5-Year Warranty Brochure PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intense IR 2MP Outdoor HD-TVI Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT5940T Specs | Image Sensor | 2MP 1/3" Sony Exmor CMOS Progressive Scan Sensor | | Minimum Illumination | 0.001 Lux | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Lens | 2.8-12mm Auto-Iris | | IR Range | Up to 66' / 20 m | | IR | 0 to 20 (Adjustable) | | S/N Ratio | >50 dB | | Output Resolution | 1920 x 1080 at 30 fps
1280 x 720 at 60 fps | | Video Output | 1.0 V p-p, 75 Ohms | | Electronic Shutter | Auto, Manual (1/30 to 1/30,000 Sec), Flicker | | WDR Mode | On (Low, Middle, High), Off | | Day/Night | Auto, Color, B&W, External | | White Balance | Auto, AWB, AWC-Set, Manual | | Brightness | 0 to 20 (Adjustable) | | AGC | 0 to 20 (Adjustable) | | Sense-Up | 2-32x (Adjustable) | | Backlight | BLC, HSBLC | | Motion Detection | On, Off (4 Zones) | | Privacy Masking | On, off (16 Zones) | | Mirror | On, Off | | Flip and Rotate | Vertical Flip: On, Off | | Sharpness | 0 to 20 (Adjustable) | | Lens Shading Compensation | On, Off | | DNR | Off, Low, Middle, High | | Test Monitor Output | CVBS | | Communication | UTC (Up the Coax) | | Power | 12 VDC and 24 VAC Dual Voltage Operation Power Supply Not Included | | Power Consumption | 12 VDC at 510 mA
24 VAC at 195 mA | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 20 to 95% RH | | Dimensions (Ø x H) | 4.72 x 3.35" / 11.98 x 8.5 cm | | Weight | 2.2 lb / 0.9 kg | | | | Package Weight | 3.01 lb | | Box Dimensions (LxWxH) | 8.85 x 7.4 x 6.75" |
