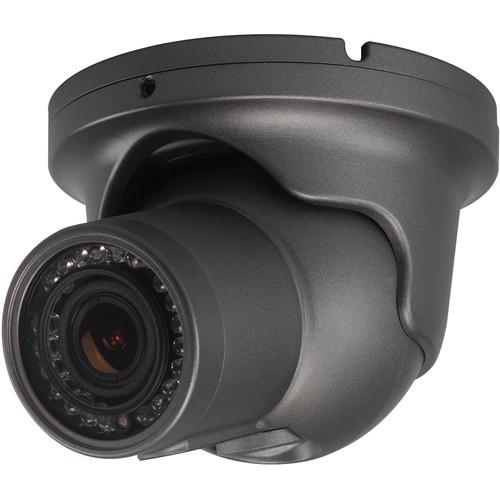

User Manual for Speco Technologies Intense IR Series 1000 TVL Outdoor Vandal-Resistant Turret Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intense IR Series 1000
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intense IR Series 1000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray Intense IR Series 1000 TVL Outdoor Vandal-Resistant Turret Camera from Speco Technologies features a 1/3" progressive scan 1.3MP Sony sensor and 2.8-12mm varifocal lens. The camera is equipped with 21 IR LEDs that help capture clear video in complete darkness. IR LEDs illuminate the target area up to 80' (24m) away from the camera. The camera also features motion detection (4 zones), true WDR functionality, and an IP67- and IK10-compliant housing. - 2.8-12mm auto iris varifocal lens
- 1/3" 1.3MP Sony Exmor Sensor (IMX 138) captures video at 1000 TVL resolution
- True WDR functionality helps capturing clear images against strong backlight
- SMART 3D DNR prevents image blurring of moving objects and activates only when moving objects appear in the scene
- Smart IR technology eliminates saturation of images of close objects in darkness by controlling the IR sensitivity
- Sens-Up feature (up to x32) helps capturing clear images in low-light conditions
- Defog function improves the clarity of images captured in poor weather conditions such as fog, smoke, rain, or snow
- TV system is switchable between NTSC and PAL using the built-in OSD
- Motion detection feature aids crime detection and prevention
- Presets (indoor, outdoor, low light, hallway, lobby, and elevator) maximize user convenience
- 12 VDC & 24 VAC dual-voltage operation
- 3-axis wall and ceiling mount
- Vandal/tamper resistant housing
UPC: 030519013956 In the Box Speco Technologies Intense IR Series 1000 TVL Outdoor Vandal-Resistant Turret Camera with 2.8-12mm Lens & Night Vision Video Test Connector, Power Jack 2 x Wrenches 3 x 4x25 Tapping Screws Limited 5-Year Warranty Brochure PDF 795.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intense IR Series 1000 TVL Outdoor Vandal-Resistant Turret Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT6040K Specs | Image Sensor | 1/3" 1.3 MP Sony Exmor | | Resolution | 1000 TVL | | Effective Pixels (H x V) | 1305 x 1049 = 1.37 MP | | Total Pixels (H x V) | 1312 x 1069 = 1.40 MP | | TV System | NTSC | | Number of IR LEDs and Range | Number: 21
Range: Up to 80' (24 m) Range depends on scene reflection | | IR Wavelength | 850 nm | | Scanning | Progressive | | S/N Ratio | >50 dB | | Frame Rate | 50/60 fps (maximum) | | Video Output | CVBS: 1 V p-p / 75 Ohms | | Minimum Illumination | 0 lux with IR LEDs on | | Lens | Type: DC auto iris varifocal lens (2.8-12 mm)
Mode: DC / Manual | | Electronic Shutter | Auto / Manual (1/60 to 1/60,000 sec ) / Flicker | | OSD | Output for Anti Shifting: On/Off
Output for Anti Blocking: On/Off The camera features built-in OSD | | Wide Dynamic Range | On (low/middle/high) / Off | | Digital WDR | On (low/middle/high) / Off | | Day/Night | Color/B&W/Auto/Ext | | White Balance | Auto / Auto Ext / AWC-Set / Manual | | IR | Smart IR: 0 to 20 (level adjustable, by default set to 0) | | Sense-Up | x2 to x32 (by default set to x8) | | Motion | Detection: On / Off (programmable 4 zones)
Tracking (Quick Zoom): On / Off | | 3D-DNR | Off/Low/Middle/High | | Defog | On (Auto / Manual) / Off | | Brightness | 0 to 20 (level adjustable, by default set to 10) | | AGC (Automatic Gain Control) | 0 to 20 (level adjustable, by default set to 20) | | Privacy Masking | On/Off (programmable 16 zones) | | Mirror | V-Flip: On/Off | | Sharpness | 0 to 15 (level adjustable, by default set to 7) | | Lens Shading Compensation | On/Off | | RS-485 Protocol | Supported | | View Angle | Wide 4:3 or 16:9 / Normal | | CVBS | Output: NTSC/PAL selectable | | Communication | Coaxial control | | Language | English | | Housing | IP67, IK10 rated | | Mounting | 3-axis wall and ceiling mount | | Power Supply | 12 VDC, 24 VAC, dual voltage operation Power supply not included | | Power Consumption | IR LED On: 450 mA at 12 VDC, 190 mA at 24 VAC
IR LED Off: 260 mA at 12 VDC, 130 mA at 24 VAC | | Temperature | Operating/Storage: -4 to 140ºF (-20 to 60°C) | | Relative Humidity | Operating/Storage: 20 to 95% | | Dimensions | 3.80 x 4.65" (9.65 x 11.81 cm) | | Weight | 1.99 lb (0.9 kg) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 5.7" |
