User Manual for Speco Technologies Intensifier IP O2iD5M 2MP Outdoor Vandal-Resistant Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier IP O2iD5M 2MP
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies Intensifier IP O2iD5M 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

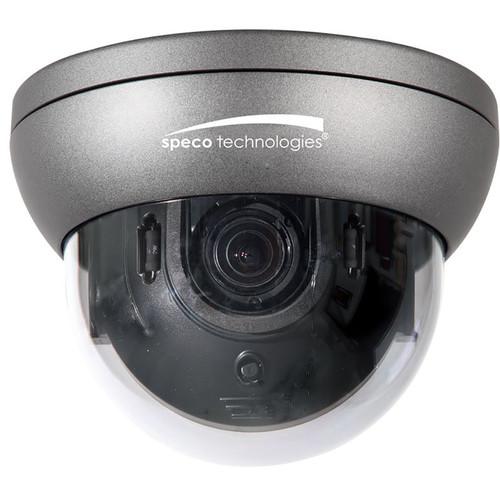

Product description The Intensifier IP O2iD5M 2MP Outdoor Vandal-Resistant Network Dome Camera from Speco Technologies has a 2MP 1/3" progressive scan CMOS sensor and a 2.8-12mm varifocal lens to capture 1920 x 1080 resolution video at up to 30 fps. It supports H.265, H.264, and MJPEG compression codecs to help conserve bandwidth while maintaining recording and playback quality. The Chameleon Cover snaps on and can be painted to fit your specific needs. PoE technology and ONVIF compliance simplify installation and ensure compatibility with other devices. This camera is enclosed in an IP66- and IK10-rated housing for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk environments. - 2MP 1/3" progressive scan CMOS sensor and 2.8-12mm varifocal lens allow the camera to capture 1920 x 1080 resolution video at up to 30 fps
- Intensifier IP technology allows the camera to produce images in low-light scenes without IR LEDs
- Built-in PoE (IEEE 802.3af) technology
- Supports H.265, H.264, and MJPEG codecs
- Two-way audio communication
- microSD slot for local storage
- Chameleon Cover snaps on and can be painted to suit your needs
- IP66- and IK10-rated enclosure for protection against water, dust, and impact
UPC: 030519021975 In the Box Speco Technologies Intensifier IP O2iD5M 2MP Outdoor Vandal-Resistant Network Dome Camera Chameleon Cover Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier IP O2iD5M 2MP Outdoor Vandal-Resistant Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O2ID5M Specs | | | Image Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Maximum Resolution | 1920 x 1080 | | Minimum Illumination | Color: 0.05 lux at f/1.4 (maximum intensify) | | White Balance | Auto, presets, manual | | Compensation | WDR, BLC, HLC | | Intensifier | Selectable (maximum 32x), off | | Electronic Shutter Speed | 1/30 to 10,000 sec | | Digital Noise Reduction | 3D-DNR | | | | Resolution | 1920 x 1080, 1280 x 720 at 30 fps | | Compression | H.265 (MP/BP), H.264 (HP/MP/BP), MJPEG | | Bitrate Control | VBR, CBR | | Streaming | 3 streams | | | | Input | Mono: 64 kbps G.711, 32 kbps G.726 | | Output | Mono: 64 kbps G.711 | | | | Ethernet | 10/100 Mbps | | Alarm | 1 x sensor input, 1 x relay output | | Video | 1 x BNC output for test monitor | | Audio | 1 x mic in, 1 x line out (terminal block) | | Power | DC jack | | Memory Card Support | microSD card (available separately) | | | | Protocols | IPv4, TCP, UDP, RTP, RTSP, HTTP, SMTP, FTP, DHCP, UPnP, DNS | | DDNS | Speco DDNS | | Security | User ID and password protection, IP address filtering, digest authentication, user access log | | User Access | Up to 10 simultaneous users | | ONVIF | Profile S | | | | PoE | IEEE 802.3af standard | | Analytics | Motion detection, audio detection | | Alarm Triggers | Analytics and sensor input | | Alarm Events | FTP video file upload, email upload, microSD card recording, relay out | | Image Settings | Privacy mask | | | | Web Browser | Microsoft Internet Explorer 8 and later | | Application | SecureGuard VMS | | Mobile OS Support | SecureGuard Mobile for iOS and Android | | | | Power Supply | PoE, 12 VDC (available separately) | | Power Consumption | 5 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 0 to 90% RH | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | FCC, RoHS | | Dimensions | 5.1 x 3.9" (130 x 99 mm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 6.1 x 6.0 x 4.7" |
