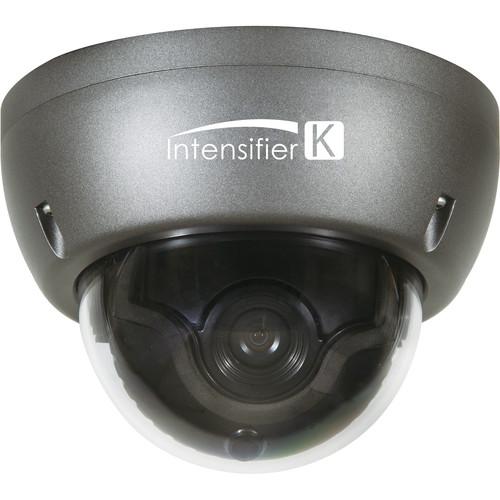

User Manual for Speco Technologies Intensifier K Series Indoor Outdoor Dome Camera with 2.8-12mm Lens and Heater Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier K Series Indoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier K Series Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Monitor both indoor and outdoor areas using the Intensifier K Series Indoor/Outdoor Dome Camera from Speco Technologies. The camera features a 1/3" 1.3MP Sony image sensor, 1000 TV line resolution, and true wide dynamic range to capture high-quality video. A 2.8-12mm auto iris varifocal lens provides a 4x manual optical zoom option during installation. Designed to perform in low-light scenarios, the camera requires a minimum illumination of only 0.0001 lux and amplifies existing light for high-quality video in almost complete darkness.
When used in inclement weather, heater circuitry removes fog or condensation, and an IP67-compliant housing creates a weatherproof and dustproof enclosure. The casing is also vandal- and tamper-resistant for secure recording. The package includes a chameleon cover which snaps onto the camera and can be painted to match the installation area. A relay output provides motion detection, and presets include indoor, outdoor, low light, hallway, lobby, and elevator options. The camera utilizes 12 VDC and 24 VAC dual voltage for versatility, and includes a video test connector with a power jack as well as mounting hardware. - 2.8 to 12mm auto-iris varifocal lens
- High analog resolution of 1000 TVL
- Performs with a minimum illumination of 0.0001 lux
- Chameleon Cover snaps on and can be painted to match existing decor
- Heater circuitry eliminates fog and condensation in inclement weather
- Indoor, outdoor, low light, hallway, lobby (WDR), and elevator presets
- 12 VDC and 24 VAC dual-voltage operation
- Relay output for motion detection
- Vandal- and tamper-resistant operation
- IP67-compliant weatherproof and dustproof housing
- 3-axis wall and ceiling mount
UPC: 030519013970 In the Box Speco Technologies Intensifier K Series Indoor/Outdoor Dome Camera with 2.8-12mm Lens and Heater Chameleon Cover Video Test Connector, Power Jack Focus Adjustment Bracket Base Wrench Set of Screws Limited 5-Year Warranty Brochure PDF 654.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier K Series Indoor Outdoor Dome Camera with 2.8-12mm Lens and Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTINT59K Specs | Image Sensor | 1/3" 1.3 MP Sony Sensor | | Resolution | 1000 TVL | | Lens | 2.8 to 12 mm, auto-iris varifocal
DC / Manual | | Minimum Illumination | 0.0001 lux | | Effective Pixels (H x V) | 1305 x 1049 | | Total Pixels (H x V) | 1312 x 1069 | | TV System | NTSC | | Scanning System | Progressive | | S/N Ratio | More than 50 dB | | Frame Rate | Maximum: 50/60p | | Video Output | 1.0 Vpp / 75 ohms | | Electronic Shutter Speed | Auto / Manual (1/60 sec to 1/60,000 sec) / Flicker | | WDR Control | On (Low / Middle / High) / Off | | Digital WDR | On (Low / Middle / High) / Off | | Day/Night | Color / B&W / Auto / External | | White Balance | Auto / Auto Ext / AWC ‒ SET / Manual | | Brightness | 0 to 20 (level adjustable) | | AGC (Automatic Gain Control) | 0 to 20 (level adjustable) | | Sens-up | 2 to 32x | | Motion | Detection: On / Off (4 zones)
Tracking: On / Off | | Privacy | On / Off (16 zones) | | 3DNR | Off / Low / Middle / High | | Digital Image Stabilizer | On / Off | | Sharpness | 0 to 15 (level adjustable) | | Defog | On (Auto / Manual) / Off | | Flip / Mirror | On / Off | | Lens Shading Compensation | On / Off | | Power Consumption | 12 VDC, 590 mA / 24 VAC, 230 mA | | Power Supply | 12 VDC / 24 VAC dual-voltage operation (power supply not included) | | IP Rating | IP67 | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (Ø x H) | 4.7 x 3.3" (11.9 x 8.4 cm) | | Weight | 2.2 lb (0.9 kg) | | | | Package Weight | 2.845 lb | | Box Dimensions (LxWxH) | 7.25 x 7.25 x 6.85" |
