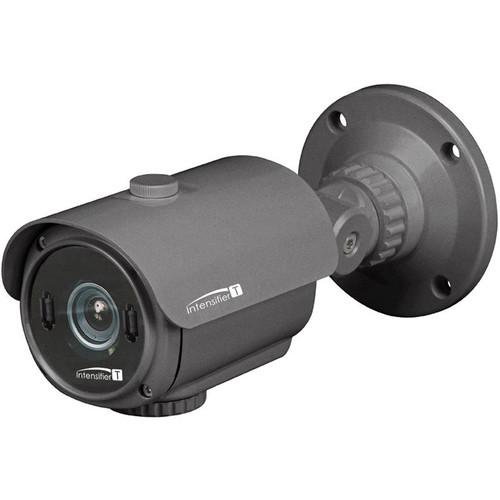

User Manual for Speco Technologies Intensifier T 2MP HD-TVI Outdoor Bullet Camera with 2.8-10mm Motorized Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T 2MP HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T 2MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray Intensifier T 2MP HD-TVI Outdoor Bullet Camera from Speco Technologies features a 1/2.8" Sony 2MP Exmor progressive scan CMOS sensor and 2.8-10mm varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. Enclosed in an IP67-rated housing, the camera can be used for both indoor and outdoor applications. - 1920 x 1080 resolution over coax (HD-TVI) at 30 fps
- Offers presets for different scenarios
- Built-in heater and anti-fog glass reduces condensation
- Full OSD operation through on-board control and UTC (Up the Coax)
- Zoom and focus control via coax (TVI)
- RS-485 (additional zoom and focus/OSD control)
- Signal range up to 1600' (depending on coax quality)
- Vandal/tamper-resistant design
- IP67-rated weather-resistant housing
- 12 VDC and 24 VAC dual-voltage operation
UPC: 030519021630 In the Box Speco Technologies Intensifier T 2MP HD-TVI Outdoor Bullet Camera with 2.8-10mm Motorized Lens Video Test Connector, Power Jack Focus Adjustment Bracket Base Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T 2MP HD-TVI Outdoor Bullet Camera with 2.8-10mm Motorized Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTB11TM Specs | | | Image Sensor | 1/2.8" Sony 2 MP Exmor CMOS Sensor | | Minimum Illumination | 0.001 lux (sense-up 32x) | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Focal Length | 2.8-10mm | | Scanning System | Progressive | | S/N Ratio | More than 50 dB | | Output Resolution | 1920 x 1080 at 30 fps/1280 x 720 at 60 fps | | Video Output | 1.0 V p-p/75 Ohms | | Electronic Shutter | Auto / Manual (1/30 to 1/30,000 sec) / Flicker | | Wide Dynamic Range | On (Low/Middle/High) / Off (only for TVI) | | Day/Night | Auto / Color / B&W / External | | White Balance | Auto / AWB / AWC-Set / Manual | | Brightness | 0 to 20 (adjustable) | | AGC | 0 to 20 (adjustable) | | Sense-Up | 2 to 32x (adjustable) | | Backlight | BLC/HSBLC | | Motion Detection | On / Off (4 zones) | | Privacy Masking | On / Off (16 zones) | | Mirror | On / Off | | Image Flip | V-Flip: On / Off | | Sharpness | 0 to 20 (adjustable) | | Lens Shading Compensation | On / Off | | DNR | Off / Low / Middle / High | | Test Monitor Output | CVBS | | Communication | UTC (up the coax) | | | | Power | 12 VDC/24 VAC dual voltage (power supply sold separately) | | Power Consumption | 12 VDC, 500 mA maximum/24 VAC, 195 mA maximum | | | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 95% RH | | | | Certifications | FCC, RoHS | | RS-485 | Pelco D (CVBS output) | | Dimensions (W x H x L) | 3.94 x 3.94 x 8.27" (100 x 100 x 210 mm) | | Weight | 3.1 lb (1.4 kg) |
