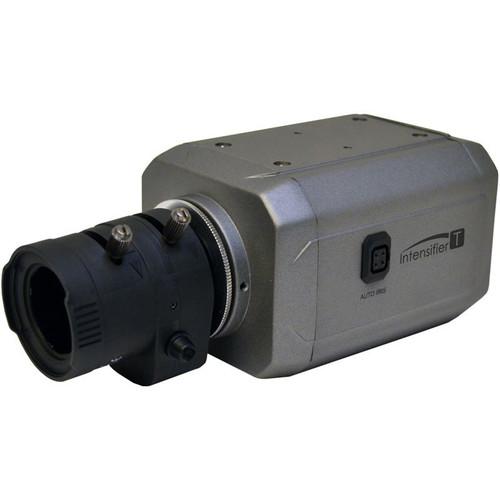

User Manual for Speco Technologies Intensifier T 2MP HD-TVI Traditional Box Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T 2MP HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T 2MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The Intensifier T 2MP HD-TVI Traditional Box Camera from Speco Technologies features True WDR operation and full OSD operation via UTC (TVI output only). It can be deployed in various environments, such as, elevators, lobbies, hallways, and dark areas. In addition, the camera features motion detection for better results. -
- 1920 x 1080 resolution over coax (HD-TVI) at 30 fps
- True WDR operation
- 12 VDC / 24 VAC dual voltage operation
- Full OSD operation via UTC (TVI output only)
- Additional analog output for 960H
UPC: 030519020633 In the Box Speco Technologies Intensifier T 2MP HD-TVI Traditional Box Camera (NTSC) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T 2MP HD-TVI Traditional Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTINTT5T Specs | Image Sensor | 1/3" progressive scan CMOS, 2 MP | | Resolution | 1080p | | Minimum Illumination | 0.001 lux | | Effective Pixels | 1984 x 1105 | | Total Pixels | 2000 x 1121 | | TV System | NTSC | | Scanning Frequency | 15.734 kHz / 59.94 Hz | | Scanning System | Progressive | | Synchronization | Internal | | Communication | UTC | | S/N Ratio | >50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms | | Electronic Shutter Speed | Auto / manual | | OSD | Available | | DWDR | On / off (level adjustable) | | Backlight Compensation | BLC / HLC / off | | Day/Night | Color / B&W / Auto / Ext | | AGC | Level adjustable | | White Balance | ATW / push / manual | | Intensifier | Auto / off (selectable x2 - x512) | | Motion Detection | On / off (4 programmable zones) | | Privacy Masking | On / off (8 programmable zones) | | DNR | High / medium / low / off | | Sharpness | On / off (level adjustable) | | Mirror | On / off | | Power Consumption | 12 VDC, 150 mA / 24 VAC, 2 W | | Power Supply | 2 VDC / 24 VAC dual voltage operation (power supply not included) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 2.5 x 2.2 x 3.5" (6.3 x 5.5 x 8.9 cm) | | Weight | 1.5 lb (0.6 kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.5 x 4.1 x 2.9" |
