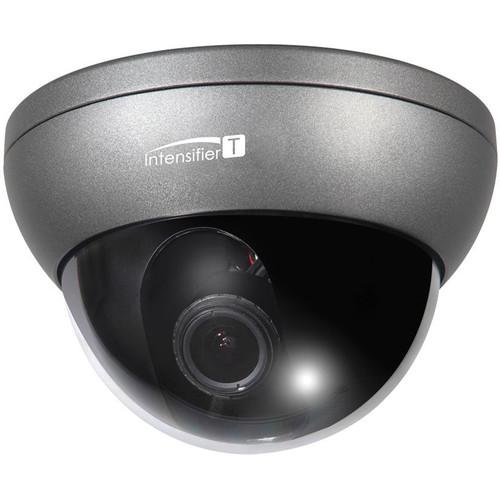

User Manual for Speco Technologies Intensifier T 2MP Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T 2MP Outdoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Snap on the included Chameleon cover and paint it to match the Intensifier T 2MP Outdoor Dome Camera from Speco Technologies to your indoor or outdoor decor. This camera features a 1/3" progressive scan CMOS sensor to capture high-quality 1080p video at up to 30 fps over standard coax cable, thanks to HD-TVI technology. Intensifier T technology provides this camera with low-light sensitivity without the use of IR LEDs. To make installation and maintenance easier, the camera has a 3-axis adjustment system and a defog function to reduce condensation around the lens and dome in varying weather conditions. The camera is enclosed in an IP67-rated enclosure for protection against dust and water. - Low-light performance Intensifier T technology
- HD-TVI technology delivers 1080p video over standard coax cable
- Heater circuitry and anti-moisture glass
- Additional 960H video output
- RS-485 port for zoom, focus, and OSD control
- IP67-rated for outdoor use
UPC: 030519019682 In the Box Speco Technologies Intensifier T 2MP Outdoor Dome Camera Video Test Connector with Power Jack Chameleon Cover Wrench Mounting Hardware Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T 2MP Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Speco Technologies Intensifier T 2MP Outdoor Dome Camera can be downloaded in PDF format at the link stated below.
Technical parametersSpeco Technologies HT7248TM Specs | Image Sensor | 2 MP 1/3" progressive scan Sony Exmor CMOS sensor | | Total Pixels | 2000 x 1121 (2.24 MP) | | Effective Pixels | 1984 x 1105 (2.19 MP) | | S/N Ratio | > 50 dB | | Resolution | 1920 x 1080 (1080p at 30 fps, 1080p at 25 fps), 1280 x 720 (720p at 60 fps, 720p at 50 fps) | | Video Output | 1.0 Vp-p composite, 75 Ohms
1.0 Vp-p TVI (transport video interface), 75 Ohms | | Minimum Illumination | 0.001 lux | | Lens | 2.8-10mm auto iris motorized | | Shutter Speed | Auto, manual (1/30 (1/25) to 1/30,000 s), flicker | | On Screen Display | Built-in | | Backlight Compensation | 0 | | HSBLC | 0 | | Wide Dynamic Range | On, off (low, medium, high) only for TVI output | | ACE | Off, low, medium, high | | Day/Night | Auto, color, B&W, external | | Smart IR | 0-20 | | White Balance | Auto, AWB, AWC-set, manual | | Sens-Up | 2-32x | | Motion Detection | On, off (4 areas) | | Digital Noise Reduction | 3D-DNR: Off, low, medium, high | | Defog | On, auto, manual, off | | Brightness | 0-20
Default: 10 | | Automatic Gain Control | 0-20 (level adjustable)
Default: 20 | | Privacy Masking | On, off (16 areas) | | Flip / Mirror | Mirror, v-flip | | Sharpness | 0-20 | | Defect Compensation | Auto detect | | Lens Shading Compensation | 0 | | Color Bar | On, off | | Output | NTSC/PAL selectable | | Language | English | | Power | 12 VDC and 24 VAC dual voltage operation (available separately) | | Power Consumption | 12 VDC: Heater On: 500 mA, Heater Off: 300 mA
24 VAC: Heater On: 195 mA, Heater Off: 130 mA | | RS-485 Support | PELCO-D, PELCO-P (only for CVBS Output) | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20-95% RH | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 20-95% RH | | IP Rating | IP67 | | Certifications | FCC, RoHS | | Signal | Maximum Distance: 1600' (488 m) | | Dimensions | 5.1 x 3.5" (13 x 8.8 cm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 4.6" |
