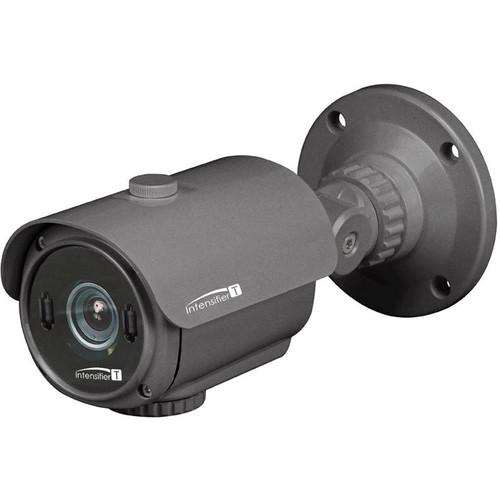

User Manual for Speco Technologies Intensifier T 2MP Outdoor HD-TVI Bullet Camera with 5-50mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T 2MP Outdoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The Intensifier T 2MP Outdoor HD-TVI Bullet Camera with 5-50 Lens from Speco Technologies has a 1/2.9" Sony CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Its 5-50mm lens can be adjusted to direct the field of view in an area of interest. Intensifier T technology and wide dynamic range help the camera produce clear images in low light without the need for additional light. The camera has a built-in heater and an anti-fog glass window to prevent condensation and moisture on the lens. - 1080p resolution over standard coax cable with HD-TVI technology
- Supports up to 1920 x 1080 at 30 fps
- 5-50mm varifocal lens can be positioned to monitor a specific area
- Enhanced low-light performance with Intensifier T technology
- Features additional analog output for 960H
- IP67-rated enclosure makes the camera suitable for outdoor use
UPC: 030519021647 In the Box Speco Technologies Intensifier T 2MP Outdoor HD-TVI Bullet Camera with 5-50mm Lens Video Test Connector with Power Jack Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T 2MP Outdoor HD-TVI Bullet Camera with 5-50mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTINT702T Specs | Image Sensor | Sony 2 MP 1/2.9" progressive scan CMOS sensor | | Focal Length | 5-50mm | | Lens Type | Varifocal, auto-iris | | Angle Adjustment | 3-axis | | Minimum Illumination | 0.001 lux at f/1.4 (sense-up 32x) | | Effective Pixels (H x V) | 1985 x 1105 | | Total Pixels (H x V) | 2001 x 1121 | | S/N Ratio | >50 dB | | Resolution | 1920 x 1080 at 25/30 fps, 1280 x 720 at 25/30/50/60 fps | | Video Output | 1.0 V p-p HD-TVI, 75 Ohms
1.0 V p-p composite, 75 Ohms | | Electronic Shutter Speed | Auto, manual (1/25-30 to 1/30,000 sec), flicker | | Wide Dynamic Range | On (low, middle, high), off | | Day/Night | Color, B&W, auto, external | | White Balance | Auto, AWB, AWC-SET, manual | | Brightness | 0 to 20 adjustable | | AGC | 0 to 20 adjustable | | Sense-Up | 2-32x adjustable | | Motion Detection | On, off (4 zones) | | Privacy Masking | On, off (16 zones) | | Flip / Mirror | On, off
Vertical Flip: On, off | | Sharpness | 0 to 20 adjustable | | Lens Shading Compensation | On, off | | Digital Noise Reduction | 3D-DNR (off, low, middle, high) | | Test Monitor Output | CVBS | | Communication | Up-the-coax (UTC) | | Heater | Built-in | | Power | 12 VDC or 24 VAC (available separately) | | Power Consumption | 12 VDC:
Heater On: 380 mA
Heater Off: 180 mA
24 VAC:
Heater On: 160 mA
Heater Off: 90 mA | | Cable Distance | Up to 1600' (488 m) | | Certifications | FCC, RoHS | | IP Rating | IP67 | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Maximum 95% RH | | Dimensions (D x H x W) | 3.9 x 3.9 x 8.3" (10 x 10 x 21 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.4 x 6.2 x 5.2" |
