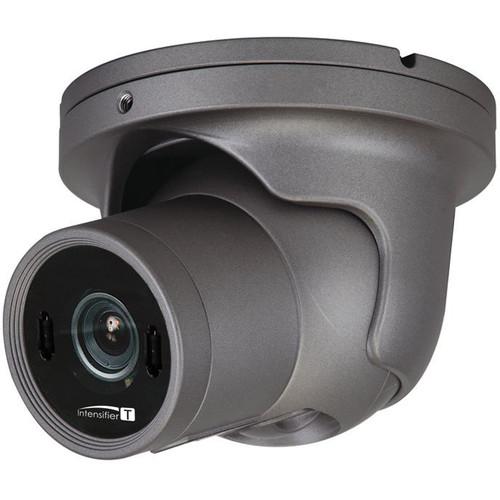

User Manual for Speco Technologies Intensifier T 2MP Outdoor Turret Camera with 3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T 2MP Outdoor
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Use coax cabling to connect the analog Intensifier T 2MP Outdoor Turret Camera with 3.6mm Fixed Lens from Speco to a DVR system. The camera uses a 1/3" CMOS image sensor to provide full resolution pictures at 30 fps. With a minimum illumination of 0.001 lux, which works in conjunction with Speco's Intensifier T technology, the camera can record clear imaging even in settings with virtually no light. The sense-up, day/night, and backlight compensation features assist in assuring that changing light levels won't affect the imaging leaving you with consistently clear footage. Though the camera's lighting settings are adjustable, the lighting settings for indoor, outdoor, low light, lobby, and elevator environments are preset for convenient and quick setup.
Customize the camera's recording to your specific needs by arranging for recording to start only when triggered by motion detection and by blocking off private areas from being recorded. Featuring anti-moisture glass around the lens and a vandal and tamper resistant IP67-rated enclosure, the camera will remain functional even in harsh outdoor weather environments. - Offers high resolution imaging passed through coaxial cables
- Intensify T technology amplifies existing light for use in low light environments
- On screen display operates through on-board control and UTC and offers detailed settings of features for adjusting the camera to specific needs
- DNR settings allows for cleaner images by removing unwanted noise
- Day/Night, backlight compensation, and sense-up settings allow for viewable images even in environments with changing light levels
- WDR ability provides for detailed pictures
- Adjustable white balance creates accurate color depiction
- Auto gain control adjusts for maintaining strong illumination
- Motion detection can be programmed for specific zones
- Privacy masking zones allow you to record only desired areas
- Camera offers on/off settings for mirroring and v-flip
- 3-axis rotation for wall or ceiling mounting
- Heater ciruitry and anti-moisture glass avoids condensation from gathering on the lens
UPC: 030519005012 In the Box Speco Technologies Intensifier T 2MP Outdoor Turret Camera with 3.6mm Fixed Lens Mounting and Installation Hardware Limited 5-Year Warranty Brochure PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T 2MP Outdoor Turret Camera with 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HTINT601T Specs | Image Sensor | 1/3" 2.0 MP Sony Exmor CMOS | | Lens | 3.6mm Fixed | | Resolution | 1920 x 1080 at 30fps
1280x720 at 60 fps | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Scanning | Progressive | | S/N Ratio | >50 dB | | Video Output | 1.0 V p-p / 75 Ohms | | Minimum Illumination | 0.001 lux | | Electronic Shutter | Auto / Manual (1/30 to 1/30,000 sec) / Flicker | | Wide Dynamic Range | On (low / middle / high) / Off | | Day/Night | Color / B&W / Auto / Ext | | White Balance | Auto / AWB / AWC-Set / Manual | | Brightness | 0 to 20 adjustable | | AGC | 0 to 20 adjustable | | Sense-Up | 2x to 32x adjustable | | Motion | Detection: On / Off (programmable 4 zones) | | Privacy Masking | On / Off (programmable 16 zones) | | Sharpness | 0 to 20 adjustable | | Test Monitor Output | CVBS | | Communication | Coaxial control | | Weather-Proof Rating | IP67 | | Power | 12 VDC, 24 VAC, dual voltage operation, (supply not included) | | Power Consumption | 12 VDC, 500 mA (max) / 24 VAC, 195 mA (max) | | Operating Temperature | Operating: -4 to 140ºF / -20 to 60°C | | Operating Humidity | 20 to 95% | | Dimensions | 1.8 x 1.5" / 4.7 x 3.8 cm | | Weight | 4.4 lb / 2.0 kg |
