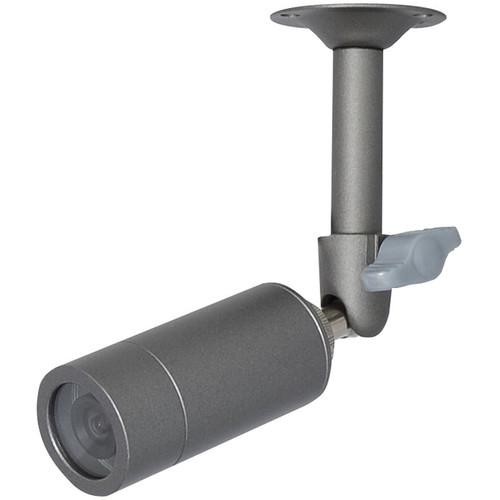

User Manual for Speco Technologies Intensifier T HINT637T 2MP Outdoor HD-TVI Mini Bullet Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T HINT637T 2MP
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T HINT637T 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray HINT637T from Speco Technologies uses a 1/3" progressive scan CMOS sensor and a 3.6mm fixed lens to transmit 1920 x 1080 resolution video at 30 fps. An IR cut filter enables day and night functionality. The camera supports an HD-TVI signal output. The UTC (Up-the-Coax) connection and a built-in joystick cable allows for OSD control of the camera.
This camera is housed in an IP66-rated enclosure that is suitable for outdoor use. A 3-axis mounting bracket is included for mounting on a wall or ceiling. - Intensifier technology enables the camera to produce clear images in varying lighting conditions
- Presets for different lighting scenarios include indoor, outdoor, low light, hallway, lobby, and elevator modes
- NTSC and PAL video systems
- 12 VDC power (power supply available separately)
- Full OSD Operation via UTC or built-in joystick cable
- Analog output for 960H resolution
- Day and night functionality
- Objects that reflect or absorb IR light sources pose no operational issues
- Signal distance up to 1600'
- Digital wide dynamic range
- Lens shading and dead pixel correction
- Motion detection for up to 4 areas
- Privacy masking for up to 4 areas
- White balance modes include ATW, AWC set, indoor, outdoor, manual, and AWB
- Backlight compensation (including highlight suppression BLC) and highlight compensation
- Mirror, vertical flip, and freeze support
- Lightweight at only 4 ounces
- Includes 3-axis mounting bracket for mounting on a ceiling or wall
UPC: 030519024419 In the Box Speco Technologies Intensifier T HINT637T 2MP Outdoor HD-TVI Mini Bullet Camera Mounting Bracket 3 x Mounting Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T HINT637T 2MP Outdoor HD-TVI Mini Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HINT637T Specs | Image Sensor | 2 MP, 1/3" progressive scan CMOS | | Effective Pixels (H x V) | 1984 x 1105 | | Total Pixels (H x V) | 2000 x 1121 | | Resolution | 1920 x 1080 at 30 fps | | Lens | 3.6mm fixed lens | | Minimum Illumination | 0.001 lux (with intensify on) | | Smart IR | Yes | | Day/Night | Auto, color, B&W, external | | Video Output | HD-TVI and additional 960H analog output | | Electronic Shutter | 1/30,000 to 1/30 seconds | | Scanning System | 2:1 interlaced | | Synchronization | Internal | | Communication | UTC (Up-the-Coax) | | OSD Control | Full OSD operation via UTC | | Signal Range | Up to 1600' / 488 m | | Output | 1.0 V p-p / 75 Ohms | | S/N Ratio | >50 dB | | Intensifier | Level adjustable | | Digital Noise Reduction (DNR) | 2D-DNR, 3D-DNR (high, middle, low, off) | | White Balance | ATW, AWC set, indoor, outdoor, manual, AWB | | Preset Modes | Indoor, outdoor, low light, hallway, lobby, and elevator | | Sharpness | Level adjustable | | Lens Shading Compensation | Yes | | Dead Pixel Compensation | Yes | | Monitor | CRT and LCD modes | | Motion Detection | Up to 4 areas | | Privacy Masking | Up to 4 areas | | Light Compensation | Backlight compensation (including HSBLC), highlight compensation | | Defog | Yes | | Digital Wide Dynamic (D-WDR) | Yes | | AGC (Automatic Gain Control) | Level adjustable | | Flip/Mirror | Vertical flip, mirror | | Freeze | Yes | | TV System | NTSC, PAL | | Power Supply | 12 VDC (power supply not included) | | Power Consumption | 200 mA | | Operating Temperature | 14 to 120°F / -10 to 49°C | | IP Rating | IP66 | | Certifications | FCC, RoHS | | Dimensions (Diam. x L) | 1.13 x 2.5" / 28.7 x 63.5 mm | | Weight | 4 oz / 113.4 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.0" |
